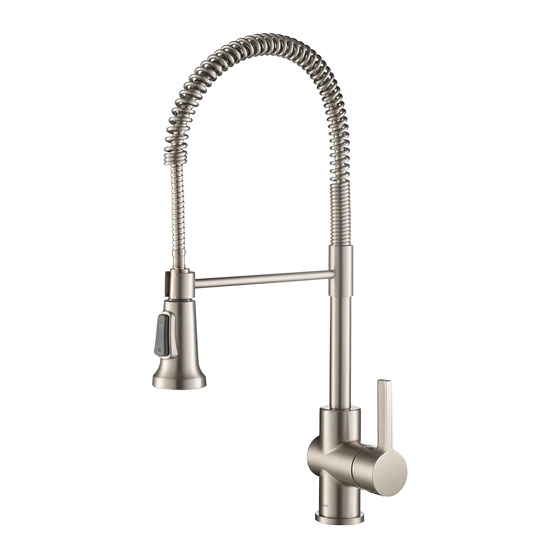

- Page 1 INSTALLATION GUIDE Britt™ Sensor Commercial Pull Down Kitchen Faucet KSF-1691 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2019 Kraus USA Inc. I REV. MAR 17, 2021...
- Page 2 Congratulations on the purchase of your new Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance, or have any problems with your product: DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com Have the model number available, and retain a copy of your receipt...
-
Page 3: Prior To Installation
Prior to Installation: • Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775- 0703 for a replacement • Turn o the hot and cold water lines at the angle stops and turn on the old faucet to release any built-up pressure •... - Page 4 Diagram and Parts List J2 J3 F. Weight J. Battery Pack A. Spray Head B. Faucet Body G. Weight Clip J1. Battery Pack C. Washers H. Quick Connector J2. Screw D. Mounting Nut I. Sensor Control Box J3. Anchor E. Screws K.
- Page 5 Faucet Dimension 10 5/8" 4 3/8" [268.9mm] [109.8mm] 8 3/8" [213.6mm] Ø2 1/8" [54.2mm] 3/8”-compression Installer Tip:...
- Page 6 Step 1: Installing the faucet Shut o the water supply. Insert faucet body (B) through the hole inthe sink. Step 2: Securing the faucet assembly Secure the faucet (B) to the countertop using the washers (C) and mounting nut (D) provided.
- Page 7 Step 3: Installing the sensor control box Install the data cable (1) to the control box connection (2). Ensure the arrows on the data cable and control box connection are aligned to one another to ensure proper installation. Ensure they are tightly connected by rmly pushing together.
-
Page 8: Step 6: Installing The Battery Pack
Step 5: Securing the faucet assembly Install the weight clip (G) at the point of the hose marking "weight here". Insert the weight (F) onto the weight clip (G) by sliding it down onto the weight clip (G). Step 6: Installing the battery pack To open the battery housing, squeeze the tabs (1) on the cover (2), then remove the cover (2). - Page 9 Step 7: Installing the battery pack Drill a hole in the wall using a 6mm (1/4 in.) diamater drill bit. Install the battery pack (J1) using the molly anchor (J3) and screw (J2) provided. Insert the battery pack cable (1) into the control box connection (2).
- Page 10 Step 9: Flush faucet Flushing and checking for leaks: After the installation is complete, unscrew and remove the spray head in order to ush the line. Turn on the water supply and allow both hot and cold water to run for at least one minute each. This ushes away any debris that could cause damage to internal parts.
-
Page 11: Replacement Parts
Replacement Parts Replacement Parts List Finish / Color Part # 1. Spray Head SFS, MB, SFACB* KP27195 2. Sprayer Washer KP27208 3. Inverter KP27242 BL, GR* 4. Spray Hose BLMB, GRSFS, KP27244 BLSFACB* 5. Sprayer Support Assembly SFS, MB, SFACB* KP27243 6. -
Page 12: Troubleshooting
Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: Problem 1: Water will not shut o when turning the handle to the OFF position. When you turn the handle to But when you turn the handle This indicates that the cartridge the full on position, the water... -
Page 13: Care And Maintenance
Problem 4: The sensor is not activating the water ow. When you turn the handle to However, when you move your Check whether the switch Hexagon Nut the full on position, the hand in front of the sensor, the button (1) is tighten, if it is water will turn on. - Page 14 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
- Page 15 Rico shipping charges may apply). International shipping fees are not included. Commercial Warranty Kraus extends the above warranty for a period of one (1) year to purchasers of products for industrial, commercial, and business use. All incidental or consequential damages are specifically excluded. No additional warranties, express or implied, are given, including but not limited to any implied warranty of merchantability or fitness for a particular purpose.
