QUI-1124
Version 3
April 2023
HiSorb
Agitator
Instruction for use
P
r
:
roduct
eference

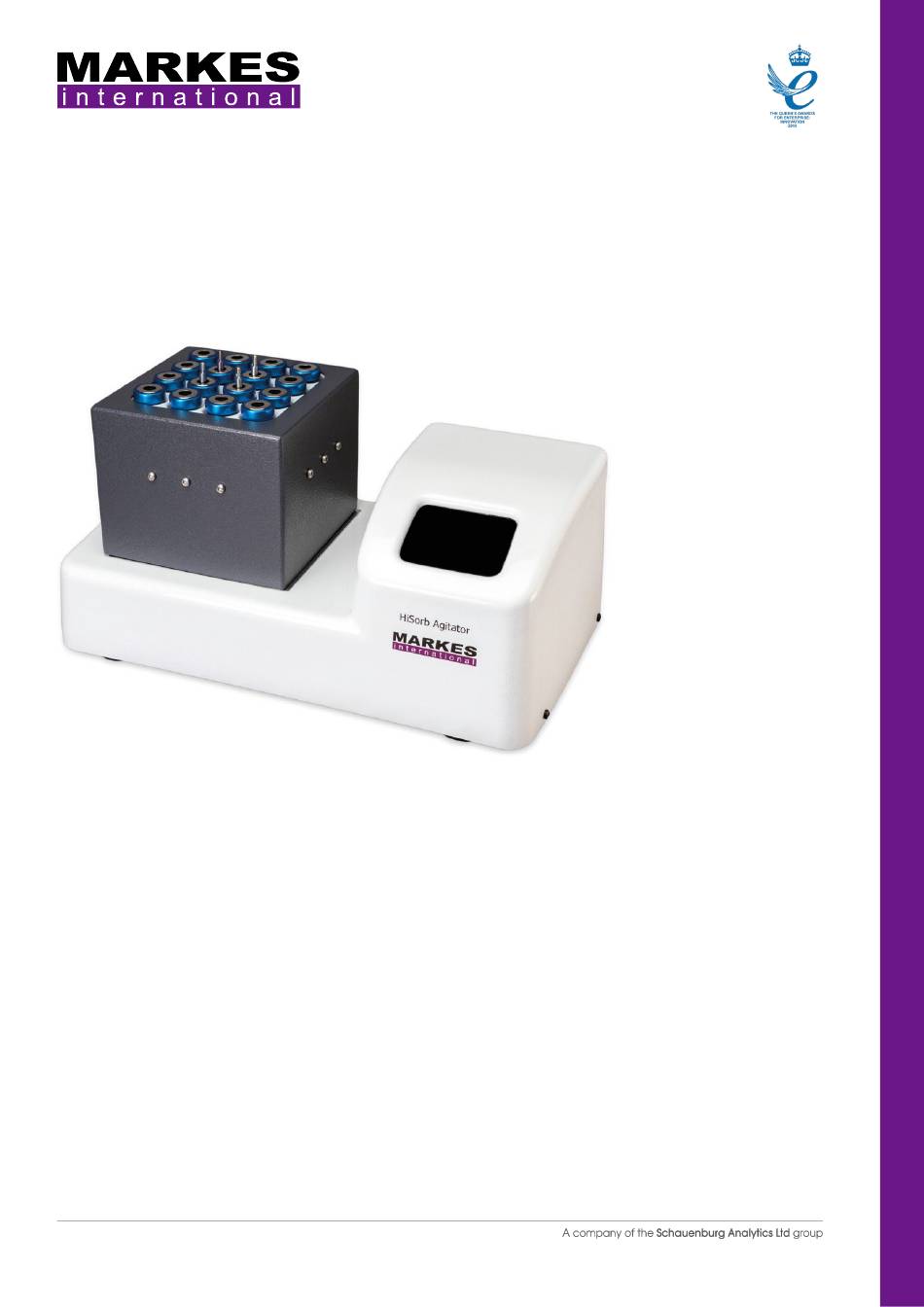

HiSorb Agitator, with 16 × 20 mL vial block
U-HSAG-20
www.markes.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HiSorb Agitator and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Markes International HiSorb Agitator

  • Page 1 QUI-1124 Version 3 April 2023 HiSorb Agitator ™ Instruction for use roduct eference HiSorb Agitator, with 16 × 20 mL vial block U-HSAG-20 www.markes.com...
  • Page 2: Table Of Contents

    3.6. Spillage cleaning ..................5 3.7. High temperatures ..................5 3.8. Agitation ....................6 4. Technical Specifications ................6 4.1. HiSorb Agitator ..................6 4.2. Power supply ..................... 6 4.3. PC ......................7 5. Environmental operating conditions ............7 5.1. Operating conditions ................7 5.2.
  • Page 3: Introduction

    QUI-1124 1. Introduction The HiSorb Agitator is a laboratory agitation unit for 20 mL, 10 mL or 2 mL vials, with control of speed, incubation temperatures and agitation time. The HiSorb Agitator can be used in conjunction with Markes’ HiSorb probe technology for sorptive sample extraction, and as a stand-alone unit for general laboratory mixing of liquids or solid suspensions.
  • Page 4: Notices

    QUI-1124 2. Notices 2.1. Warranty The HiSorb Agitator is designed for laboratory use only. It is not intended for use in domestic establishments or establishments directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes.
  • Page 5: Pressure

    QUI-1124 WARNING Before using hazardous substances, know the physical and chemical properties of the solvents you use, and read the hazard indications and information reported in the Material Safety Data Sheet (MSDS) supplied by the manufacturer referring to the relevant CAS (Chemical Abstract Service) number. Any safety requirements must be followed at all times.
  • Page 6: Agitation

    4. Technical Specifications 4.1. HiSorb Agitator The HiSorb Agitator does not require any additional space around its exterior. All movements are contained within the profile of the instrument, and there are no vents. However, the external power supply requires space (see below).
  • Page 7: Environmental Operating Conditions

    QUI-1124 4.3. PC No PC is required to operate the HiSorb Agitator. The USB port is for updates only. 5. Environmental operating conditions The performance of the agitator can be affected by variation in environmental conditions caused by heating, air conditioning systems, or drafts.
  • Page 8: Instrument Operation

    From this screen the method Agitation speed temperature, agitation parameters and time can Elapsed time be set, as described below. Method time Start temperature agitation timer Step [1]: HiSorb Agitator home screen. Page 8 www.markes.com...
  • Page 9: Activating The Agitator

    Before running the method, ensure that sufficient time has elapsed for the vial block to heat. NOTES If the HiSorb Agitator needs to be run at room Step [2]: ‘Set temperature’ screen. temperature, then ensure the temperature is set to <OFF>.
  • Page 10: Temperature Display

    QUI-1124 To stop the agitator at any time, press the icon. Pressing will resume the timer from this point, unless the time values have been modified. Step [2]: Home screen while running. 6.4. Temperature display The agitator status display includes a colour-coded indicator of temperature, to show if the temperature is at the required set point: Below the set point, the value will display in blue.
  • Page 11: Instrument Cleaning

    Before cleaning the agitator, ensure that it is disconnected from the mains power. CAUTION Incorrect cleaning/decontamination could result in damage to the instrument. NOTES If unsure of the correct procedure, please consult your local agent or Markes International for information. 7.2. Cleaning the touchscreen Clean the touchscreen with a lint-free cloth/wipe.
  • Page 12: Preventative Maintenance

    Remove the power cable from the rear of the HiSorb agitator. Sit the HiSorb agitator upside down on a bench top. Remove the 6 feet from the base plate of the HiSorb agitator by unscrewing the M5 x 10 mm pozi pan screws.
  • Page 13 Insert power cable to the back of the HiSorb agitator. [13] Turn the power on from the mains outlet. [14] Turn on the HiSorb agitator device (back switch) located at the back of the HiSorb agitator. [15] The HiSorb agitator is now ready for use. [16] Page 13 www.markes.com...
  • Page 14: Contact Details

    International shall not be liable for errors or for incidental or consequential damages in connection with the supply, use or performance of this document or of any information contained herein, unless a separate agreement between Markes International and the user should take precedence.
