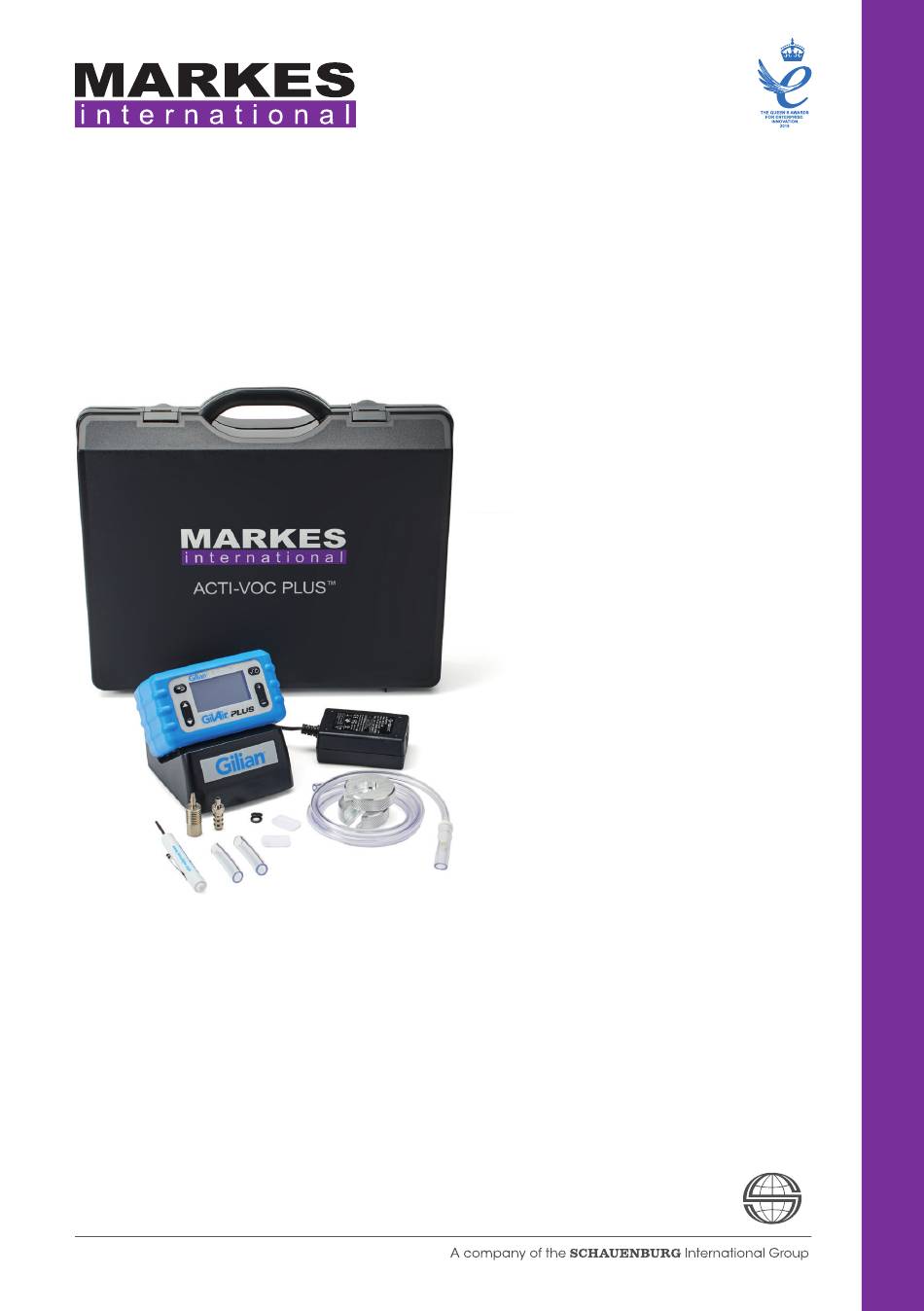

- Page 1 QUI-1164 Version 2 May 2021 ACTI-VOC PLUS ™ Instruction for use roduct eference ACTI-VOC PLUS fast-flow pump kit C-FFP-01 ™ www.markes.com...
-
Page 2: Table Of Contents
QUI-1164 Table of Content 1. Introduction 6. General operation Notices Sampling events Disclaimer Sensor calibration Important safety warnings 4 Automatic fault system Important information Display options Warranty 7. Maintenance Technical support Battery maintenance contact details Battery replacement Certifications Pump filter maintenance 21 EU declaration of Back-pressure adapter conformity... -
Page 3: Introduction
QUI-1164 Introduction ACTI-VOC PLUS (part no. C-FFP-01) is a robust fast-flow pump for sampling volatile organic compounds (VOCs) onto sorbent tubes for subsequent analysis by thermal desorption (TD). The ACTI-VOC PLUS is optimised for sampling onto TD tubes, automatically compensating for different impedances, ensuring that the desired constant-flow is achieved at all times. -
Page 4: Notices
QUI-1164 Notices This manual is prepared exclusively for Markes International ACTI-VOC PLUS fast-flow pump users for TD applications. The material within this manual is proprietary information and is to be used only to understand, operate, and maintain the instrument. By receiving this document, the recipient agrees that neither this... -
Page 5: Important Information
Hi/Lo control valve. The only user- replaceable parts are the battery pack and pump filter. (See Section 7.). Contact Markes International for service-related queries. Use only parts specified by Markes when performing maintenance WARNING procedures described in this manual. -
Page 6: Warranty
Markes trained engineer, or has been damaged, abused, or misused. Technical support contact details In the first instance please contact your supplier. If they are unable to resolve your query, please contact Markes International on the details below. Website: www.markes.com E-Mail: support@markes.com... -
Page 7: Certifications
QUI-1164 Certifications Intrinsic safety certifications become void by substitution of WARNING unauthorised components, repair or alteration. www.markes.com Page 7... -
Page 8: Eu Declaration Of Conformity
QUI-1164 EU declaration of conformity Page 8 www.markes.com... -
Page 9: Components
QUI-1164 Components ➊ ➋ ➐ ➎ ➑ ➍ ➌ ➏ ➒ Figure 1: ACTI-VOC PLUS components The fast-flow pump is supplied with the following: Fast-flow pump O-ring enables suitability for 6 mm o.d. sorbent tubes Charging dock with power supply and charger cord. -
Page 10: Familarisation
QUI-1164 Familarisation Preparation Ensure the ACTI-VOC PLUS is fully charged prior to first use. The charge status is displayed with coloured LEDs; a red LED indicates charging is in progress, whilst a green LED indicates the pump is charged and ready for use. During a top off charge, the green LED will flash. -
Page 11: Display Screens
QUI-1164 Display screens There are 5 available screen displays: Menu display The main menu allows the operating parameters of the pump to be set, by scrolling to the appropriate menu item. 1. Menu Display Idle display Shown when the pump is not conducting an event. -
Page 12: Calibration
QUI-1164 Calibration Calibration (flow rate verification) must be performed before sampling to ensure the pump is working efficiently, and when setting the flow rate. In constant-flow mode, you need only set the flow rate at the beginning of your sampling period with the use of a calibration tube –... - Page 13 QUI-1164 Attach the PTFE tubing to the pump inlet port and push your sorbent tube for calibration into the relevant adapter. The sampling arrow on the TD tube should be pointing towards the pump. Use the back-pressure adapter when setting flows of up to 100 mL/min; NOTES use the plastic tube adapter when setting flows in excess of 100 mL/min.
-
Page 14: Sampling
QUI-1164 Sampling Running a sample There are two run modes available on the pump: ■ Manual: the pump is manually turned on or off at a set point. Timed: the pump starts at a pre-set time and runs for a pre-set duration ■... -
Page 15: Personal/Workplace Monitoring
QUI-1164 Personal/workplace monitoring The following sampling workflows are recommended for TD applications in constant- flow mode, where the pump has been calibrated before use as per section 4. ■ Un-cap your pre-conditioned TD tube for sampling, using the CapLok tool provided. ■... -
Page 16: Using Constant-Pressure Mode
(not supplied with the pump – contact your local Markes International dealer for more information). Flows greater than 450 mL/min will not be achievable with all TD tube types. -
Page 17: General Operation
QUI-1164 General operation Sampling events The ACTI-VOC PLUS stores data for each sample event. The event data includes: sample time, flow, volume and backpressure and is stored into non-volatile memory. When the sampling event is stopped, the run data is available for review. The data from the last 16 events is available in the data review menu, which is accessible from the main menu. - Page 18 QUI-1164 pump will attempt an automatic re-start after 3 minutes. If the fault cause is corrected during the time period the pump will resume sampling. After ten restart attempts, the pump will end the sampling event. If fault retry is disabled, the sampling event will end when the pump stops after 30 seconds of operation in fault and no retry will be attempted.
-
Page 19: Display Options
QUI-1164 Display options The ACTI-VOC PLUS has multi-language capability. To select the display language, use the navigation keys to select 'Setup' from the main menu, select 'Display Options' from the submenu screen then select Language. English is the default language. Available languages include: English, Spanish, French, Dutch, German, Italian and Portuguese. -
Page 20: Battery Replacement
QUI-1164 ■ The battery pack has an estimated life of 300–500 charge-discharge cycles, depending on use and storage conditions. ■ Battery life can be extended by storing in cool conditions. High temperatures can cause accelerated aging. ■ To recondition the battery, put it on the charging dock for 12 hours. The dock will fast charge the battery and the additional trickle charge time will recondition it for maximum capacity. -
Page 21: Pump Filter Maintenance
QUI-1164 Be careful not to overtighten. NOTES Charge the battery. Pump filter maintenance The pump filter protects the pump from contamination by particulates if operated without an effective sampling filter. This filter is user replaceable and should be replaced if discoloured, clogged or obstructed in any way. Under normal operating conditions, the pump filter should be changed after approximately six months or 250 hours of operation, or when needed. -
Page 22: Back-Pressure Adapter O-Ring
QUI-1164 Back-pressure adapter O-ring The back-pressure adapter connects the TD tube to the pump using an O-ring seal. It is recommended that this O-ring is replaced every twelve months, or whenever it is noticeably damaged. The replacement process is as follows: You will require a replacement NOTES O-ring (part no. -
Page 23: Part List
QUI-1164 Part list Accessories Part number Description C-FLMTR Digital flowmeter, range 0.1–500 mL/min C-CPLOK CapLok tool Spare parts Contact Markes to discuss battery replacements and additional pump maintenance. Part number Description SERFFP-1002 Spare filter assembly, ACTI-VOC PLUS SERFFP-1003 Spare inlet filters, ACTI-VOC PLUS, pk 10 SERFFP-1004 Spare battery, ACTI-VOC PLUS SERZ-0351... -
Page 24: 10. Contact Details
For an instructional product video, please visit: watch the video chem.markes.com/ACTI-VOC-PLUS ACTI-VOC ™ , ACTI-VOC PLUS ™ , CapLok ™ and SafeLok ™ are trademarks of Markes International. Product images are for illustrative purposes only and may differ from the actual product supplied.
