Summary of Contents for Vallox 51 MV

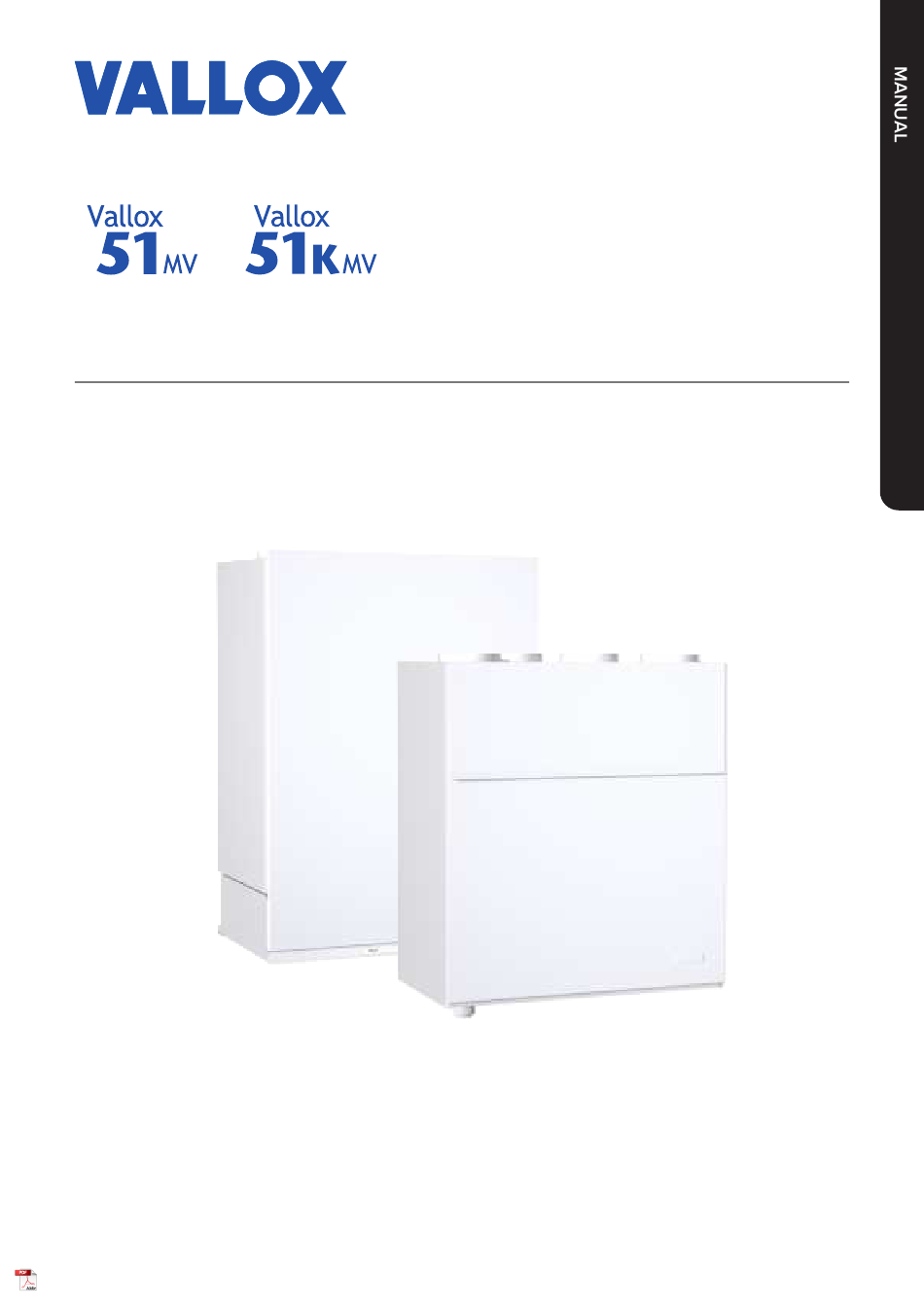

- Page 1 Model Document Vallox 51 MV D7597 Vallox 51K MV Valid from Type 15.10.2021 A3750 A3751 Updated 20.12.2021 Manual Ventilation units...
-
Page 2: Table Of Contents
Warranty ........... . . 3 Vallox 51 MV / Vallox 51K MV ....... .24 Intended use . -
Page 3: Safety
Structural or electronic modifications or changes made to the software INTENDED USE All Vallox ventilation units have been designed to provide appropriate and continuous ventilation so as to present no threat to health and to maintain structures in good condition. -
Page 4: Safety Signs Used In The Instructions
INSTALLATION OPTIONS • Vallox 51 MV and 51K MV can only be mounted on the wall. There are two unit models, left- (L) and right-handed (R). In the right-handed version, outdoor air comes into the unit from the right. -
Page 5: Ventilation Unit Control
Vallox 51 MV ventilation efficiency. Ventilation is controlled based on the need e.g. The Vallox 51 MV ventilation unit is controlled by using the through the cooker MyVallox Control control panel. Press the left button of the hood, ventilation control panel (see the Figure) repeatedly until the desired status control panel, or a is shown as the middle option on the display. -
Page 6: Vallox 51K Mv
Vallox 51K MV CAUTION • Neglecting the The Vallox 51K MV ventilation unit is controlled by using the cleaning of the Vallox Captura cooker hood that is connected to the unit. The grease filter can cooker hood is designed to be used above the cooker top, as cause a fire hazard. -
Page 7: Connecting The Ventilation Unit To The Cloud Service
If this kind of alarm is noticed before fire damage, it can be acknowledged by pressing any of the cooker hood buttons. © Vallox Oy - All rights reserved... -
Page 8: Main Parts
MAIN PARTS Vallox 51 MV R model in the figure. In the L model, the parts are mirrored. Post-heating resistor Extract air fan Control panel Supply air fan Internal humidity sensor Fine filter for supply air Internal carbon dioxide sensor... -
Page 9: Main Parts
Bypass damper of the HR cell Cooker hood Coarse filter for supply air Damper button Coarse filter for extract air Fan speed adjustment Post-heating resistor Light switch Control panel (Optional) Ceiling bushing for electric wires © Vallox Oy - All rights reserved... -
Page 10: Installation
MOUNTING ON THE CEILING Vallox 51 MV can be equipped with an optional ceiling mounting NOTE plate. To attach the ceiling mounting plate: A space of at least 330 mm must be reserved •... -
Page 11: Installing The Ventilation Unit To The Ceiling Mounting Plate
3. The door of the unit must be removed when the Vallox 51 ventilation unit is installed onto the wall mounting plate. 4. Lift the ventilation unit close to the ceiling mounting plate and feed the cables through the hole in the ceiling mounting plate on top of the ceiling. -
Page 12: External Electrical Connections
The Vallox Silent Klick siphon is installed in the bottom pool of 51 MV and 51K MV. Vallox 51 MV. The condensing water tube is led from the siphon Installation instructions e.g. to the siphon of the sink or to the floor drain. Alternatively,... -
Page 13: Vallox 51K Mv
Vallox 51K MV In Vallox 51K MV, an elbow is mounted on the bottom pool between the unit and the cooker hood. A condensing water tube is led from the elbow e.g. into the siphon of the sink or to the floor drain. The siphon must not be installed inside the cooker hood. -
Page 14: Installation Of The Vallox Captura Cooker Hood
INSTALLATION OF THE VALLOX CAUTION CAPTURA COOKER HOOD The minimum clearance between the bottom The Vallox Captura cooker hood is installed on the bottom of edge of the cooker hood and an electric Vallox 51K MV. stove is 426 mm. Remove the plug from the feedthrough seal of the condensing water tube of the cooker hood (Figure 1). -
Page 15: Measuring And Adjusting The Air Flows Of The Ventilation Unit
Adjustment: • Cover the required number of holes in the damper with the magnetic strip that is delivered with the cooker hood. © Vallox Oy - All rights reserved... -
Page 16: Vallox 51 Mv, 51K Mv
A Supply air Extract air C Cooker hood extract air D Supply air fan Extract air fan R model in the figures. In the L model, the order of the ducts is mirrored. Vallox 51 Vallox 51K... -
Page 17: Dimensions And Duct Outlets
2. Exhaust air flowing outdoors from the unit Vallox 51K MV 3. Supply air from the unit to the apartment 4. Extract air from the apartment to the unit L model A double socket in this area © Vallox Oy - All rights reserved... -
Page 18: Maintenance
REPLACING THE FILTERS ventilation unit remains in top condition, giving the best results. To The Vallox ventilation unit has three filters: select and order filter packages, please go to: filters.vallox.com • Coarse filter for supply air filters insects, heavy pollen and other relatively large foreign objects out of the outdoor air. -
Page 19: Cleaning The Heat Recovery Cell
To check this, Water must at all times be kept out of the pour some water into the pool. Clean as required. electrical system. © Vallox Oy - All rights reserved... -
Page 20: Cleaning The Fans
To clean the fans: blades carefully. Disconnect the ventilation unit from the mains electricity supply. It is recommended that 2. Undo the door screws to open the door of the Vallox ventilation the fans be cleaned by unit. a professional. -
Page 21: Vallox 51K Mv
NOTE! Ensure that the locking device points downwards. Removing the filter Mounting the filter Light The cooker hood has a long-lasting LED lighting module. If the light is not working, contact a servicing company. © Vallox Oy - All rights reserved... -
Page 22: Technical Specifications
TECHNICAL SPECIFICATIONS Product title Product number Vallox 51 MV R 4105064 Vallox 51 MV L 4105063 Air volumes Fans Supply air 47 dm³/s, 100 Pa Supply air 0.035 kW 0.35 A EC Extract air 51 dm³/s, 100 Pa Extract air 0.035 kW 0.35 A EC... -
Page 23: Air Flows And Sound Values
, dB , dB(A) Vallox 51 MV, Vallox 51K MV (no standard extraction through the hood in the kitchen) Sound pressure level coming through the envelope of the unit in the room in which it is installed (10m² sound absorption) -
Page 24: Internal Electrical Connection
INTERNAL ELECTRICAL CONNECTION Vallox 51 MV / Vallox 51K MV 1 2 3 4 5 AHS %RH CO 230V 50Hz 130°C 90°C Motherboard MB_A External Modbus A signal Supply air fan 1. Extract air fan tacho (WT) MB_B External Modbus B signal Extract air fan 2. -
Page 25: External Electrical Connection
POSITION OF THE DAMPER: DAMPER CLOSED = CONTACT OPEN 3 POTENTIAL FREE DAMPER OPEN = CONTACT CLOSED CONTACT DATA 24VDC/5A Vallox 51K MV / GUARD Valloplus 180K MV FUNCTION CONTACT DATA Connection card © Vallox Oy - All rights reserved... -
Page 26: External Electrical Connection
EXTERNAL ELECTRICAL CONNECTION Vallox 51 MV MyVallox MyVallox sensor transmitter Potential-free contact Potentiaalivapaa kärkitieto data 24VDC. Can be 24VDC. Voidaan ohjelmoida programmed to display MyVallox MyVallox MyVallox MyVallox information such as näyttämään esimerkiksi Ethernet connection and Ethernet -liitäntä ja Control... -
Page 27: External Electrical Connection
Local hardware Modbus A signal RM/I 24V relay input MyVallox CO 2 sensor 1.2W MyVallox VOC sensor RS_B Local hardware Modbus B signal RM/O 24V relay output External temperature sensor connector Voltage 24 VDC © Vallox Oy - All rights reserved... -
Page 28: External Electrical Connection For Controlling The Mlv Duct Radiator
EXTERNAL ELECTRICAL CONNECTION FOR CONTROLLING THE MLV DUCT RADIATOR 24 VDC relay/ Distribution contactor for board controlling the pump and solenoid valve +24VDC External temperature sensor NTC 4K7 MLV control Ethernet Plug connection connection 1.2m on top of the unit on top of the unit VENTILATION UNIT INTERNAL ELECTRICAL CONNECTION... -
Page 29: Duct Radiator Operation
The temperature of the external sensor can be read from the service menu: menu > service menu > unit information page 5 ”External sensor”. © Vallox Oy - All rights reserved... -
Page 30: Duct Radiator Operation Chart
External electrical junction box for the MV Feed from the distribution board Air extraction External NTC sensor for Vallox MV ventilation units 24 VDC relay/contactor for controlling the pump and the solenoid valve. Not included in Duct radiator (reverse connection) the delivery. -
Page 31: Exploded View And Parts List
4103424 Ceiling bushing for electric wires 950445 MyVallox VOC sensor Damper motor 930621 949112 Ceiling feed-through seal 950446 (optional) MyVallox humidity sensor Glass tube fuse 63mA Motherboard 949032-1 946149 952490 (optional) slow 5x20mm © Vallox Oy - All rights reserved... -
Page 32: Vallox 51K Mv
2131500 Fan chamber assembly, L 4105048 (optional) Damper motor 930621 MyVallox Control panel 949033 LED light 944030 Motherboard 949032-1 Siphon Vallox Silent Klick 3494701 Grease filter 2052310 Plastic screw 990151 Front panel assembly Connection card 949038 2131950 Cover plug 4105656... -
Page 33: Conformity Certificates
CONFORMITY CERTIFICATES... - Page 35 © Vallox Oy - All rights reserved...
- Page 36 Vallox Oy | Myllykyläntie 9-11 | 32200 LOIMAA | FINLAND © Vallox Oy - All rights reserved...
