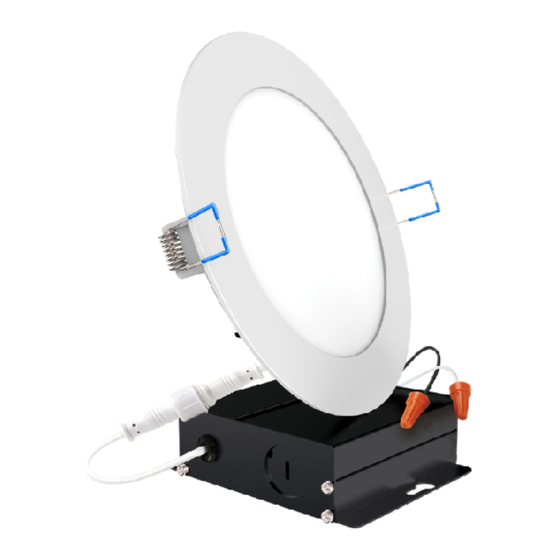

- Page 1 Lighting made better. User Manual 6” High Lumen Slim Downlight SKU: DL_SL6-HO support @sunco.com AMERICAN (844) 334-9938 COMPANY...
- Page 2 Whats in the Box? Slim Downlight Light Fixture Junction Box Installation Template Wire Nuts Get Your Gear Tape Hole Saw Ladder Wire Strippers...
- Page 3 Before You Start Safety Information To reduce the risk of fire, electric shock, or physical injury: • Turn off circuit breaker before installing this fixture. • Suitable for damp locations at temperature ranging from 4°F to 113°F. Not for use where directly exposed to water. •...
- Page 4 Installation Guide STEP 1 a. Turn off circuit breaker before installation. 6.33” b. Cut out 6.33” housing size on Installation Template, then tape onto ceiling in desired location. c. Cut ceiling hole using Installation Template as a guide. STEP 2 a.
- Page 5 Installation Guide (Cont.) STEP 4 Insert junction box through ceiling hole. a. New Construction Applications: Secure to studs, joists, or similar fixed structural units. Ceiling b. Remodel Applications: Do not require to secure to studs, joists, or similar fixed structural units. STEP 5 a.
-
Page 6: Product Details
Product Details Recommended Dimmers Brand Model LUTRON P-PKG1WB-WH LUTRON MACL-153M-WH LUTRON PD-6WCL-WH LUTRON AYCL-153P-WH LUTRON DVCL-153P-WH LEVITON D26HD-2RW KASA SMART HS220 KASA SMART HS220P3 Specifications Voltage 120V Average Lifetime 50,000 hrs Wattage Lumens 1200LM Wattage Equivalency 120W Moisture Rating Damp Beam Angle 90°... -
Page 7: Common Troubleshooting
Common Troubleshooting Feeling in the dark about an issue with your product? No If you still need some assistance, please feel free to contact worries! Our troubleshooting section is here to shed some light us with any questions. Our team of lighting experts are and provide you with easy-to-follow solutions for any problem. - Page 8 Light Distribution Angle -150 -120 AVERAGE BEAM ANGLE (50%): 112.3 DEG C0/180 116.1° C90/270 108.5° UNIT:cd Luminous Intensity Distribution 1 Lighting distribution angle refers to the spread of light An asymmetric lighting distribution angle, also known emitted from a light source. It is an important factor to as beam angle, creates a pattern that focuses light in a consider when selecting a fixture or bulb, as it affects the specific direction.
-
Page 9: Customer Support
It gets even better - scan the QR code for 2 extra years of protection! 30 Day Return Policy At Sunco we value our customers and stand by If you are not completely satisfied with your the quality and performance of our products. - Page 10 Lighting made better. support @sunco.com AMERICAN (844) 334-9938 COMPANY REV1.0...
