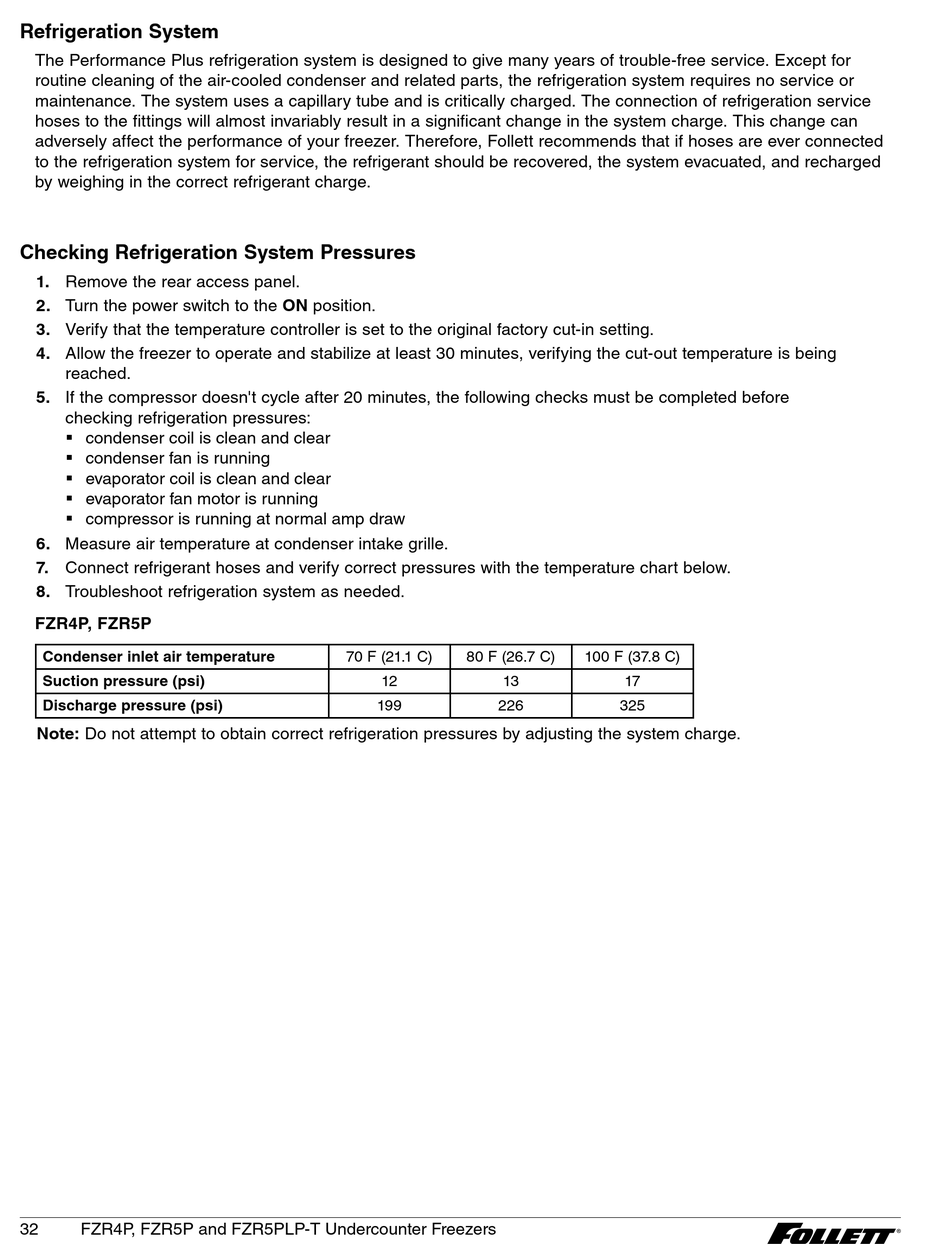

Refrigeration System
The Performance Plus refrigeration system is designed to give many years of trouble-free service. Except for
routine cleaning of the air-cooled condenser and related parts, the refrigeration system requires no service or
maintenance. The system uses a capillary tube and is critically charged. The connection of refrigeration service
hoses to the fittings will almost invariably result in a significant change in the system charge. This change can
adversely affect the performance of your freezer. Therefore, Follett recommends that if hoses are ever connected
to the refrigeration system for service, the refrigerant should be recovered, the system evacuated, and recharged
by weighing in the correct refrigerant charge.
Checking Refrigeration System Pressures
1. Remove the rear access panel.
2. Turn the power switch to the ON position.
3. Verify that the temperature controller is set to the original factory cut-in setting.
4. Allow the freezer to operate and stabilize at least 30 minutes, verifying the cut-out temperature is being
reached.
5. If the compressor doesn't cycle after 20 minutes, the following checks must be completed before
checking refrigeration pressures:
§ condenser coil is clean and clear
§ condenser fan is running
§ evaporator coil is clean and clear
§ evaporator fan motor is running
§ compressor is running at normal amp draw
6. Measure air temperature at condenser intake grille.
7. Connect refrigerant hoses and verify correct pressures with the temperature chart below.
8. Troubleshoot refrigeration system as needed.
FZR4P, FZR5P
Condenser inlet air temperature
Suction pressure (psi)
Discharge pressure (psi)
Note: Do not attempt to obtain correct refrigeration pressures by adjusting the system charge.
32
FZR4P, FZR5P and FZR5PLP-T Undercounter Freezers
70 F (21.1 C)
80 F (26.7 C)
12
13
199
226
100 F (37.8 C)
17
325
