Following installation, please forward this manual

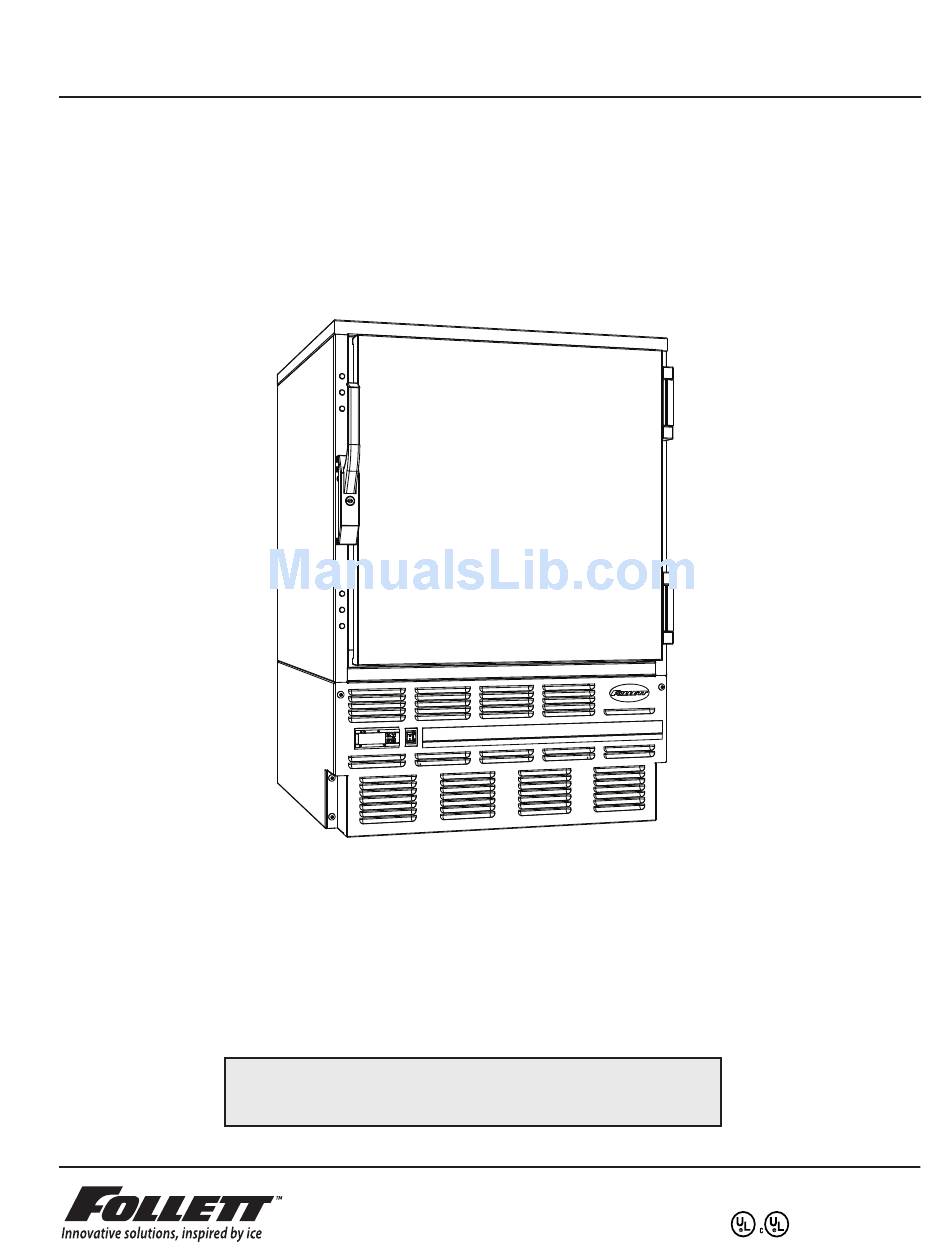

-30 C Undercounter Plasma Freezer
Installation, Operation and Service Manual
to the appropriate operations person.
801 Church Lane • Easton, PA 18040, USA
Toll free (800) 523-9361 • (610) 252-7301
Fax (610) 250-0696 • www.follettice.com
Serial numbers before C45184
00169581R02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FZR5-PL and is the answer not in the manual?

Questions and answers

Summary of Contents for Follett FZR5-PL

  • Page 1 -30 C Undercounter Plasma Freezer Order parts online Installation, Operation and Service Manual www.follettice.com Serial numbers before C45184 Following installation, please forward this manual to the appropriate operations person. 801 Church Lane • Easton, PA 18040, USA Toll free (800) 523-9361 • (610) 252-7301 Fax (610) 250-0696 •...
  • Page 3: Welcome To Follett

    After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If damage is found, notify the shipper immediately and contact Follett Corporation so that we can help in the fi ling of a claim, if necessary.
  • Page 4: Installation

    Installation Fig. 1 Installing legs – required 1. Remove legs from plastic bag packed inside freezer. 2. Tip freezer back and screw legs in all the way to stop (they will extend 1/8" below base of freezer). 3. Adjust legs as needed to level freezer in both directions. To access legs, remove the lower front panel.
  • Page 5 Reversing the door swing – optional Fig. 5 NOTICE When reinstalling latch and hinge screws, 242 blue Loctite* MUST be applied to screws. Torque screws to 25 in-lbs. 1. Remove screws and latch from refrigerator cabinet. (Fig. 5.1). 2. Use fl at screwdriver to carefully remove (do not scratch) hinge covers (Fig.
  • Page 6 Controller operation Fig. 8 refrigeration In normal operation the controller displays cabinet temperatures in evaporator system degrees C (default) or user-selected degrees F. energized defrost energized Rocker buttons to the right of the temperature display control all programming functions. - 35 The controller is pre-programmed with a -35 C (-31 F) set point which provides a compressor cut-in at -33 C (-27F) and cut-out at -35 C (-31 F).
  • Page 7: Controller Security

    1. Press UP/DOWN ARROW in middle until “PON” displays. 2. Programmer is now unlocked. Controller programming key degrees C (optional accessory) A controller programming key is available from Follett to provide fast and easy reprogramming of factory settings (part# 00173542). Programming key from a freezer (upload) 1.
  • Page 8: Operation

    Defrosting The FZR5-PL undercounter freezer controls frost accumulation on the evaporator through automatic timed defrost cycles. The defrost cycle is initiated by the temperature controller every 6 hours. Contacts 4 and 5 on the controller open and the refrigeration system is turned off. Contact 2 is closed and the defrost heater is energized. The LED under the melting snowfl ake icon on the controller will come on, and the temperature display will read: “DEF”...
  • Page 9: Annual Cleaning

    5. Adjust latch and or striker as necessary for proper door closure. Slide-out compressor tray Follett’s slide-out compressor tray allows technicians to partially slide the condensing unit from the freezer back without cutting refrigerant lines. 1. Remove rear panel (Fig. 12.1).
  • Page 10: Controller Replacement

    Removing drawers 1. Pull drawer forward to stop. 2. Lift drawer front to free front rollers from sides. 3. Still lifted, pull drawer forward to free back rollers from sides. Removing slides 1. Push slides all the way back. 2. Swing bottom of slide away from refrigerator wall and lift slide off of rollers. Controller replacement 1.
  • Page 11: Checking Refrigeration System Pressures

    Refrigeration system The FZR5-PL -30 C (-22 F) freezer refrigeration system is designed to give many years of trouble-free service. Except for routine cleaning of the air-cooled condenser and related parts, the refrigeration system requires no service or maintenance. The system uses a thermostatic expansion valve and is critically charged. Access fi ttings are provided for ease of service.
  • Page 12: Before Calling For Service

    2. Faulty heater safety switch. 2. Replace switch. 3. No power on terminal 2 of 3. Replace controller. controller (during defrost). If problems persist after following this basic troubleshooting guide, call Follett’s technical service group at (800) 523-9361 or (610) 252-7301.
  • Page 13: Replacement Parts

    Replacement parts Evaporator Reference # Description Part # Cover, evaporator (includes 00152892) 00155564 Fan guard 00152892 Fan blade 00152991 Bracket, fan motor 00152983 Fan motor, evaporator 00104919 Defrost heater 00152645 Drain pan, evaporator, FZR5 00162511 Evaporator 00151563 Heater safety switch 00153932 Expansion valve (includes 00106534) 00155671...
  • Page 14 Condensing Unit Reference # Description Part # Condensing unit 00153874 Condenser 00157339 Shroud, condenser 00157347 Condenser fan blade 00105007 Condenser fan motor 00104992 Fan motor bracket 00157412 Compressor 00157313 Starting capacitor 00104968 Filter drier 502724 Not shown Cap, starting capacitor 00105627 Not shown Starting relay...
  • Page 15 Hardware Reference # Description Part # Latch & striker includes screws 00105023 Latch screws, 3 per latch 00103507 Door (includes gasket - 21 3/8" x 21 3/8") 00105015 Hinge, each - 2 required, includes screws 00105031 Hinge screws, each - 6 per hinge 00105080 Gasket 00125732...
  • Page 16 Rear panel screws, each - 6 per panel 00105387 Condensate pan 00155622 Evaporator drain line, sold by the foot 203627 Not shown FZR5-PL programming key, degrees C 00173542 Not shown Power cord 00103903 Chart recorder related items Reference # Description...
