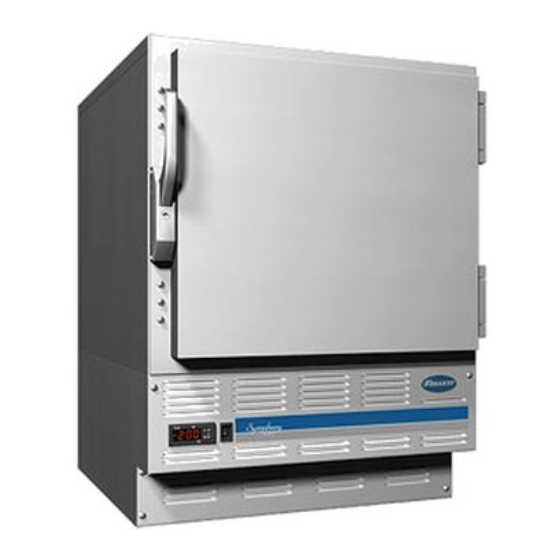

FZR Series
Undercounter Freezer
Installation, Operation and Service Manual
Serial numbers above D18495
Following installation, please forward this manual
to the appropriate operations person.
801 Church Lane • Easton, PA 18040, USA
Order parts online:
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
www.follettice.com
00925826R00
Advertisement
Table of Contents
Related Manuals for Follett FZR4-ADA
Summary of Contents for Follett FZR4-ADA
- Page 1 FZR Series Undercounter Freezer Installation, Operation and Service Manual Serial numbers above D18495 Following installation, please forward this manual to the appropriate operations person. 801 Church Lane • Easton, PA 18040, USA Order parts online: Toll free (877) 612-5086 • +1 (610) 252-7301 www.follettice.com www.follettice.com 00925826R00...
-
Page 2: Table Of Contents
Contents Welcome ..................3 Before You Begin . -
Page 3: Welcome
Before You Begin ––––––––––––––––––––––––––––––––––––––––––––––––––– After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If damage is found, immediately notify the shipper and contact Follett Corporation so that we can help in the filing of a claim, if necessary. -
Page 4: Installation
C display. The -25 C (-13 F) set point delivers a temperature range of -23 to -25 C (-9 to -13 F). Follett’s controller set point can be changed to deliver up to a -15 C (+5 F) temperature for applications where a lower temperature is not desired (i.e., ice cream). -
Page 5: Reversing The Door Swing - Optional
Reversing the Door Swing – Optional Fig. 4 CAUTION! When reinstalling latch and hinge screws, 242 blue Loctite* MUST be applied to screws. Torque screws to 25 in-lbs. 1. Remove screws and latch from refrigerator cabinet (Fig. 4). 2. Use flat screwdriver to carefully remove (do not scratch) hinge Fig. -
Page 6: Changing Temperature Display - Optional
You may not want the Follett temperature display when using a third-party temperature monitoring system with its own temperature display. You can put the Follett controller “to sleep” to avoid confusion. The compressor icon remains illuminated when the compressor is running. -
Page 7: Controller Operation
Controller Operation –––––––––––––––––––––––––––––––––––––––––––––––– Fig. 9 In normal operation, the controller displays cabinet temperatures in degrees C (default) or user-selected degrees F (see Changing refrigeration system energized Temperature Display - Optional on page 6). C temperatures are displayed evaporator fan energized to one decimal point, F temperatures are displayed to the nearest degree. -
Page 8: Controller Security
1. Simultaneously press and hold UP and DOWN ARROW buttons for 3 seconds, until “Pon” displays (flashes 3 times). 2. Programmer is now unlocked. Programming Refrigerator from a Program Key (download) A controller programming key is available from Follett to provide fast and easy reprogramming of factory settings. Frequency of Maximum Duration Temp... -
Page 9: Operation
+5 C (+41 F) or after 15 minutes, whichever came first. If you are experiencing problems with frost on any of these earlier units, please call Follett’s technical service department at (877) 612-5086 or +1 (610) 252-7301 for a programming key to update your unit to the most current program settings. -
Page 10: Cleaning
Cleaning –––––––––––––––––––––––––––––––––––––––––––––––––––––––––– CAUTION! Use only non-chlorine based cleaners. Cleaners containing chlorine can cause staining and pitting of the stainless steel. Interior Using a sponge or soft cloth, clean unit with a non-abrasive, non-chlorinated, all-purpose detergent. Exterior Wipe exterior with a soft cloth in the direction of grain as needed. Stainless steel polish may be used to enhance the finish of the unit. -
Page 11: Service
5. Adjust latch and or striker as necessary for proper door closure. Slide-out Compressor Tray Fig. 13 Follett’s slide-out compressor tray allows technicians to partially slide the condensing unit from the freezer back without cutting refrigerant lines. 1. Remove rear panel (Fig. 13.1). -
Page 12: Controller Replacement
Controller Replacement 1. Shut down unit by moving rocker switch on the lower front panel to the OFF position and removing power cord from receptacle. 2. Remove 6 screws from front panel and slide panel forward to access back of controller. 3. -
Page 13: Wiring Diagram
Wiring Diagram XR60CX 5A 16A 9 10 11 12 3 4 5 6 7 8 SUPPLY 120V 120VAC CONTROL FZR Undercounter Freezer... -
Page 14: Refrigeration System
This change can adversely affect the performance of your freezer. Therefore, Follett recommends that if hoses are ever connected to the refrigeration system for service, the refrigerant should be recovered, the system evacuated, and recharged by weighing in the correct refrigerant charge. -
Page 15: Freezer Troubleshooting Guide
3. Controller keeping refrigeration system ener- 3. Replace controller. gized. 1. Fan upgrade needed 1. If fan is not black in color contact Follett for a retrofit kit. 2. Condenser or evaporator coil needs cleaning. 2. Clean coils as needed. -
Page 16: Accessory Installation
Accessory Installation –––––––––––––––––––––––––––––––––––––––––––––– The following instruction sheets are available in the download section of the Follett website (www.follettice.com). Temperature Surveillance Module Accessory § Reference instruction #00168609 (packed with module) Temperature Alarm Accessory § Reference instruction #00112052 (packed with alarm) Pedestal Base §... -
Page 17: Replacement Parts
Replacement Parts ––––––––––––––––––––––––––––––––––––––––––––––––– Evaporator Reference Description Part # Cover, evaporator, FZR5 (includes 00152892) 00155564 Cover, evaporator, FZR4-ADA (includes 00152892) 00155572 Fan guard 00152892 Fan blade 00152991 Bracket, fan motor 00152983 Fan motor, evaporator 00104919 Evaporator, defrost heater 00923631 Drain pan, defrost heater assembly... -
Page 18: Condensing Unit
Condensing Unit Reference Description Part # Condensing unit 00153874 Condenser 00157339 Shroud, condenser 00157347 Condenser fan blade 00105007 Condenser fan motor 00104992 Fan motor bracket 00157412 Compressor 00157313 Starting capacitor 00104968 Filter drier 502724 Not shown Cap, starting capacitor 00105627 Not shown Starting relay 00157305... -
Page 19: Hardware
Latch screws, 3 per latch 00103507 Door, FZR5 (includes gasket - 21 3/8” x 21 3/8”) 00105015 Door, FZR4-ADA (includes gasket - 21 3/8” x 18 5/8”) 00113910 Hinge, each - 2 required, includes screws 00105031 Hinge screws, each - 6 per hinge... -
Page 20: Hardware And Electrical Components
Not shown Label, controller cover 00115071 Not shown Temperature probe 00115097 Follett is a registered trademark of Follett Corporation, registered in US. 801 Church Lane • Easton, PA 18040, USA 00925826R00 Toll free (877) 612-5086 • +1 (610) 252-7301 04/11 www.follettice.com...
