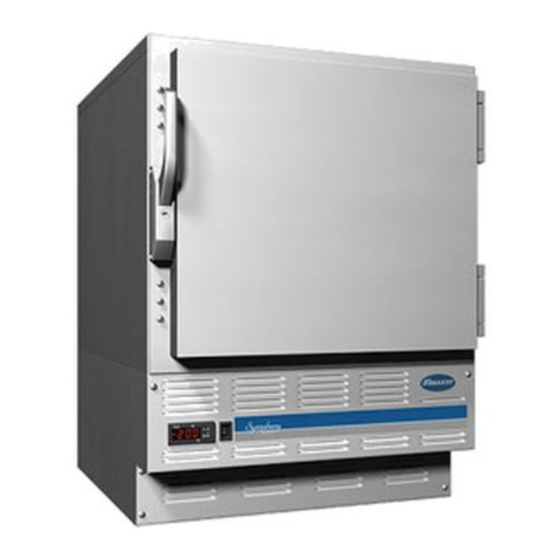

Undercounter freezer

Advertisement

Order parts online
www.follettice.com
Serial numbers below C83253 equipped with evaporator defrost heater retrofi t kit
Following installation, please forward this manual
Installation, Operation and Service Manual
to the appropriate operations person.
801 Church Lane • Easton, PA 18040, USA
Toll free (800) 523-9361 • (610) 252-7301
Fax (610) 250-0696 • www.follettice.com
Undercounter Freezer
Serial numbers C83253 to D18495
FZR Series
00939124R00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D18495 and is the answer not in the manual?

Questions and answers

Summary of Contents for Follett D18495

  • Page 1 Undercounter Freezer Installation, Operation and Service Manual Order parts online www.follettice.com Serial numbers C83253 to D18495 Serial numbers below C83253 equipped with evaporator defrost heater retrofi t kit Following installation, please forward this manual to the appropriate operations person. 801 Church Lane • Easton, PA 18040, USA Toll free (800) 523-9361 •...
  • Page 2: Table Of Contents

    3. Follett receives the equipment at the factory in Easton, PA within 30 days after issuance of the return authorization number. 4. The equipment must be returned in Follett packaging. If the packaging has been damaged or discarded, Follett will forward, at the customer’s expense, new packaging.
  • Page 3: Specifi Cations

    After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If damage is found, notify the shipper immediately and contact Follett Corporation so that we can help in the fi ling of a claim, if necessary.
  • Page 4: Installation

    C display. The -25 C (-13 F) set point delivers a temperature range of -23 to -25 C (-9 to -13 F). Follett’s controller set point can be changed to deliver up to a -15 C (+5 F) temperature for applications where a lower temperature is not desired (i.e. ice cream).
  • Page 5: Reversing The Door Swing - Optional

    Reversing the door swing – optional Fig. 4 NOTICE When reinstalling latch and hinge screws, 242 blue Loctite* MUST be applied to screws. Torque screws to 25 in-lbs. Remove screws and latch from refrigerator cabinet (Fig. 4.1). Fig. 5 2. Use fl at screwdriver to carefully remove (do not scratch) hinge covers (Fig.
  • Page 6: Controller Operation

    Controller operation In normal operation the controller displays cabinet temperatures Fig. 7 in degrees C (default). Degrees F can be uploaded from controller programming key - “hot key” (see page 7). Degrees C temperatures are refrigeration evaporator system displayed to 1 decimal point. energized energized Up/down/set membrane switches at right and left of the temperature...
  • Page 7: Controller Security

    Press UP and DOWN ARROW buttons together for 3 seconds until “Pon” displays (will fl ash 3 times). 2. Programmer is now unlocked. Controller programming key - “hot key” A controller programming key is available from Follett to provide fast and easy reprogramming of factory settings. Maximum Frequency of...
  • Page 8: Operation

    +5 C (+41 F) or after 15 minutes, whichever came fi rst. If you are experiencing problems with frost on any of these earlier units, please call Follett’s technical service department at (800) 523-9361 or (610) 252-7301 for a programming key to update your unit to the most current program settings.
  • Page 9: Cleaning

    Cleaning CAUTION • Use only non-chlorine based cleaners. Cleaners containing chlorine can cause staining and pitting of the stainless steel. Interior Using a sponge or soft cloth, clean unit with a non-abrasive, non-chlorinated, all-purpose detergent. Exterior Wipe exterior with a soft cloth in the direction of grain as needed. Stainless steel polish may be used to enhance the fi nish of the unit.
  • Page 10: Service

    5. Adjust latch and or striker as necessary for proper door closure. Slide-out compressor tray Fig. 10 Follett’s slide-out compressor tray allows technicians to partially slide the condensing unit from the freezer back without cutting refrigerant lines. Remove rear panel (Fig. 10.1).
  • Page 11: Controller Replacement

    Controller replacement Disconnect power to unit. a. Push front panel rocker switch to OFF position. b. Disconnect power cord. 2. Remove 6 screws from front panel and slide panel forward to access back of controller. 3. Disconnect front panel and wiring harness from freezer at the 3, 4, and 5 pin connectors and door heater connector to simplify replacement.
  • Page 12: Refrigeration System

    This change can adversely affect the performance of your freezer. Therefore, Follett recommends that if hoses are ever connected to the refrigeration system for service, the refrigerant should be recovered, the system evacuated, and recharged by weighing in the correct refrigerant charge.
  • Page 13: Freezer Troubleshooting Guide

    (during defrost). Defrost settings may require change for Call Follett’s technical service specifi c applications. department. If problems persist after following this basic troubleshooting guide, call Follett’s technical service group at (800) 523-9361 or (610) 252-7301 FZR Series 00939124R00 Service...
  • Page 14: Accessory Installation

    • Reference instruction# 00112052 (packed with alarm) Pedestal base • Reference instruction# 00192534 (packed with base) Stacking kit • Reference instruction# 00192526 (packed with stacking kit) These instruction sheets are also available in the download section of the Follett website (www.follettice.com). Accessory Installation FZR Series 00939124R00...
  • Page 15: Replacement Parts

    Replacement parts Evaporator Reference Description Part # Cover, evaporator, FZR5 (includes 00152892) 00155564 Cover, evaporator, FZR4-ADA (includes 00152892) 00155572 Fan guard 00152892 Fan blade 00152991 Bracket, fan motor 00152983 Fan motor, evaporator 00104919 Evaporator, defrost heater (above Serial # xxxx) 00923631 Evaporator, defrost heater (below Serial # xxxx equipped with retrofi t kit) 00923623...
  • Page 16: Condensing Unit

    Condensing unit Reference Description Part # Condensing unit 00153874 Condenser 00157339 Shroud, condenser 00157347 Condenser fan blade 00105007 Condenser fan motor 00104992 Fan motor bracket 00157412 Compressor 00157313 Starting capacitor 00104968 Filter drier 502724 Not shown Cap, starting capacitor 00105627 Not shown Starting relay 00157305...
  • Page 17: Hardware

    Hardware Reference Description Part # Latch & striker includes screws 00105023 Latch screws, 3 per latch 00103507 Door, FZR5 (includes gasket - 21 3/8” x 21 3/8”) 00105015 Door, FZR4-ADA (includes gasket - 21 3/8” x 18 5/8”) 00113910 Hinge, each - 2 required, includes screws 00105031 Hinge screws, each - 6 per hinge 00105080...
  • Page 18: Hardware & Electrical Components

    Hardware & electrical components Reference Description Part # Temperature controller 00900092 Not shown Temperature probes & harness 00155705 Power switch 00114371 Front panel (includes 00114371 and 00105379) 00157669 Front panel screws, each - 6 per panel 00105379 Not shown Rear panel, includes screws 00130161 Not shown Rear panel screws, each - 6 per panel...
  • Page 19 FZR Series 00939124R00 Installation...
  • Page 20 Follett reserves the right to change specifi cations at any time without obligation. Certifi cations may vary depending on country of origin. 801 Church Lane • Easton, PA 18040, USA 00939124R00 Toll free (800) 523-9361 • (610) 252-7301 09/09 Fax (610) 250-0696 • www.follettice.com...
