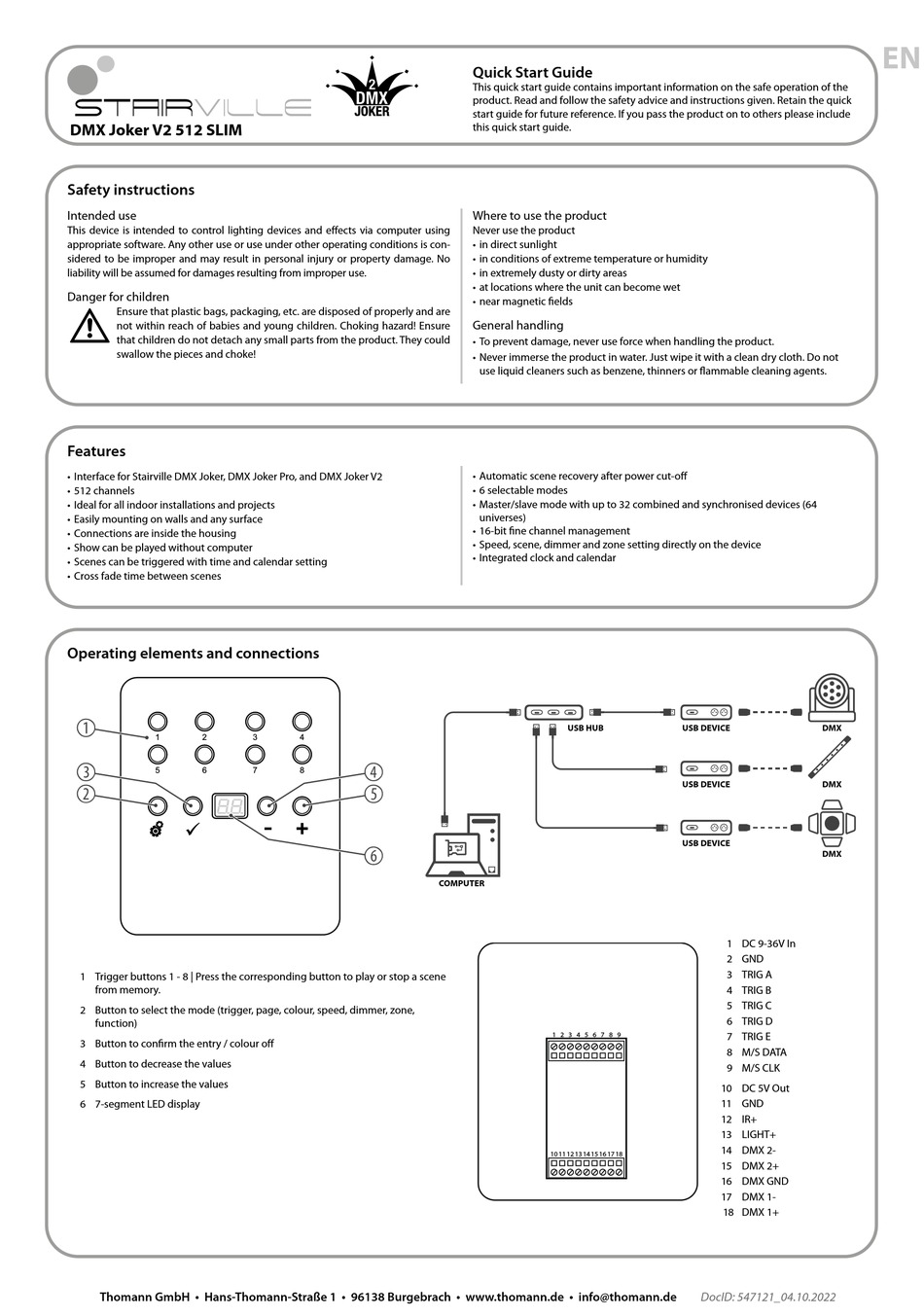

Stairville DMX Joker V2 512 SLIM Quick Start Manual

DMX Joker V2 512 SLIM

Safety instructions

Intended use
This device is intended to control lighting devices and effects via computer using
appropriate software. Any other use or use under other operating conditions is con-
sidered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are
not within reach of babies and young children. Choking hazard! Ensure
that children do not detach any small parts from the product. They could
swallow the pieces and choke!

Features

• Interface for Stairville DMX Joker, DMX Joker Pro, and DMX Joker V2
• 512 channels
• Ideal for all indoor installations and projects
• Easily mounting on walls and any surface
• Connections are inside the housing
• Show can be played without computer
• Scenes can be triggered with time and calendar setting
• Cross fade time between scenes

Operating elements and connections

ö
1 2
$
5 6
#
1 Trigger buttons 1 - 8 | Press the corresponding button to play or stop a scene
from memory.
2 Button to select the mode (trigger, page, colour, speed, dimmer, zone,
function)
3 Button to confirm the entry / colour off
4 Button to decrease the values
5 Button to increase the values
6 7-segment LED display
Thomann GmbH • Hans-Thomann-Straße 1 • 96138 Burgebrach • www.thomann.de • info@thomann.de
3 4
%
7 8
&
'
Quick Start Guide
This quick start guide contains important information on the safe operation of the
product. Read and follow the safety advice and instructions given. Retain the quick
start guide for future reference. If you pass the product on to others please include
this quick start guide.
Where to use the product
Never use the product
• in direct sunlight
• in conditions of extreme temperature or humidity
• in extremely dusty or dirty areas
• at locations where the unit can become wet
• near magnetic fields
General handling
• To prevent damage, never use force when handling the product.
• Never immerse the product in water. Just wipe it with a clean dry cloth. Do not
use liquid cleaners such as benzene, thinners or flammable cleaning agents.
• Automatic scene recovery after power cut-off
• 6 selectable modes
• Master/slave mode with up to 32 combined and synchronised devices (64
universes)
• 16-bit fine channel management
• Speed, scene, dimmer and zone setting directly on the device
• Integrated clock and calendar
USB HUB
COMPUTER
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18
USB DEVICE DMX
USB DEVICE DMX
USB DEVICE
DMX
1 DC 9-36V In
2 GND
3 TRIG A
4 TRIG B
5 TRIG C
6 TRIG D
7 TRIG E
8 M/S DATA
9 M/S CLK
10 DC 5V Out
11 GND
12 IR+
13 LIGHT+
14 DMX 2-
15 DMX 2+
16 DMX GND
17 DMX 1-
18 DMX 1+
DocID: 547121_04.10.2022
EN
