Table of Contents

F3SJ-A
Ordering information
Safety Light Curtain
Application
Detection capability
Finger protection
Dia. 14 mm
Hand/arm protection
Dia. 30 mm
Safety Light Curtain Model List
F3SJ-A14 Series (9 mm gap), F3SJ-A14 TS Series (9 mm gap)
Number of Beams
Protective Height (mm)
26
245
28
263
34
317
42
389
50
461
60
551
68
623
76
695
80
731
88
803
96
875
108
983
116
1,055
124
1,127
132
1,199
140
1,271
*1. The suffix "-TS" is attached to the model number of models with fixed auto reset.
(Only for PNP output)
*2. Protective Height (mm) = Total sensor length
Beam gap
9 mm
25 mm
*1
*2
Order code
*1
PNP Output
F3SJ-A0245P14
F3SJ-A0263P14
F3SJ-A0317P14
F3SJ-A0389P14
F3SJ-A0461P14
F3SJ-A0551P14
F3SJ-A0623P14
F3SJ-A0695P14
F3SJ-A0731P14
F3SJ-A0803P14
F3SJ-A0875P14
F3SJ-A0983P14
F3SJ-A1055P14
F3SJ-A1127P14
F3SJ-A1199P14
F3SJ-A1271P14

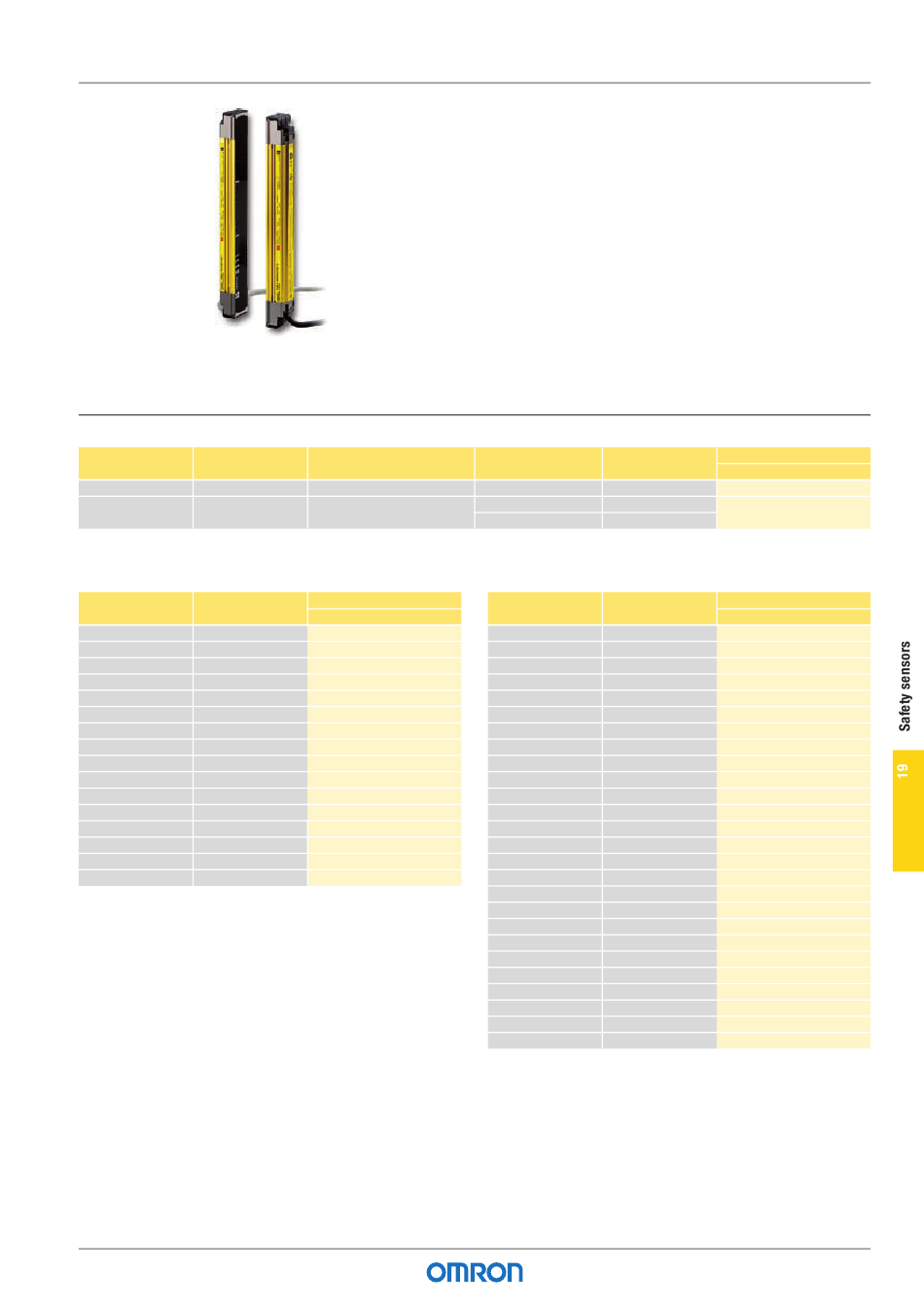

Small housing safety light curtain
The F3SJ_A - family is a type 4 safety light curtain with a optical resolution of 14 mm
and 30 mm. An operating range of up to 9 m and protective heights up to 2,495 mm
are provided with no dead zone.
• Detection heigth = sensor height
• Muting and blanking function available
• LED bar for easy alignment and diagnosis
• Type 4 sensor complying with EN 61496-1 and up to
PLe according EN ISO 13849-1
Operating range
Protective height (mm)
0.2 to 9 m
245 to 1,631
0.2 to 9 m
245 to 1,620
0.2 to 7 m
1,745 to 2,495
F3SJ-A30 Series (25 mm gap)
Number of Beams
Protective Height (mm)
10
245
12
295
16
395
19
470
21
520
22
545
23
570
25
620
29
720
32
795
35
870
37
920
38
945
41
1,020
44
1,095
45
1,120
48
1,195
51
1,270
56
1,395
65
1,620
70
1,745
75
1,870
80
1,995
90
2,245
95
2,370
100
2,495
*1
Protective Height (mm) = Total sensor length
Safety sensors
Order code
PNP output
F3SJ-A____P14
F3SJ-A____P30
*1
Order code
PNP Output
F3SJ-A0245P30
F3SJ-A0295P30
F3SJ-A0395P30
F3SJ-A0470P30
F3SJ-A0520P30
F3SJ-A0545P30
F3SJ-A0570P30
F3SJ-A0620P30
F3SJ-A0720P30
F3SJ-A0795P30
F3SJ-A0870P30
F3SJ-A0920P30
F3SJ-A0945P30
F3SJ-A1020P30
F3SJ-A1095P30
F3SJ-A1120P30
F3SJ-A1195P30
F3SJ-A1270P30
F3SJ-A1395P30
F3SJ-A1620P30
F3SJ-A1745P30
F3SJ-A1870P30
F3SJ-A1995P30
F3SJ-A2245P30
F3SJ-A2370P30
F3SJ-A2495P30
439
