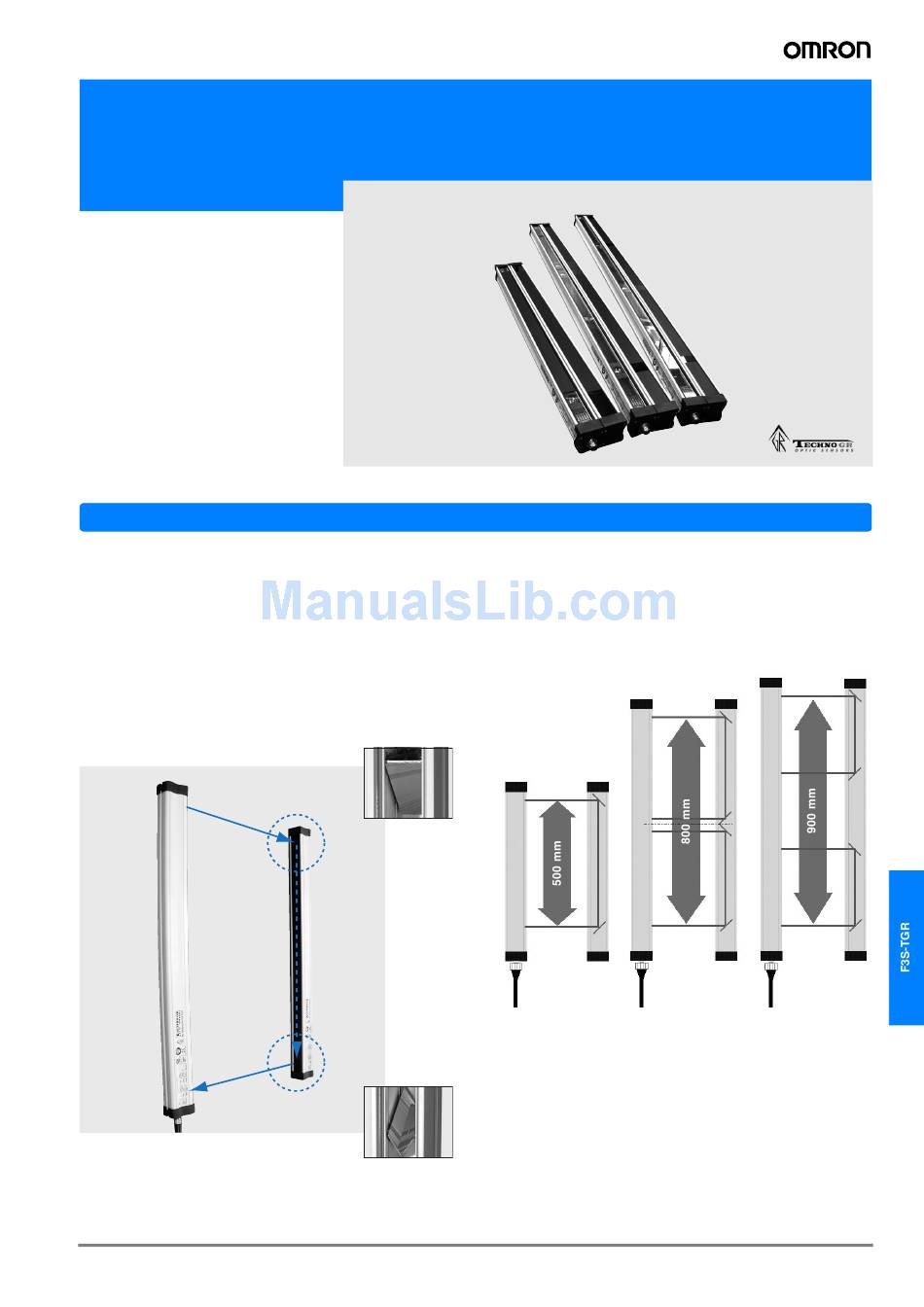

Safety sensor for Palletisers
F3S-TGR-SB@C series
For Palletiser
F3S-TGR-SB@C series has been developed especially for
Palletisers and wrapping machine access protection applica-
tions.
Active - Passive system and Plug and play
By using a mirror system we can achieve an active - passive
multi beam system. This active passive system will improve
installation time and reduce costs.
F3S-TGR-SB@C series
Features
3 Different types available
We provide 3 different Types as following:
• 2 beam Type (beam pitch 500 mm)
• 3 beam Type (beam pitch 400 mm)
• 4 beam Type (beam pitch 300 mm)
Muting functions are integrated
Following Muting functions are integrated:
• Muting sensor inputs
• Muting Lamp output
• Override input (120 second max)
• Test / Reset input
• Interlock function and Test Reset input
G-49
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Omron F3S-TGR-SB
Summary of Contents for Omron F3S-TGR-SB
- Page 1 • 4 beam Type (beam pitch 300 mm) Active - Passive system and Plug and play By using a mirror system we can achieve an active - passive multi beam system. This active passive system will improve installation time and reduce costs.
- Page 2 *MTL has a special software inside of F3S-TGR-SB@C which works to finalize a Muting function. Mechanical Guard Muting Sensors Recommendation It is recommended to use the E3Z or E3G as muting sensor. Please refer to the E3Z datasheet Cat.No. E701-E2-Cat04-01 and the E3G datasheet Cat.No. E278-E2-Cat04-03. SOLUTION 1: Object Gaps...
-
Page 3: List Of Models
F3S-TGR-SB2-K3C-800(MTL)* 0.5 to 5 m F3S-TGR-SB2-K4C-900(MTL)* *. If you want to have a ONE WAY direction Type, (see Page D-26) Please add the MTL behind of Model Name. Ex. F3S-TGR-SB4-K2C-500MTL F3S-TGR-SB4-K@C Mirror Reflection Type (Type 4) Shape Number of optical... - Page 4 Cable connection Specification Connection Applicable cable Model direction method diameter Straight XS2G-D4S5 DC only 4pin Plug Screw-on 3 dia. (3 to 4 dia.) Right angle XS2G-D4S6 Muting Lamp Appearance Specification Model 24 V DC F39-A11 Bulb for Maintenance Appearance Specification...
-
Page 5: Rating And Performance
Mounting fixture x 4 Applicable standards EN61496-1; 1997 prEN61496-2; 1997 *. If you want to have a ONE WAY direction Type, (see Page D-26) Please add the MTL behind of Model Name. Ex. F3S-TGR-SB4-K2C-500MTL Muting Connecting Box F3S-TGR-SB-CMB@ Item Model... - Page 6 Item Model F39-TGR-SB-CMB@ Applicable standards 93/68/EEC DIN V VDE 0801:1990 and am.A1:1994 EN 50081-2:1993 EN 55022:1998 Dimensions F3S-TGR-SB-K@C-@@@ with Mounting Brackets 47.5 37.7 Model F3S-TGR-SB@-K2C500 614 mm 500 mm 500 mm F3S-TGR-SB@-K3C800 914 mm 800 mm 400 mm F3S-TGR-SB@-K4C900 1,014 mm...
- Page 7 F39-TGR-SB-CMB1 Muting connection box Mounting bracket (Common bracket for F3S-TGR-SB@-K@C and F39-TGR-SB-CMB@ Connector Plug Assemblies, Screw-on Type XS2G-D4S5 M12 x 1 58.7 20 dia. 14.9 dia. 14 dia. XS2G-D4S6 M12 x 1 39.7 20 dia. 14.9 dia. 39.6 14 dia.
- Page 8 MIA : Muting input A MIB : Muting input B ML : Muting Lamp 0Vdc In case of Cat 4 (EN954-1), OSSD1/2 must be connected Safety Relay Unit (G9SA, G9SB-301B etc.) with feedback monitor Pin reference Front View Pin No.
- Page 9 M12 5pin connector (Female) 0 Vdc Blue Muting Lamp (0 Vdc) Muting Sensor B1 M12 5pin connector (Female) 2), 3) 4), 5) Wiring of Muting Sensor connection Front View Pin No. Signal Name Wire Color Muting Sensor A1 +24 Vdc...
- Page 10 Muting Sensor Brown(Common) ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. Cat. No. E19E-EN-01 In the interest of product improvement, specifications are subject to change without notice.
