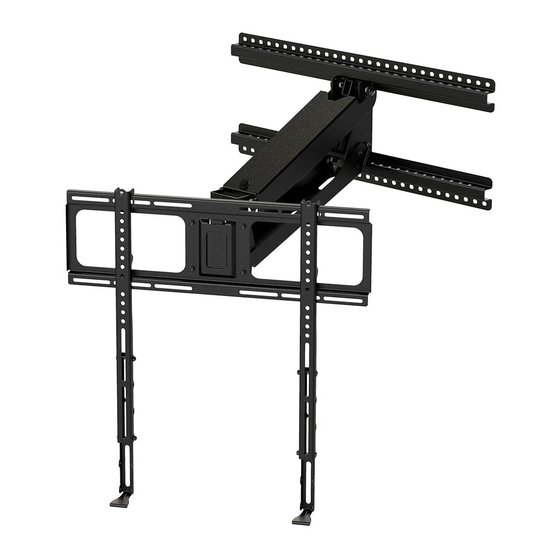

MM340 Installation Instructions
IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS
Do not unpack any contents until you verify all requirements on PAGE 4.
If you have any questions, visit MantelMount.com or call
WARNING!
!
This product contains small parts that can be
a choking hazard. Do not let children play
with any of these small parts! Keep children
away from the work area during installation.
!
CAUTION:
This product is intended to be installed by
professional installation contractors, or persons
familiar with the tools and methods required for
this installation. If you are not sure about your
ability to perform this installation, you must
contact a professional. MantelMount is not
responsible for damage or injury caused by
incorrect installation or improper use.

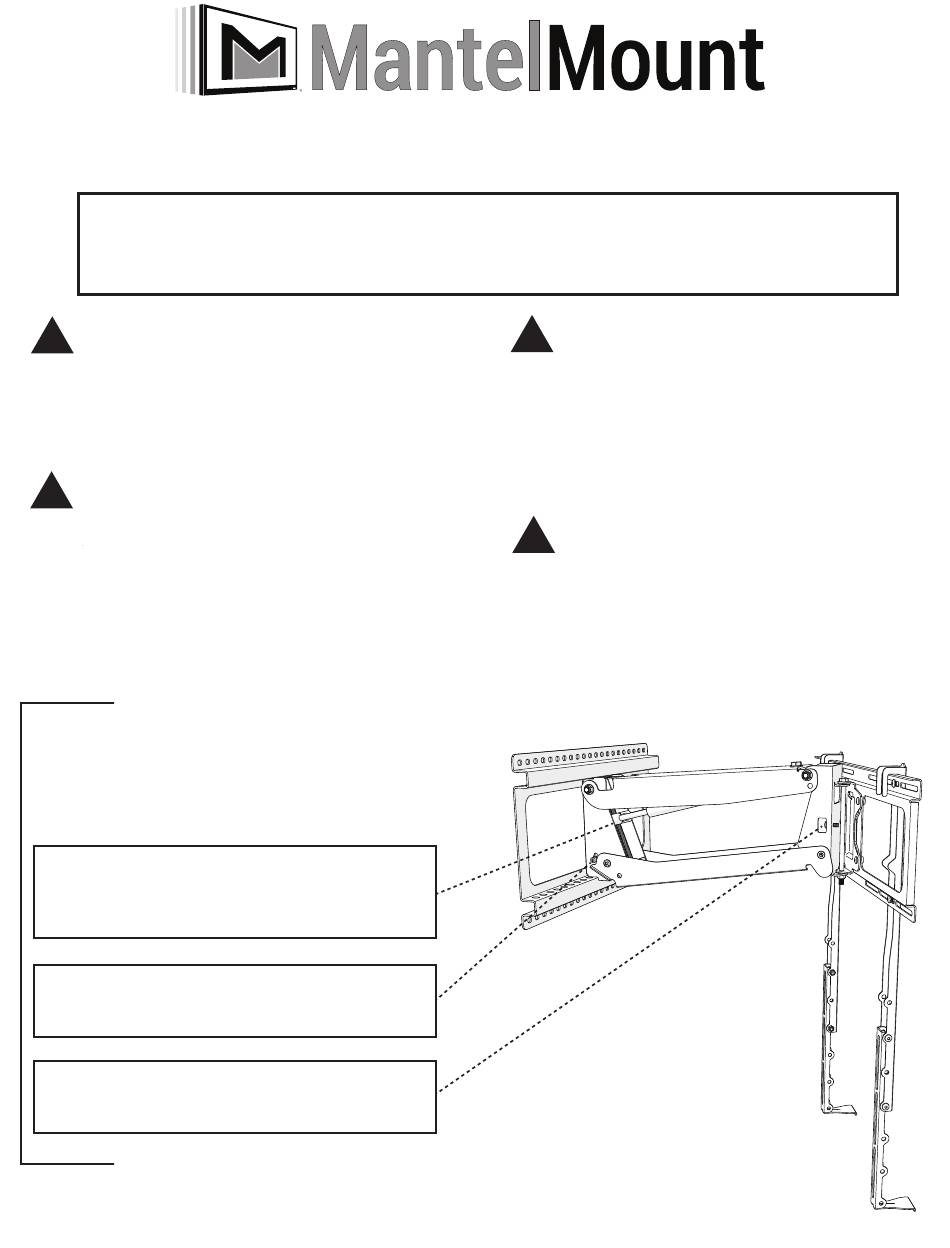

IMPORTANT:
MantelMount
MM340
adjustments
that
must
installation is complete in order to operate properly.
The main bolt adjusts the lifting force to
accommodate different TV weights. All TVs
within the weight range should stay in the UP
and DOWN positions when adjusted properly
The bottom travel stop is adjusted with two
screws and locknuts so the TV and mount
do not lower all the way into the mantel.
The side-to-side swivel stops are adjusted
with two screws and locknuts so that the TV
does not swivel into the mantel.
MantelMount MM340
Please read this entire manual before you begin.
has
three
different
be
made
after
www.MantelMount.com
!
CAUTION:
Do not let children operate, pull on, or hang from
MantelMount.
MantelMount upward to the top position - this will
cause the mount to slam against the wall due to
the upward force of the springs. Only a person
tall enough to control the mount all the way to
the top should operate MantelMount.
!
CAUTION:
Do not use this product in any way, or for any
purpose, that is not specifically described in these
instructions. MantelMount is not responsible for
damage or injury caused by incorrect installation
or improper use.
the
(800)-897-9755.
Do
not
let
children
U.S. Pat. No. 8,864,092
PAGE 1
push
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MantelMount MM340
Summary of Contents for MantelMount MM340
- Page 1 IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS Please read this entire manual before you begin. Do not unpack any contents until you verify all requirements on PAGE 4. If you have any questions, visit MantelMount.com or call (800)-897-9755. WARNING! CAUTION:...
- Page 2 4-5mm Before you begin, please verify that all components are included and undamaged. If any parts are missing or damaged, contact MantelMount. Never proceed with missing or damaged parts! Lay out all components and make sure you identify that each one has a match in the diagram.
- Page 3 TV Brace Full Manufacturer Warranty: MantelMount will replace or repair any product or part that proves defective due to improper workmanship or material during the warranty period. Visit www.MantelMount.com for details. This Installation Manual is available for download as a PDF document at www.MantelMount.com.
- Page 4 2 STUDS Mantle must not extend from mounting surface TELEVISION REQUIREMENTS: more than 16 inches. MantelMount can not extend past a 1. Weight must be between 20 - 90 pounds. mantel larger than 16 inches. Larger mantels will also 2. Screen size larger than 44 diagonal inches.
- Page 5 5 inches higher on the wall than the TV will be. {03} {10} {12} {05} {10} {04} {10} {12} {12} {12} Should be {06} {10} more than Fixed 3 INCHES 3 INCHES {12} {08} {11} {31} {31} {07} {11} {32} {12} {12} {09} {11} MantelMount MM340 PAGE 5...
-
Page 6: Important Note
TV. television (not the handles). Write down this distance to use in Step 9. {18} {23} 1 inch MAX (25mm) Bottom of Vertical Brace Bottom of TV Use this distance in Step 9 PAGE 6 MantelMount MM340... - Page 7 The image at right shows that the further out a mantle extends, it can interfere with the arc of the lowering TV. MantelMount must be installed a minimum distance above the mantle. This distance is additional to the distance from step 8. See the chart below for the additional height required above the mantle.
- Page 8 Do Not overtighten Lag Bolts {17}. Tighten only until the washers are firmly against the wall plate. Damage due to overtightening can cause property damage or injury. DO NOT damage or scratch the rods of the Gas Springs! PAGE 8 MantelMount MM340...
- Page 9 Press firmly until flat. sideways to the Lower Arm, making a gentle loop. Cables should be long enough to accommodate the extension and swivel of MantelMount. Check all ranges of motion before tightening the Cable Ties. {22} Reference Only: This is one possible configuration for the signal cables. Each segment of the cables has extra length so that the cables are not stressed or kinked when the mount is moved.
- Page 10 20 lbs 45 lbs Weight of TV 70 lbs 90 lbs DO NOT adjust all the way to the bottom. That position is only to remove the Gas Springs. PAGE 10 MantelMount MM340...
- Page 11 DO NOT allow the Television to drop far enough to cause the Lifting Mechanism {35} to hit the mantle. MantelMount comes pre-adjusted to reduce the possibility of contacting the mantle, but you should always be prepared to remove the television at this stage to make the proper correction.
- Page 12 The TV should almost stay up against the Safety Bolt, but should be easily lowered to the Bottom Stop. DO NOT adjust all the way to the bottom. That position is only to remove the Gas Springs. PAGE 12 MantelMount MM340...
- Page 13 Verify the proper lifting performance: Remove the Safety Bolt {20} and Safety Nut {27}. MantelMount lifting force is designed to keep the TV securely in the up position while also allowing the Store these parts for future use. The Safety Bolt and Nut TV to gently rest in the down position.
- Page 14 PAGE 14 MantelMount MM340...
- Page 15 MantelMount MM340 PAGE 15...
-
Page 16: Customer Service
Full Manufacturer Warranty: Auto-Straightening: Flattens the TV as it is raised MantelMount will replace or repair any product or part to the upper position to that proves defective due to improper workmanship prevent rotation into the wall or material during the warranty period.
