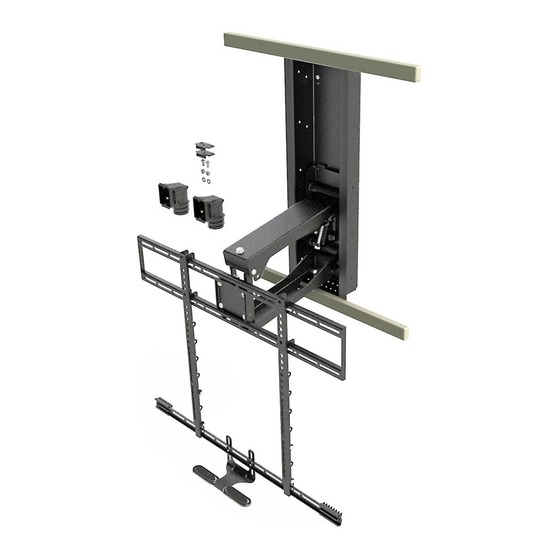

RB100 Recess Box Kit Addendum
For Use with MM340 - MM540 only
IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS
Please read this entire manual before you begin.
Do not unpack any contents until you verify additional requirement on PAGE 2.
If you have any questions, visit MantelMount.com or call
This Addendum is not a stand-alone set
of instructions, it is only to be used
together with the MantelMount
MM340-MM540 Installation Manual.
The steps in this Addendum replace the
correlating numbered steps that are in
the Installation Manual. The letter "a"
has been added to the steps in this
Addendum that are specifically used for
the installation of the Recess Box.
Example: step "1.5a" replaces step
"1.5" in the manual.
You must complete every step in the
Installation Manual unless there is a
replacement step in this Addendum.
Please read the entire Installation
Manual and also this entire Addendum
before you begin. Do not unpack the
contents of any MantelMount package
until you verify that your installation
meets all of the requirements listed in
MantelMount RB100 Recess Box Kit MM340-MM540 Addendum
TM
(800)-897-9755.
PAGE 1
Advertisement
Related Manuals for MantelMount RB100
Summary of Contents for MantelMount RB100
- Page 1 IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS Please read this entire manual before you begin. Do not unpack any contents until you verify additional requirement on PAGE 2. If you have any questions, visit MantelMount.com or call (800)-897-9755. This Addendum is not a stand-alone set...
- Page 2 Installation with the Recess Box will reduce the maximum size of Before you begin, please verify that all the Mantle to 15 inches. MantelMount installed with the Recess Box components are included and undamaged. can not extend past a mantel larger than 15 inches.
- Page 3 NOTE: If the existing studs are too far apart for the horizontal Recess Braces to reach, (for instance: a center stud needs to be cut out to make room for the Recess Box), longer Braces are available from MantelMount.com. Cutout in the drywall is...
- Page 4 The image at right shows that MantelMount travels downward in an arc. The installation height of MantelMount depends on two dimensions: how far out the mantle extends, and how high the Vertical Braces are attached on the back of the TV.
- Page 5 IMPORTANT: This situation might require longer Recess Find the centers of the studs at both upper and lower Braces {63}, available from MantelMount.com. locations. The upper Lag Bolts are most important, as they carry more of the weight of MantelMount. Cutout shown Cutout shown for reference for reference 2.5a...
- Page 6 Lag Bolts onto the centers of the 2.5 inches (65mm) including wall covering. Note: Wall studs. The Lag Bolts must be installed into the centers. covering (drywall) must not exceed 5/8” thickness. PAGE 6 MantelMount RB100 Recess Box Kit MM340-MM540 Addendum...
- Page 7 Brace Covers {64}. the MantelMount parts kit. Tighten securely. Return to STEP 3.5 in the MM340-MM540 Installation Manual. {64} DO NOT damage or scratch the rods of the Gas Springs! MantelMount RB100 Recess Box Kit MM340-MM540 Addendum PAGE 7...
- Page 8 Nut M6 Recess Locknut M8 12187 Depth 13050 Recess Box Recess Brace 13048 12110 Brace Cover 12.0 12135 Rubber Bumper Min. Clearance 15041 Cardboard Template RB100A Addendum MM340-MM540 16.0 Max. Clearance PAGE 8 28Sept2020 MantelMount RB100 Recess Box Kit MM340-MM540Addendum...
