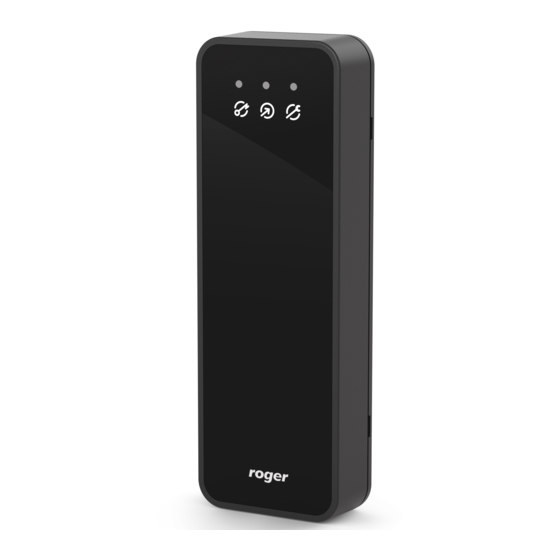

Roger Access Control System
PRT12MF-DES, PRT82MF, PRT84MF and PRT84ME
readers
Operating Manual
Firmware version: v1.0.8 or newer
Hardware version: 1.0/2.0
Document version: Rev. F
This document refers to the following products:
PRT12MF-DES, PRT12MF-DES-BK, PRT82MF, PRT82MF-BK, PRT84MF, PRT84MF-BK and PRT84ME

Advertisement

Table of Contents
loading

Related Manuals for Roger PRT12MF-DES

Summary of Contents for Roger PRT12MF-DES

  • Page 1 Roger Access Control System PRT12MF-DES, PRT82MF, PRT84MF and PRT84ME readers Operating Manual Firmware version: v1.0.8 or newer Hardware version: 1.0/2.0 Document version: Rev. F This document refers to the following products: PRT12MF-DES, PRT12MF-DES-BK, PRT82MF, PRT82MF-BK, PRT84MF, PRT84MF-BK and PRT84ME...

  • Page 2: Table Of Contents

    PRT12MF-DES PRT82MF PRT84MF PRT84ME Operating Manual 2021-02-01 Contents 1. General description ....................... 3 1.1 Introduction ........................3 1.2 Features ..........................3 1.3 Card number ........................3 1.3.1 CSN section ........................4 1.3.2 PCN section ........................4 1.3.3 RCN format rules ......................5 2.

  • Page 3: General Description

    PIN to access controller. Contrary to other PRTxxMF series readers, PRT12MF-DES readers can also read the most secure MIFARE DESFire and MIFARE Plus card in full range (both CSN and PCN). The factory new reader is pre-configured with RACS CLK/DTA operating mode and ID=0 address.

  • Page 4: Csn Section

    PRT12MF-DES PRT82MF PRT84MF PRT84ME Operating Manual 2021-02-01 CSN section PCN section Note: In the examples below the letter ‘h’ signifies hexadecimal number. 1.3.1 CSN section CSN section can be a part of RCN and it is based on factory defined chip serial number of MIFARE card.

  • Page 5: Rcn Format Rules

    PRT12MF-DES PRT82MF PRT84MF PRT84ME Operating Manual 2021-02-01 ASCII HEX PCN can be stored on card in binary format ( ) or text format ( ) which is configured Format ASCII HEX with parameter. If format is selected then single byte represents character in hexadecimal format e.g.
  • Page 6 PRT12MF-DES PRT82MF PRT84MF PRT84ME Operating Manual 2021-02-01 Example CSNL=4 FBP=8 LBP=10 Format=BIN and sections CSN and PCN are as below: Section CSN=C4C5C6C7 Section PCN=223344 Poz. then RCN is RCN=CSN+PCN=C4C5C6C7223344. CSN section PCN section The number returned by PRT reader with Wiegand 66 bit output format (64 data bits + 2 control...

  • Page 7: Operating Modes And Output Formats

    Additionally, output formats can be configured for Wiegand mode. 2.1 RACS CLK/DTA mode RACS CLK/DTA mode is dedicated for operation of reader with Roger access controllers. In this mode the reader uses two communication lines called CLK and DTA for bidirectional transmission.

  • Page 8: Reader Configuration

    3.1 RogerVDM configuration To perform this method reader has to be connected to PC via RUD-1 interface (fig. 3) and programmed by means of RogerVDM software which is available at www.roger.pl. Fig. 3 Connection of reader to RUD-1 interface Fig. 4 Location of service contacts Connection method 1.
  • Page 9 PRT12MF-DES PRT82MF PRT84MF PRT84ME Operating Manual 2021-02-01 Connect Configuration 5. Click , the program will establish connection and will automatically display tab. 6. Depending on requirements of specific installation configure operating mode, address and other settings. Send to Device 7. Click to update the configuration of reader.
  • Page 10 PRT12MF-DES PRT82MF PRT84MF PRT84ME Operating Manual 2021-02-01 communication 1..64 signal lost communication with controller by timeout [s] means of its LED indicators. When set to 0 then signaling is disabled. Card reader mode* 1 – Only MIFARE Parameter enables to select which card types are recognized by reader.
  • Page 11 PRT12MF-DES PRT82MF PRT84MF PRT84ME Operating Manual 2021-02-01 2 - IN2 Short sound after card 0 – No Parameter enables short sound (beep) generating read by buzzer when card is read. 1 – Yes Short sound after key 0 – No...
  • Page 12 PRT12MF-DES PRT82MF PRT84MF PRT84ME Operating Manual 2021-02-01 000000000000 – Parameter defines 6 bytes (12 HEX digits) key for FFFFFFFFFFFF accessing sector where PCN is stored. Programmable card number (PCN) settings for Mifare Plus Sector type 0 – None Parameter defines sector type with programmable number (PCN).

  • Page 13: Manual Programming Of Operating Mode

    PRT12MF-DES PRT82MF PRT84MF PRT84ME Operating Manual 2021-02-01 with PCN. Key type 0 – TDES Native Parameter defines key number used to access file with PCN. 1 – TDES Standard 2 – 3KTDES 3 – AES128 00000000000000000 Parameter defines access key for Desfire file with 000000000000000..F...
  • Page 14 PRT12MF-DES PRT82MF PRT84MF PRT84ME Operating Manual 2021-02-01 Example: In order to program mode 001:  read card 10 times and wait for two beeps  read card 10 times and wait for two beeps  read card 1 time and wait for two beeps Table 3.

  • Page 15: Memory Reset

    PRT12MF-DES PRT82MF PRT84MF PRT84ME Operating Manual 2021-02-01 Table A. 8-bit key coding 11110000 11100001 11010010 11000011 10110100 10100101 10010110 10000111 01111000 01101001 01011010 01001011 00111100 00101101 Table B. 4-bit key coding ASCII 0000 0001 0010 0011 0100 0101 0110 0111...

  • Page 16: Installation Guidelines

     It is recommended to install PRT82MF reader on a flush type box 60mm diameter.  PRT12MF-DES reader is delivered with additional extended base panel which is intended to be used when reader is installed on metal surface and/or if there is a need for extra space for connection wires.
  • Page 17 PRT12MF-DES PRT82MF PRT84MF PRT84ME Operating Manual 2021-02-01 Table 4: Connection wires Name Wire colour Description Supply plus Blue Supply minus Green RACS CLK/DTA communication line CLK Brown RACS CLK/DTA communication line DTA Yellow IN1 input Pink IN2 input TAMP Grey Tamper switch contacts.
  • Page 18 PRT12MF-DES PRT82MF PRT84MF PRT84ME Operating Manual 2021-02-01 Fig. 7 Dimensions and tamper details, standard (low profile) bottom enclosure 18/23...
  • Page 19 PRT12MF-DES PRT82MF PRT84MF PRT84ME Operating Manual 2021-02-01 Fig. 8 Dimensions and tamper details, standard (high profile) bottom enclosure 19/23...

  • Page 20: Firmware Update

    5. F IRMWARE UPDATE Firmware can be updated by means of RogerVDM software and RUD-1 communication interface. The file with latest firmware is available at www.roger.pl. Firmware update procedure: 1. Connect reader to RUD-1 interface according to fig. 3. 2. Put jumper on FDM contacts (fig. 4).

  • Page 21: Technical Specification

    PRT12MF-DES PRT82MF PRT84MF PRT84ME Operating Manual 2021-02-01 Fig. 10 Firmware Update window view. 6. T ECHNICAL SPECIFICATION Table 5. Technical specification Supply voltage Nominal 12VDC, min./max. range 10-15VDC Current consumption (average) PRT12MF-DES: ~70 mA PRT12MF-DES-BK: ~50 mA PRT82MF: ~60 mA...

  • Page 22: Ordering

    PRT12MF-DES: Class IV PRT82MF/PRT84MF/PRT84ME: Class II Dimensions H x W x D and weight PRT12MF-DES: 152,5 x 46 x 23(35) mm; 150g PRT82MF: 85 x 85 x 22 mm; 100g PRT84MF/PRT84ME: 130 x 45 x 22 mm; 100g Certificates 7. O RDERING Table 6.
  • Page 23 PRT12MF-DES PRT82MF PRT84MF PRT84ME Operating Manual 2021-02-01 v1.0 fv1.0.8.126 08/07/2015 Memory Reset Procedure changes, possibility of manual operating mode programming added, reduced current consumption. v2.0 fv2.0.8.126 08/07/2015 Increased the reading distance of PRT84MF. Table 9. PRT84ME product history Electronic Firmware...
