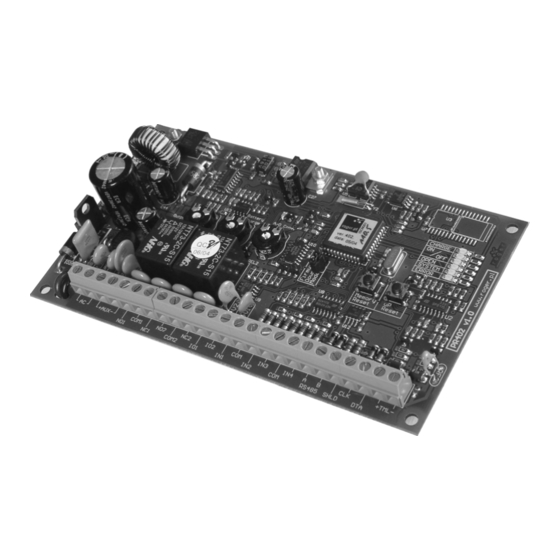

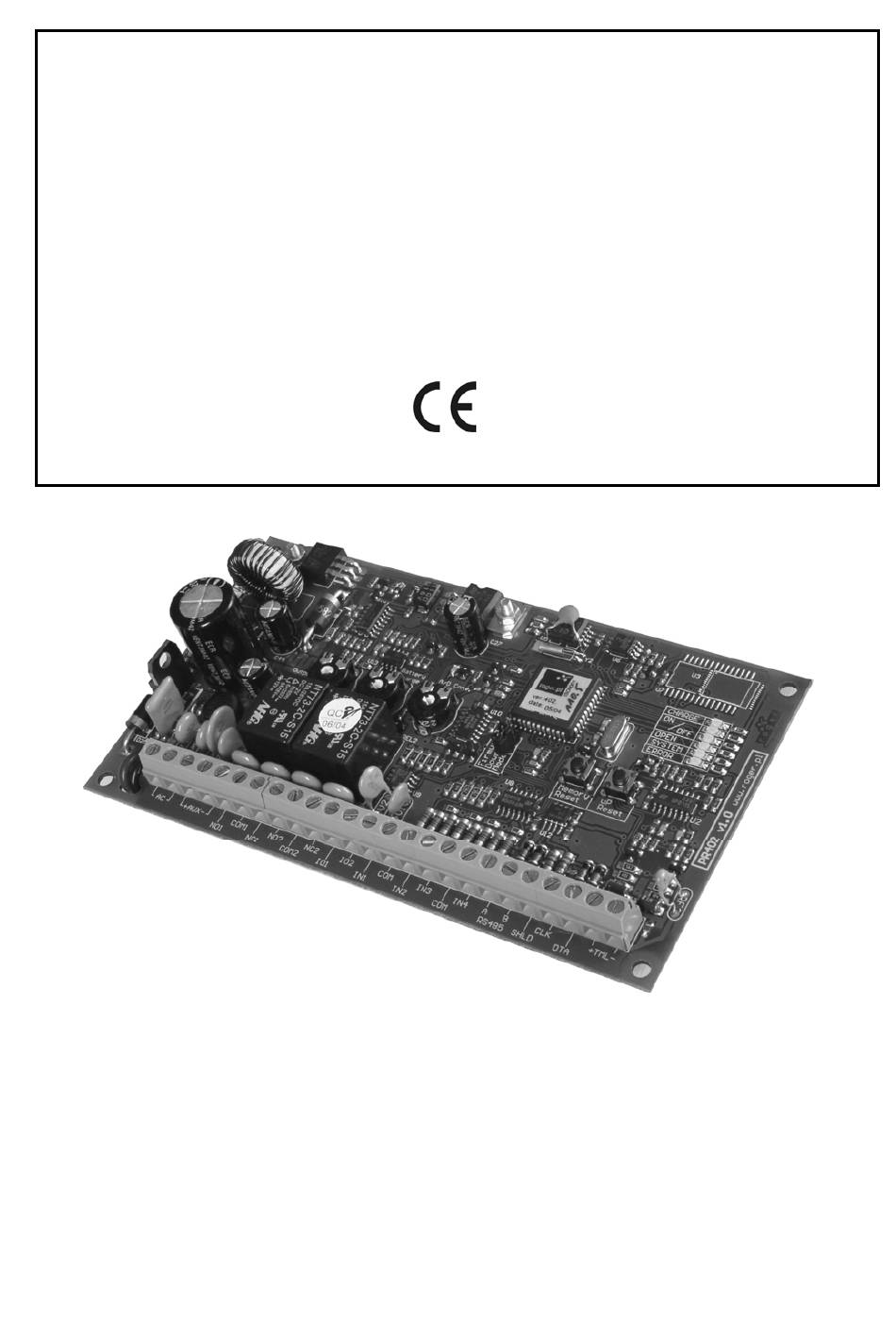

- Page 1 Roger Access Control System CPR32-SE v2.0 Access System Controller Firmware 2.06.5018 Requires: PR Master v4.3.3.504 or higher Operating Manual Rev. A...
- Page 2 CPR32-SE v2.0 EN Rev.B.doc 3/27/2010 Introduction This document contents minimum information required for electrical connections, installation and initial tests of CPR32-SE access network controller. CPR32-SE is a module which can be used in RACS systems equipped either with PRxx1 or PRxx2 series controllers.
-
Page 3: Installation
CPR32-SE v2.0 EN Rev.B.doc 3/27/2010 Note: If there is no evident need for global type functions in the PRxx2 based system, it is recommended not to install CPR32-SE. Installation The CPR32-SE module can be installed in any metal or plastic enclosure which guarantees adequate protection from dust, water and moisture. - Page 4 Power supply Controller can be powered from AC source which delivers 18-22VAC/30VA power; it can be ME-1 metal enclosure (from Roger) with built-in 40VA transformer or another AC source which provides required voltage and power. Optionally, CPR32-SE can be supplied directly from 12V DC, in this case 12V DV supply voltage should be connected to +ACC- terminals which are normally used for reserve battery (for details see wiring diagram below).
- Page 5 CPR32-SE v2.0 EN Rev.B.doc 3/27/2010 Charging current adjustment When required, battery charging current can be adjusted in 100-500mA range. In order to set required charging current connect battery (which is partly discharged) to CPR32-SE and then using screwdriver rotate POT1 potentiometer and observe current which flow into battery. Charging current should be observed using multimeter connected in series with battery plus or minus.
- Page 6 CPR32-SE v2.0 EN Rev.B.doc 3/27/2010 Note: Appling voltages above 30V to REL1/REL2 terminals will damage electronic components used to protect relays’ contacts, this will corrupt functionality of relay output. In normal state NC terminal is shorted to COM while NO remains isolated. When active, NO is shorted to COM while NC is isolated.
- Page 7 CPR32-SE v2.0 EN Rev.B.doc 3/27/2010 however later APB rules must be strictly followed. [15]: Set Armed mode Input Triggering this input switches all controllers in the network to Armed mode. [16]: Set Disarmed mode Input Triggering this input switches all controllers in the network to Disarmed mode.
- Page 8 CPR32-SE v2.0 EN Rev.B.doc 3/27/2010 [78]: CPR passive Output Active when CPR is disabled (switched OFF by managing program). [79]: Internal failure Output Line indicates an internal problem of CPR module (clock unset, configuration data error, event memory error); output remains active as long as corresponding state exists.
-
Page 9: Firmware Upgrade
During manufacturing process CPR32-SE is programmed with latest version of firmware, nevertheless it can be later upgraded with newer versions as they are released. Roger design team continuously work on enhancements and publish them on company web site (www.roger.pl). Roger customers are advised to register at web site so company will let inform when new versions are ready for download. - Page 10 CPR32-SE v2.0 EN Rev.B.doc 3/27/2010 Connection terminals Terminal Function +ACC- Reserve battery. AC supply input, 18-22V/30VA. +AUX- Supply output 12VDC/1A, AUX- internally shorted with GND, output current internally limited. REL1-NO REL1 output, normally open contact, 30V/1.5A. REL1-COM REL1 output, common contact, 30V/1.5A.
- Page 11 CPR32-SE v2.0 EN Rev.B.doc 3/27/2010 Technical specification Parameter Value Supply voltage 18-22V AC Power consumption 30VA Distances Between controller and reader or extension module: max. 150 m Between controller and communications interface or CPR32-SE network controller: 1200m Environmental class Class I, Indoor-General, temperature: 5°C- +40°C, relative...
- Page 12 CPR32-SE v2.0 EN Rev.B.doc 3/27/2010 Ordering information ME-1 Standard metal enclosure with 40VA transformer, one CPR32-SE/PR402 size module can be installed in this enclosure. ME-2 Large metal enclosure with 80VA transformer, when used together with ZMPR- 1 kit up to four CPR32-SE/PR402 size modules can be installed in this enclosure.
