- Page 1 GL1425C Hands-on Roland Grimm | Product Manager March, 2023...

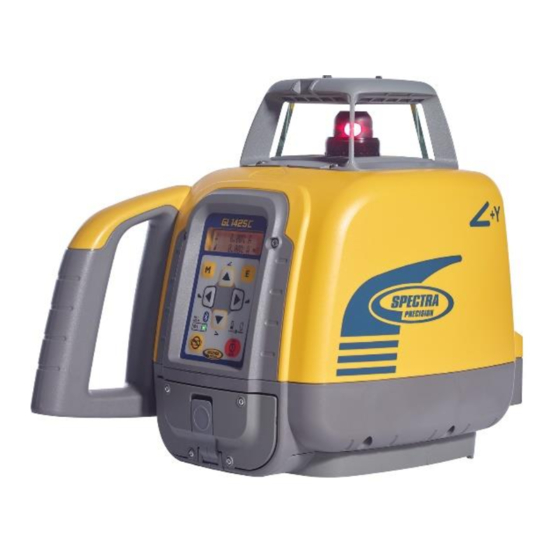

- Page 2 GL1425C Spectra Precision Dual Grade Laser ©2023 Spectra Precision | All Rights Reserv ed...
- Page 3 Enter button Level- / Bluetooth LED Left/right button (X axis) Shock Warning (HI) Up/Down button (Y axis) Manual Standby LED Battery Status LED Manual mode / Escape / Standby button Power button ©2023 Spectra Precision | All Rights Reserv ed...
- Page 4 GL1425C Peripherals Sighting guides Battery door latch Scope notches Beam Exit 5/8“ X 11 Handle Battery door Charger jack ©2023 Spectra Precision | All Rights Reserv ed...
- Page 5 GL1425C Peripherals Indication of the positive Y slope Indication of the positive X slope 5/8“ X 11 for vertical Serial label including the laser safety label ©2023 Spectra Precision | All Rights Reserv ed...
- Page 6 Charger worldwide (CH10) insertion. Do not open the cage for exchanging the rechargeable batteries. If using 4 x D-Cell alkaline batteries, note the plus (+) and minus (-) diagramm within the battery pocket. ©2023 Spectra Precision | All Rights Reserv ed...
- Page 7 RC1402 Remote Control LCD display Menu button Enter button Left/right button (X axis) Up/Down button (Y axis) Battery Status LED Manual mode / Escape / Standby button Power button ©2023 Spectra Precision | All Rights Reserv ed...
- Page 8 Turning On the RC1402 Press the Power button to turn on the radio remote control. The RC1402 mirrors the functionality of the GL1425C keypad. Turning Off the RC1402 Press and hold the Power button for two seconds.
- Page 9 5. Do step 3 from option 1. 6. The laser and the RC1402 display show „Pairing OK“ for one second. Finally the RC1402 shows the laser information to indicate the laser has been machted with the remote control. ©2023 Spectra Precision | All Rights Reserv ed...
- Page 10 14. „PAIR OK“ will be displayed. The laser turns back to the standard display. 15. Press (HL760 power button) twice to show the receiver standard display. 16. Result: the receiver display shows the laser and antennna symbol to confirm the radio connection: ©2023 Spectra Precision | All Rights Reserv ed...
- Page 11 13. „PAIR OK“ will be displayed. The laser turns back to the standard display. 14. Press (CR700 menu button) once to show the receiver standard display. 15. Result: the receiver display shows the laser and antennna symbol to confirm the radio connection: ©2023 Spectra Precision | All Rights Reserv ed...
- Page 12 The LCD shows „Initialisation“ and for one second the software revision. All LEDs are turned on for two seconds. The LCD shows the grade value, the mask mode and for a few seconds the battery status. Power button ©2023 Spectra Precision | All Rights Reserv ed...
- Page 13 After the temperature reference check the standard display appears and the A symbol flashes until self-leveling has been completed. Pressing and holding the E button shows the current rotation speed, the internal product temperature and battery status. Status LED ©2023 Spectra Precision | All Rights Reserv ed...
- Page 14 Turn off the laser Press and hold the Power button for two seconds turns off the laser. Power button ©2023 Spectra Precision | All Rights Reserv ed...
-
Page 15: Standby Mode
The HI/MAN LED at the laser flashes red every five seconds while the display shows „Standby“. Press and hold the manual button for three seconds to deactivate standby mode and restore full operations of the laser. HI/MAN LED Manual button ©2023 Spectra Precision | All Rights Reserv ed... -
Page 16: Manual Mode
To resume the automatic self-leveling mode, press the manual button again Up/down and left/right arrow buttons MAN LED Manual button ©2023 Spectra Precision | All Rights Reserv ed... -
Page 17: Mask Mode
+ or – X axis. The display indicates which section of the laser has been turned off. Note: The laser always powers on with the mask mode deactivated. Up/down and left/right arrow buttons Manual button ©2023 Spectra Precision | All Rights Reserv ed... - Page 18 Result: the laser is now in manual mode. Fine corrections left and right can be done using the left/right arrow buttons. Press the manual button again to change the laser back to automatic mode. Left/right arrow buttons Manual button ©2023 Spectra Precision | All Rights Reserv ed...
-
Page 19: Menu Functions
Press the M button to changes the laser back to the standard or previous display. Press E (Enter) button to open the submenu or to start the selected feature. E (Enter) button Down/up arrow buttons M (Menu) button ©2023 Spectra Precision | All Rights Reserv ed... - Page 20 Press the M button to return to standard display at any time and to escape from submenu. Note: The A symbols at the LCD will flash until the laser has self-leveled to the requested grade position. E (Enter) button Up/down arrow buttons Manual button Left/right arrow buttons ©2023 Spectra Precision | All Rights Reserv ed...
- Page 21 Note: The laser will self-level to the required grade position a few seconds after releasing the arrow button. Note: The A symbols at the LCD will flash until the laser has self-leveled to the requested grade position. Up/down arrow buttons Left/right arrow buttons ©2023 Spectra Precision | All Rights Reserv ed...
-
Page 22: Rotation Speed
Press E button to confirm the selected rotation speed and to return to the standard display. Note: When powering on the laser always starts with the previously saved rotation speed. E (Enter) button Up/down arrow buttons M (Menu) button ©2023 Spectra Precision | All Rights Reserv ed...
