Dynabrade Dynorbital 57600 Manual

For Serial No. 9D1000 and Higher
Models:
57600 – Non-Vacuum
57601 – Self-Generated Vac-Ready
57602 – Self-Generated Basic Vac
57603 – Self-Generated Deluxe Vac
57604 – Central Vac-Ready
WARNING
!

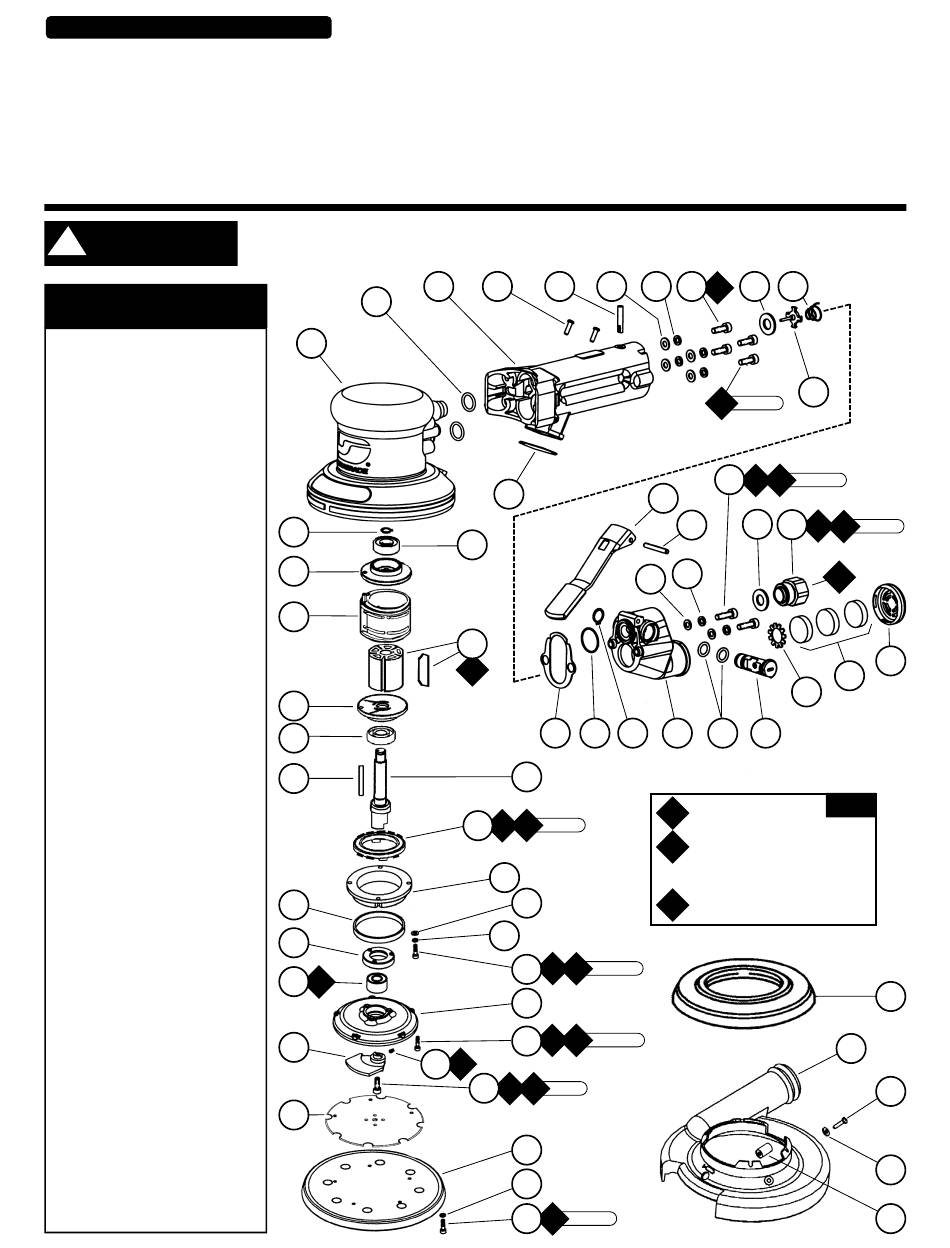

Index Key
No. Part# Description
1 11579 Spacer (4) (Ctl.-Vac Only)
2 96427 Washer (4) (Ctl.-Vac Only)
3 96424 Screw (4) (Ctl.-Vac Only)
4 57735 Shroud (Ctl.-Vac Only)
5 57371 Shroud
6 97010 Screw (9)
7 95886 Washer (13)
8 56235 Pad (Vac)
56234 Pad ( Non-Vac)
9 56238 Pad Adapter (Self-Gen. Vac,
Non-Vac as needed,
Euro Central-Vac)
10 95898 Screw
11 95887 Set Screw
12 54628 Counter Balance
13 01678 Screw (3)
14 54627 Mounting Plate
15 56133 Bearing
16 54685 Bearing Retainer
17 01788 Screw (6)
18 01211 Lock Washer (10)
19 57368 Wiper
20 57397 Wiper Retainer
21 56046 Lock Ring
22 54672 Shaft
23 54673 Key
24 02695 Bearing
25 54630 Front Bearing Plate
26 54705 Rotor/Blade Set (5/pkg.)
27 54631 Cylinder (Incl. 95865 Pin)
28 54629 Rear Bearing Plate
29 01206 Bearing
30 95626 Retaining Ring
31 57382 Gasket (Non-Vac, Ctl.-Vac)
57383 Gasket (Slf.-Gen. Vac,
Euro Central-Vac)
32 57605 Housing – 57600
57606 Housing – 57601
57606 Housing – 57602
57606 Housing – 57603
57607 Housing – 57604
33 95523 O-Ring (2)
34 56671 Handle
35 96123 Screw (2)
36 57396 Valve Stem
37 01464 Seal (2)
38 01472 Tip Valve
39 01468 Conical Spring
40 56673 Gasket
41 96328 O-Ring
42 98597 Retaining Ring
43 56672 Adapter Assembly
44 01024 O-Ring (2)
45 57343 Speed Regulator
46 54199 Muffler Seat (Non-V, Ctl.-V)
47 54195 Muffler (Non-V, Ctl.-V)
48 54194 Muffler Cap (Non-V, Ctl.-V)
49 57344 Throttle Lever
50 01017 Pin
51 96421 Flat Washer (2)
52 01494 Inlet Bushing
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air
tools (ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade's
Warning/Safety Operating Instructions for more complete safety information.
33
32
30
28
27
25
24
23
19
16
15 A
1
12
11
9
Random Orbital Sander
Air Powered, Random Orbital Sander, 10,000 RPM
34 35 36 7
31
29
26
O
1
40 41
22
21 A
T
34 N•m
2
20
7
18
A
17
T 2.82 N•m
3
14
A
13 T
2.82 N•m
2
A
2
A
10
T
9 N•m
3
8
7
6
T 3.38 N•m
Parts Page Reorder No. PD00•80R
Effective November, 2000
Supersedes PD96•54
8" Dynorbital
18 6 37 39
A
3
T
1.7 N•m
17 A
T
2.82 N•m
3
49
37 52
50
17
51
46
42 43 44 45
O
Oil: O = Air Lube
1
Adhesive: A = Loctite #609
A
1
A = Loctite #271
2
A = Loctite #242
3
Torque: N•m x 8.85 = In. - lbs.
T
®
38
A
T
23 N•m
2
O
1
48
47
KEY
5
4
3
2
1
