Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
Models:
56800 - 3-1/2" Non-Vacuum
56801 - 3-1/2" Basic-Vacuum
56802 - 3-1/2" Deluxe-Vacuum
56803 - 3-1/2" Vac-Ready
56804 - 3-1/2" Central Vac-Ready
56815 - 5" Non-Vacuum
56816 - 5" Basic-Vacuum
56817 - 5" Deluxe-Vacuum
56818 - 5" Vac-Ready
56819 - 5" Central Vac-Ready
56821 - 5" Basic-Vac w/Overskirt
56822 - 5" Deluxe-Vac w/Overskirt
WARNING
!
KEY
Adhesive:
A
A
= Loctite #271
2
A
= Loctite #567
8
Torque: N•m x 8.85 = In. - lbs.
T
Oil: O
= Air Lube
O
1

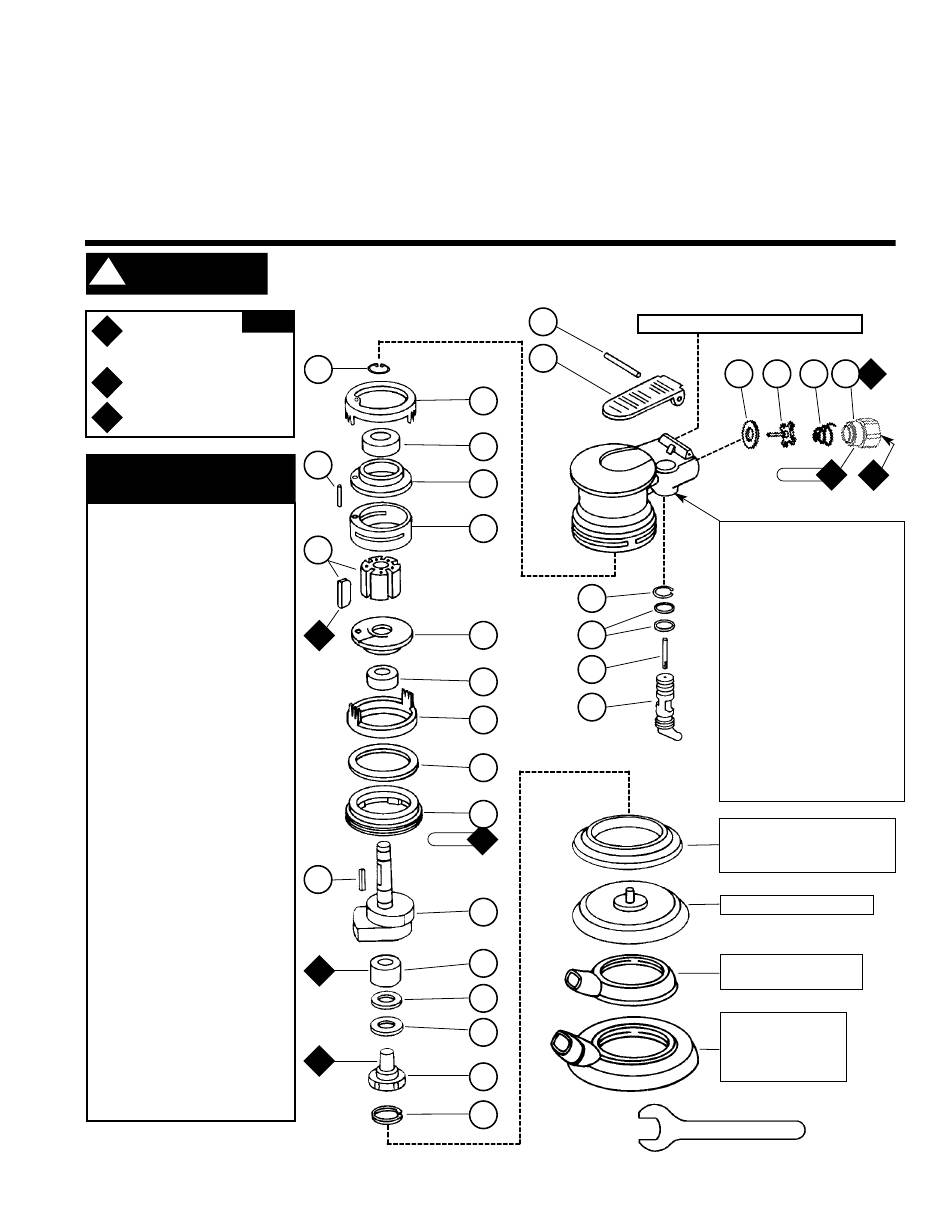

Index Key
No. Part #
Description
1
95630 Snap Ring
2
57069 Balancer Shaft
3
95628 Bearing Shield
4
56053 Bearing Seal
5
56052 Balancer Bearing
6
Motor Shaft Balancer
57060 3-1/2"
57061 5"
57062 6"
7
56047 Rotor Key
8
57059 Lock Ring Key
9
95973 Washer
10
57055 Front Ring
11
57088 Bearing
12
57057 Front Bearing Plate
13
57113 Blade/Rotor Set
14
57058 Cylinder Assembly
(Incl. 95971 Line-up Pin)
15
95971 Line-up Pin
16
57056 Rear Bearing Plate
17
01206 Bearing
18
57054 Rear ring
19
95626 Snap Ring
20
56846 Lever
21
95979 Pin
22
01464 Seal
23
01472 Tip Valve
24
01468 Conical Spring
25
01494 Inlet Bushing
26
95697 Snap Ring
27
01025 O-Ring (2)
28
01477 Valve Stem
29
57064 Speed Regulator Assy.
or
57053 Recessed Speed Reg.
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
56823 - 5" Vac-Ready w/Overskirt
56824 - 5" Cntrl. Vac-Ready w/Overskirt
56826 - 6" Non-Vacuum
56827 - 6" Basic-Vacuum
56828 - 6" Deluxe-Vacuum
56829 - 6" Vac-Ready
56830 - 6" Central Vac-Ready
56832 - 6" Basic-Vac w/Overskirt
56833 - 6" Deluxe-Vac w/Overskirt
56834 - 6" Vac-Ready w/Overskirt
56835 - 6" Cntrl. Vac-Ready w/Overskirt
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools (ANSI B186.1)
and any other applicable safety codes and regulations. Please refer to Dynabrade's Warning/Safety Operating
Instructions for more complete safety information.
19
15
13
O
1
23 N•m
7
A
2
A
2
Note: To order replacement parts specify the model and serial number of your machine.
Dynorbital
21
See page 2 for Machine Exhaust Assemblies.
20
18
17
16
14
26
12
27
28
11
29
10
9
8
T
6
5
4
3
2
1
Parts Page Reorder No. PD00•83
Effective November, 2000
Supersedes PD98•20
Small Grip
®
Supreme
3/16" Dia. Orbit, 12,000 RPM

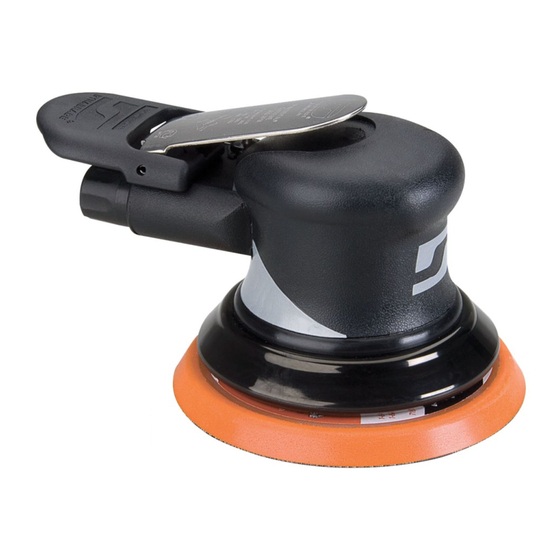

Random Orbital Sander
22
23
24
25
23 N•m
T
Housing & Models Used on
57281 - 3-1/2" Non-Vac
57282 - 3-1/2" Basic-Vac
Deluxe-Vac, Vac-Ready
57283 - 3-1/2" Central-Vac
57284 - 5" Non-Vac
57285 - 5" Basic-Vac, Deluxe-Vac
Vac-Ready
57286 - 5" Central-Vac
57287 - 5" Basic-Vac, Deluxe-Vac
Vac-Ready w/ Overskirt
57288 - 5" Central-Vac w/ Overskirt
57289 - 6" Non-Vac
57290 - 6" Basic-Vac, Deluxe-Vac
Vac-Ready
57291 - 6" Central-Vac
57292 - 6" Basic-Vac, Deluxe-Vac
Vac-Ready w/ Overskirt
57293 - 6" Central-Vac w/ Overskirt
Lip-Seal Shroud (Non-Vac only)
54458 — 3-1/2" models
56051 — 5" and 6" Models
Sanding Pads - see page 7.
Vacuum Lip-Seal Shroud
57089 — 5" and 6" Models
Vacuum Overskirts
57084 — 3-1/2" Models
57086 — 5" Models
57087 — 6" Models
50679 26 mm Wrench
A
8
O
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dynabrade 56801
Summary of Contents for Dynabrade 56801
- Page 1 Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools (ANSI B186.1) WARNING and any other applicable safety codes and regulations. Please refer to Dynabrade’s Warning/Safety Operating Instructions for more complete safety information.
- Page 2 Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade Machine Exhaust Assemblies Self Generated Vacuum (Vac-Ready)/Machine Exhaust For Models: 56801, 56802, 56803, 56816, 56817, 56818, 56821, 56822, 56823, 56827, 56828, 56829, 56832, 56833, 56834 Central Vacuum/Machine Exhaust Non-Vacuum/Machine Exhaust...
- Page 3 2. Some silencers on air tools may clog with use. Clean and replace as required. 3. All Dynabrade air motors should be lubricated. Dynabrade recommends one drop of air lube per minute for each 10 SCFM (example: if the tool specifications states 40 SCFM, set the drip rate of your filter-lubricator at 4 drops per minute).
- Page 4 Drawing 3 6. Place the 57090 Rotor and 56047 Rotor Key on the motor shaft balancer. Place the 56073 Vanes into the rotor slots. Note: Vanes should be lightly lubricated with Dynabrade Air Lube P/N 95842 (or equivalent) before installation. 57091 7.
- Page 5 Note: Motor should operate at between 9,500 and 10,000 RPM at 6.2 bar (90 PSIG). RPM should be checked with a reed tachometer. Before operating, we recommend that 2-3 drops of Dynabrade Air Lube P/N 95842 (or equivalent) be placed directly into the air inlet with throttle lever depressed. Operate the machine for approximately 30 seconds before application to workpiece to determine if machine is working properly and safely and to allow lubricating oils to properly dispense through machine.
- Page 6 Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade Self-Contained Dust Collection Systems Easily attach to Dynorbital ® Supreme Random Orbital Sander – Self-Generated Vac-Ready Models. 50694 Mini-Reusable Felt Bag 54284 Mini-Flex-Hose System • 95580 Air Line 1" dia. x 28" long.
- Page 7 Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade Random Orbital Sanding Pads Perfectly balanced and weight-mated to Dynorbital ® Supreme Random Orbital Sander. Premium Urethane Pad - Vinyl Face for PSA-Type Discs 3-1/2" 5" 6" Description Dual Purpose...
- Page 8 Visit Our Web Site: www.dynabrade.com Email: Customer.Service@Dynabrade.com DYNABRADE, INC., 8989 Sheridan Drive • Clarence, NY 14031-1490 • Phone: (716) 631-0100 • Fax: 716-631-2073 • International Fax: 716-631-2524 DYNABRADE EUROPE S.àr.l., Zone Artisanale • L-5485 Wormeldange—Haut, Luxembourg • Telephone: 352 76 84 94 1 • Fax: 352 76 84 95 1 ©...
