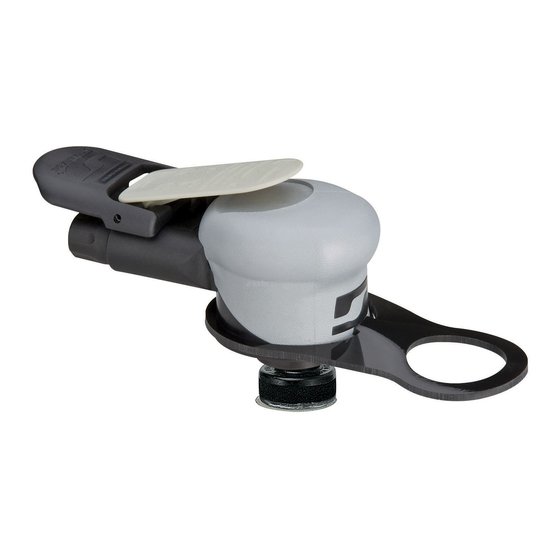

Mini-Dynorbital
Silver Supreme Sander
Models:
69500 - 5,000 RPM, Thread-Type (1/4"-20)
69502 - 7,500 RPM, Locking-Type
69503 - 5,000 RPM, Locking-Type
69504 - 7,500 RPM, Thread-Type (1/4"-20)
FIND THE MOST CURRENT OFFERING OF SUPPORT DOCUMENTS AND ACCESSORIES @ WWW.DYNABRADE.COM
Read and understand this tool manual before operating your air tool. Follow all safety rules for the protection of operating personnel
as well as adjacent areas. Always operate, inspect and maintain this tool in accordance with the American National Standards
Institute (ANSI) Safety Code for Portable Air Tools – B186.1. For additional safety information, refer to Safety Requirements for the
Use, Care and Protection of Abrasive Wheels – ANSI B7.1, Code of Federal Regulation – CFR 29 Part 1910, European Committee for
Standards (EN) Hand Held Non-Electric Power Tools – Safety Requirements and applicable State and Local Regulations.
Read and understand tool manual before
work starts to reduce risk of injury to
operator, visitors, and tool.
Eye protection must be worn at all times,
eye protection to conform to ANSI Z87.1.
Respiratory protection to be used when exposed to
contaminants that exceed the applicable threshold
limit values required by law.
Some dust created by sanding, grinding, drilling, and other construction activities contain chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and cement and other masonry products
• Arsenic and chromium from chemically treated lumber
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
Carefully Read all instructions before operating or servicing any Dynabrade
Products offered by Dynabrade are not to be modified, converted or otherwise alerted from the original design.
Tool Intent: Mini-Dynorbital
®
Silver Supreme Sander is used for sanding and finishing a variety of materials including wood, metal, plastic, fiberglass, solid
surfaces, composites, rubber, glass and stone. Using 3/4" - 1-1/4" diameter back-up pads. Use of pads greater than 1-1/4" diameter may increase vibration level.
Warning: This power tool is not intended for use in potentially explosive atmospheres and is not insulated against contact with electrical power.
Training: Proper care, maintenance, and storage of your tool will maximize its performance.
• Employer's Responsibility – Provide Mini-Dynorbital
Accessory Selection:
Warning:
• Abrasive/accessory RPM (speed) rating MUST be approved for AT LEAST the tool RPM rating.
• DO NOT USE grinding wheels or cut-off wheels.
• Back-up pad must always be used, abrasive is not to exceed more than 1/4" beyond pad edge.
• Before mounting an accessory, inspect for defects. Do not use defective accessories.
• Only use recommended fittings and air line sizes. Air supply hoses and air hose assemblies must have a minimum working pressure rating of 150 PSIG
(10 Bars, g) or 150 percent of the maximum pressure produced in the system, whichever is higher. (See tool Machine Specifications table.)
®
Air Tool Manual – Safety, Operation and Maintenance
SAVE THIS DOCUMENT, EDUCATE ALL PERSONNEL
WARNING
SAFETY LEGEND
WARNING
WARNING
WARNING
SAFETY/OPERATING INSTRUCTIONS
®
Do Not Use Tool For Anything Other Than Its Intended Applications.
®
Silver Supreme Sander operators with safety instructions and training for safe use of tools and accessories.
Practice safety requirements. Work alert,
have proper attire, and do not operate tools under
the influence of alcohol or drugs.
Ear protection to be worn when exposure to sound,
exceeds the limits of applicable Federal, State or
local statues, ordinances and/or regulations.
Air line hazard, pressurized supply lines and flexible
hoses can cause serious injury. Do not use damaged,
frayed or deteriorated air hoses and fittings.
WARNING
Abrasive Power Tool.
Parts Page Reorder No. PD10•18
Effective April, 2010
Air Powered Sander
3/16" Random
WARNING
WARNING
WARNING
Orbit Motion
Advertisement
Table of Contents
Related Manuals for Dynabrade Mini-Dynorbital Silver Supreme 69500
Summary of Contents for Dynabrade Mini-Dynorbital Silver Supreme 69500

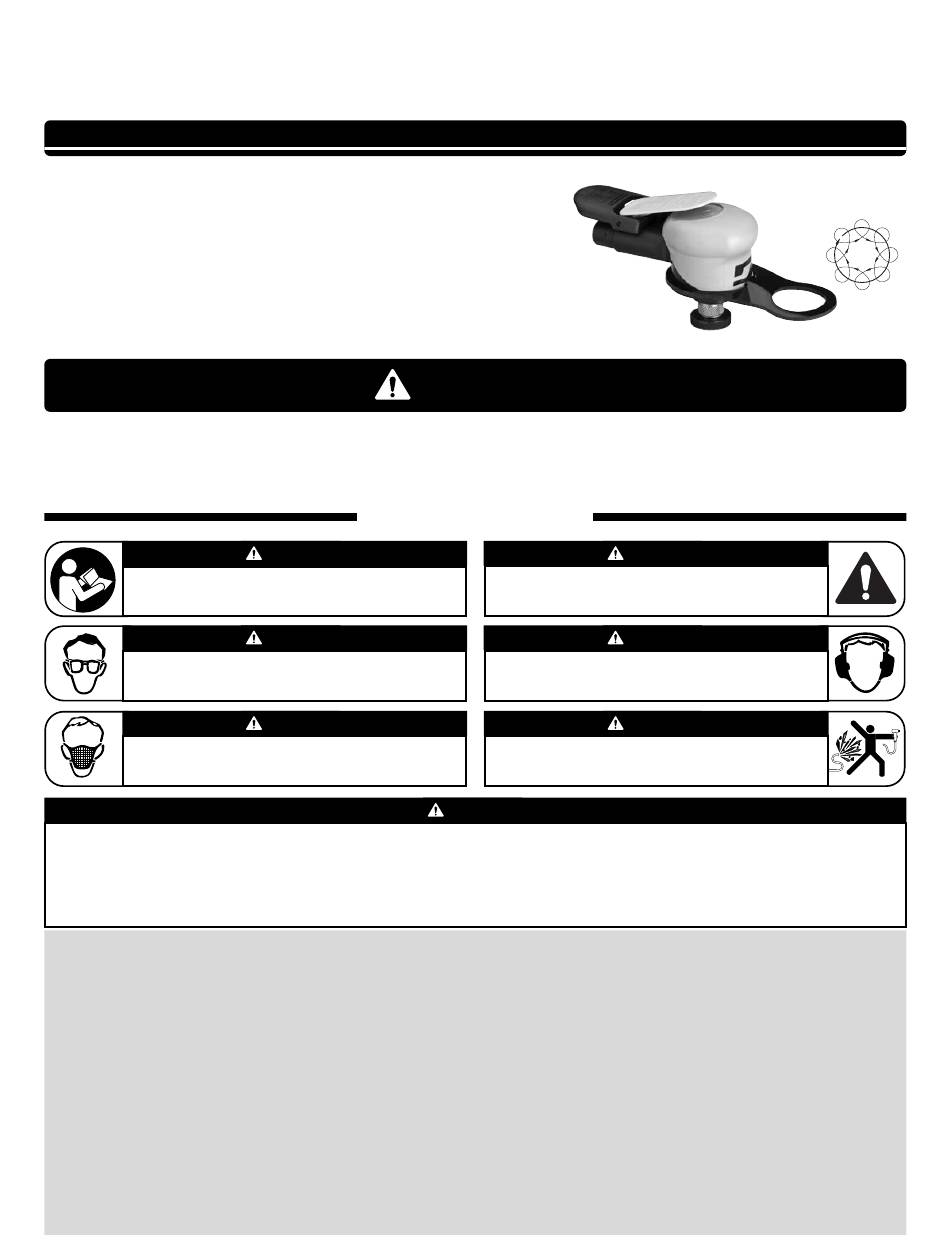

- Page 1 Carefully Read all instructions before operating or servicing any Dynabrade ® Abrasive Power Tool. Products offered by Dynabrade are not to be modified, converted or otherwise alerted from the original design. Tool Intent: Mini-Dynorbital ® Silver Supreme Sander is used for sanding and finishing a variety of materials including wood, metal, plastic, fiberglass, solid surfaces, composites, rubber, glass and stone.
- Page 2 Checking the RPM requires either a strobe or a magnetic tachometer. If tool is operating at a higher speed than the RPM marked on the tool housing, or operating improperly, the tool must be serviced and corrected before use. • Use only Dynabrade weight-mated pads to maintain low vibration levels. • Connect air tool to power source. Be careful NOT to depress throttle lever in the process.
- Page 3 • Refer to Dynabrade's Warning/Safety Operating Instructions Tag (Reorder No. 95903) for safety information. After maintenance is performed on tool, add a few drops of Dynabrade Air Lube (P/N 95842) to the air line and start the tool a few times to lubricate air motor.
- Page 4 Mini-Dynorbital ® Silver Supreme Sanders Note: To order replacement parts specify the Model # and Serial # of your machine. For Models: 69500, 69502, 69503, 69504 Exhaust Assembly Oil: O = Air Lube (See Below) Adhesive: A = Loctite #271 = Loctite #567 = Loctite #243 Torque: N•m x 8.85 = In.
- Page 5 Motor Assembly/Disassembly Instructions - Mini-Dynorbital ® Important: Manufacturers warranty is void if tool is disassembled before warranty expires. A Repair Kit P/N 57525, is available which includes special repair tools for correct disassembly/assembly of the sander. To Disassemble: 1. Disconnect sander from air supply. 2.
- Page 6 Note: Motor should operate at between 4,500 and 5,500 RPM for 5,000 RPM Models and 7,000 and 8,000 RPM for 7,500 RPM Models at 6.2 bar (90 PSIG). RPM should be checked with a tachometer. Before operating, we recommend that 2-3 drops of Dynabrade Air Lube P/N 95842 (or equivalent) be placed directly into the air inlet with throttle lever depressed.
- Page 7 This service chart is published as a guide to expectant life of component parts. The replacement levels are based on average tool usage over one year. Dynabrade Inc. considers one year usage to be 1,000 hours. Parts Common to all Models:...
- Page 8 Visit Our Web Site: www.dynabrade.com Email: Customer.Service@Dynabrade.com DYNABRADE, INC., 8989 Sheridan Drive • Clarence, NY 14031-1419 • Phone: (716) 631-0100 • Fax: 716-631-2073 • International Fax: 716-631-2524 DYNABRADE EUROPE S.àr.l., Zone Artisanale • L-5485 Wormeldange—Haut, Luxembourg • Telephone: 352 76 84 94 1 • Fax: 352 76 84 95 1 ©...
