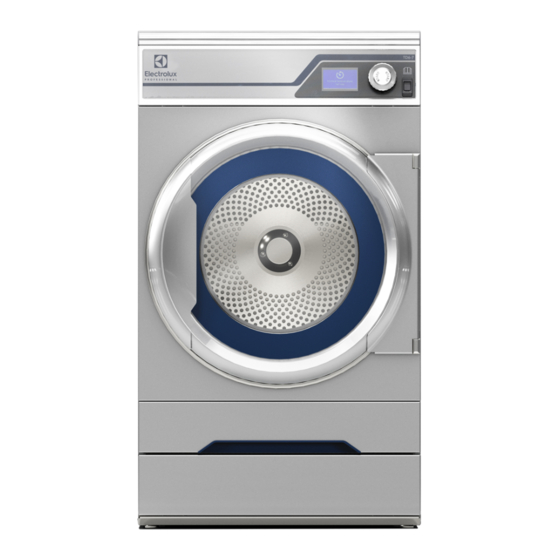

Electrolux Professional TD6-7 User Manual

Electrolux Professional TD6-7 User Manual

Hide thumbs Also See for TD6-7:

Advertisement

User manual
Tumble dryer
TD6–7
Type N1...
438917860/GB, IE
Original instructions
2023.03.02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TD6-7 and is the answer not in the manual?

Questions and answers

Summary of Contents for Electrolux Professional TD6-7

  • Page 1 User manual Tumble dryer TD6–7 Type N1... 438917860/GB, IE Original instructions 2023.03.02...
  • Page 3: Table Of Contents

    Contents Contents 1 Safety Precautions ..........................5 Additional safety precautions for gas heated tumble dryer .............7 General information ........................7 Commercial use only........................7 Ergonomics certification ......................7 Symbols............................8 2 Warranty terms and exclusions......................9 3 Operating panel ..........................10 4 Program description .......................... 11 General........................... 11 Program description .........................12 5 Handling ............................15 Load ............................15...
  • Page 5: Safety Precautions

    User manual 1 Safety Precautions • Servicing shall be carried out only by authorized personnel. • Only authorized spare parts, accessories and consumables shall be used. • The machine is not to be used if industrial chemicals have been used for cleaning. •...
  • Page 6 User manual • Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire.
  • Page 7: Additional Safety Precautions For Gas Heated Tumble Dryer

    User manual 1.1 Additional safety precautions for gas heated tumble dryer • Before installation, check that the local distribution conditions, nature of gas and pres- sure and the adjustment of the appliance are compatible. • The machine is not to be installed in rooms containing cleaning machines with per- chloroethylene, TRICHLOROETHYLENE or CHLOROFLUOROCONTAINING HY- DROCARBONS as cleaning agents.
  • Page 8: Symbols

    User manual In case several machines are managed by the same operator the repetitive movements will increase and as a conse- quence of this the related biomechanical risk will increase exponentially. The possible postural risks are the interaction with the door handle both in case the machine is placed directly on the floor without a base and in case the machine is placed on top of a washing machine.
  • Page 9: Warranty Terms And Exclusions

    Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec- tronic format. Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling agents to obtain optimal results and maintain product efficiency over time.
  • Page 10: Operating Panel

    User manual 3 Operating panel fig.X01076 Display Control knob...
  • Page 11: Program Description

    User manual 4 Program description 4.1 General The machine is equipped with a number of programs adapted to the range of use to which the machine is intended — different markets use different programs. The following program description is a short description of some exam- ples of programs that can be used.
  • Page 12: Program Description

    User manual 4.2 Program description There are two types of programs, automatic programs and time programs. • Automatic programs has moisture detection and will stop when selected dryness is achieved. • Time programs has no moisture detection and will stop when the preset or selected time has ended. During a drying cycle, when the square in the lower right corner is fully ticked, it indicates that the heating unit is ac- tive / ON.
  • Page 13 Check that there are no moist areas in the load after finished drying process. Avoid entanglement of loaded items during drying process. To achieve disinfection of the laundry, in Electrolux Professional washing machines, it is necessary to use Global Disinfection programs during drying.
  • Page 14 User manual Program name Care label Program description and display symbol Normal temperature. NORMAL TEMP LARGE TEXTILES The program will stop automatically when the fabric is dry. This program is suitable when drying large fabrics such as bed sheets, table cloths, curtains ect. The program is built to prevent the fabric from tangling together.
  • Page 15: Handling

    User manual 5 Handling 5.1 Load Note! Remove all objects from pockets and make sure there are no metal objects such as screws, pins etc. left. Metal objects might cause damage to the drum. Make sure the filter is clean. fig.X01072A...
  • Page 16: How To Start The Machine

    User manual Load the goods into the machine and close the door. The recommended maximum load is 7.5 kg. 5.2 How to start the machine Automatic programs Select program with the control knob. Start the machine by pressing the control knob. Time programs Select program with the control knob.
  • Page 17: When Program Has Ended

    User manual End a program It is possible to end a program after start. Select END PROGRAM and activate. When pressing the control knob the program will be ended. Status Select STATUS MENU and activate. The status menu shows the status for inlet air temp, outlet air temp, RMC and if the heat is on or off in the machine. Change drum speed (only on machines with MCU) Select CHANGE DRUM SPEED and activate.
  • Page 18: Error Codes

    User manual 6 Error codes A fault in the program or in the machine is indicated by an error code on the display. Some of these error codes can be solved easily without contacting service personnel. Error Text Cause/Action code 12:11 DRYING ERROR WITH RMC The RMC system (Residual moisture system) in the machine indicates that the garment is not...
  • Page 19: Every Day

    User manual 7.3 Every day Check that the machine does not operate with the door or the filter drawer open, if so, the machine must be placed out of order until repairs are made. Note! Contact qualified service personnel to disconnect power from the affected machine. Clean the door, door glass, door gasket and other external parts.
  • Page 20: Machines With Heat Pump

    User manual 7.4 Machines with heat pump 7.4.1 Second lint filter There are two warning messages indicating that the second filter shall be cleaned: 1. “CLEAN FIRST AND SECOND FILTER.” 2. “CLEAN FIRST AND SECOND FILTER. IF NOTICE REMAINS, CONTACT RESPONSIBLE FOR CHANGING THE SPECIAL FILTER.”...
  • Page 21: Disposal Information

    User manual 8 Disposal information 8.1 Disposal of appliance at end of life Before disposing of the machine, make sure to carefully check its physical condition, and in particular any parts of the structure that can give or break during scrapping. The machine’s parts must be disposed of in a differentiated way, according to their different characteristics (e.g.
  • Page 24 Electrolux Professional AB 341 80 Ljungby, Sweden www.electroluxprofessional.com...
