Summary of Contents for Electrolux Professional TD6-7LAC

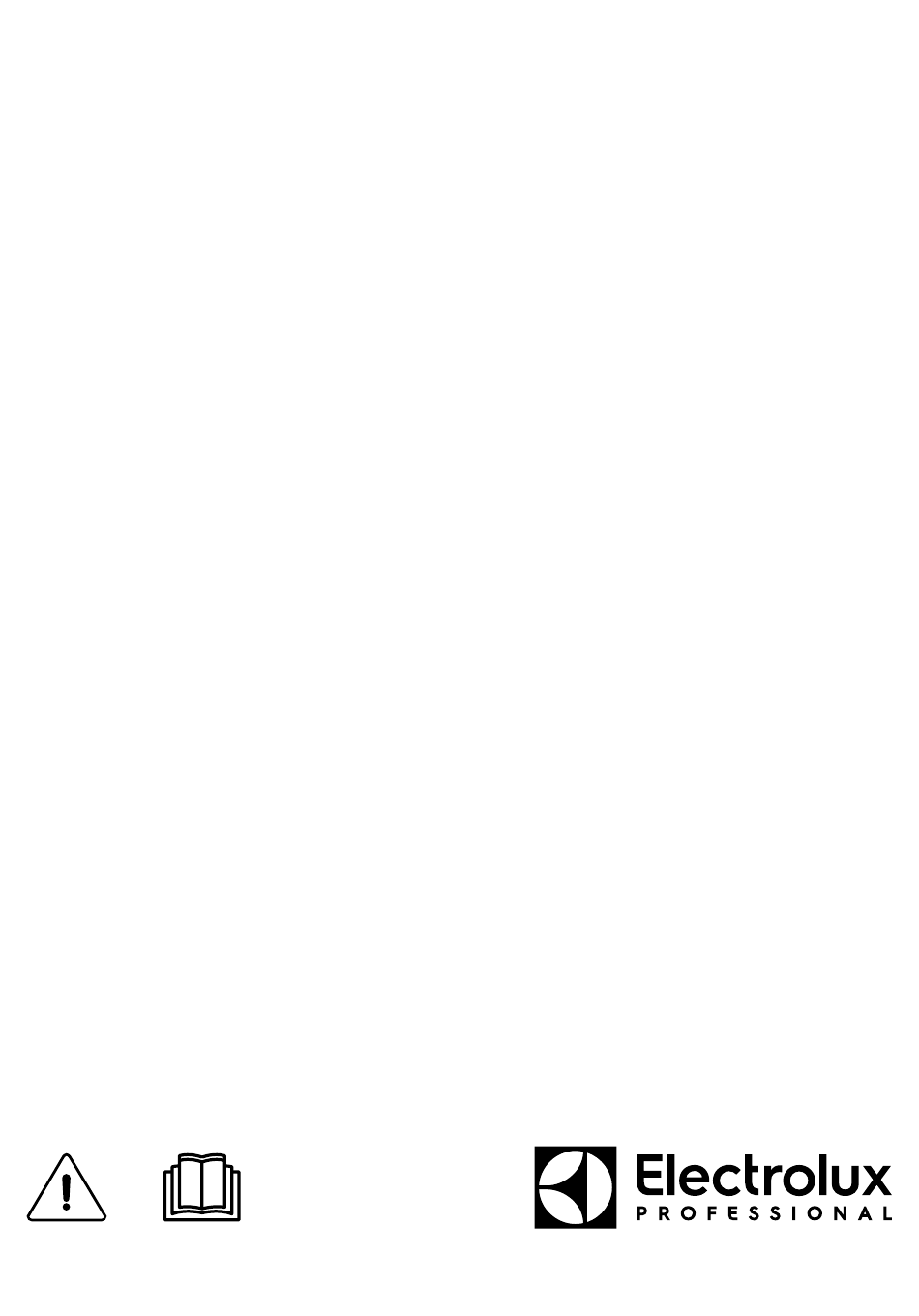

- Page 1 User Manual Tumble dryer TD6–7LAC Type N1... 438917878/US Original instructions 2024.02.21...
-
Page 3: Fire Or Explosion Hazard
Safety WARNING: FIRE OR EXPLOSION HAZARD Failure to follow safety warnings exactly could result in serious injury, death or property damage. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. WHAT TO DO IF YOU SMELL GAS: Do not try to light any appliance. - Page 4 Safety WARNING: This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a fire, explosion or production of carbon monoxide may result causing property damage, personal injury or loss of life.
- Page 5 Safety WARNING: The dryer is intended for use only with fabrics that have been washed with water. WARNING: To avoid fire hazard, do not dry articles containing foam rubber or similarly textured rubberlike materials. WARNING: ALL OPERATING AND MAINTENANCE PROCEDURES SHOWN ON THE NEXT PAGE OF THIS MANUAL MUST BE FOLLOWED DAILY FOR PROPER OPERATION OF YOUR MACHINE.
- Page 6 Safety NOTICE TO: OWNERS, OPERATORS AND DEALERS IMPROPER INSTALLATION AND INADEQUATE MAINTENANCE, POOR HOUSEKEEPING AND WILLFUL NEGLECT OR BYPASSING OF SAFETY DEVICES MAY RESULT IN SERIOUS ACCIDENTS OR INJURY. TO ASSURE THE SAFETY OF CUSTOMERS AND/OR OPERATORS OF YOUR MACHINE, THE FOLLOWING MAINTENANCE CHECKS MUST BE PERFORMED ON A DAILY BASIS. Prior to operation of the machine, check to make certain that all operating instructions and warning signs are affixed to the machine and legible.
-
Page 7: Notice To Installer
Refer to complete installation instructions provided in manuals accompanying the machine. Contact Electrolux Professional Technical Support with any questions BEFORE installing this machine. Damage resulting from inadequate installation materials or improper installation... -
Page 8: Electrical Information
Safety Electrical Information It is your responsibility to have ALL electrical connections (including grounding) made by a properly licensed and competent electrician to assure that the electrical installation is adequate and conforms with local and state regulations or codes. In the absence of such codes, ALL electrical connections, material, and workmanship must conform to the applicable requirements of the NATIONAL ELECTRIC CODE ANSI/NFPA NO. -
Page 9: Gas Information
Safety Gas Information It is your responsibility to have ALL plumbing connections made by a qualified professional to insure that the installation is adequate and conforms with local and state regulations or codes. In the absence of such codes, ALL plumbing connections, material, and workmanship must conform to the applicable requirements of National Fuel Gas Code, ANSI Z223.1/NFPA 54, or the Natural Gas and Propane Installation Code, CSA B149.1 - both the latest edition. - Page 10 Safety Natural Gas If the pressure is too low, ignition failure and/or slow drying times may result. Excessively high supply pressure will result in erratic operation of the gas valves internal pressure regulator. Further information in section: Gas connection. Propane Gas Dryers made for use with propane gas have the gas valve pressure regulator blocked open, so that the gas pressure must be regulated upstream of the dryer.
-
Page 11: Table Of Contents
Contents Contents 1 Safety Precautions ..........................13 Additional safety precautions for gas heated tumble dryer ............15 General information .........................15 Commercial use only........................15 Copyright ..........................15 Ergonomics certification ......................15 Symbols..........................16 2 Warranty terms and exclusions......................17 3 Operating panel ..........................18 4 Program description ..........................19 Lagoon programs........................19 General programs........................20 5 Handling ............................21... -
Page 13: Safety Precautions
User Manual 1 Safety Precautions • Servicing shall be carried out only by authorized personnel. • Only authorized spare parts, accessories and consumables shall be used. • The machine is not to be used if industrial chemicals have been used for cleaning. •... - Page 14 User Manual • Maximum mass of dry cloth: 9.0 kg / 19.8 lbs (for heat pump and electric heated tumble dryers). • A-weighted emission sound pressure level at working stations: 70 dB(A).
-
Page 15: Additional Safety Precautions For Gas Heated Tumble Dryer
1.4 Copyright This manual is intended solely for consultation by the operator and can only be given to third parties with the permis- sion of Electrolux Professional AB company. 1.5 Ergonomics certification The human body is designed for movement and activity but physical stress injuries as a result of static and repetitive movements or unfavorable working postures may occur. -
Page 16: Symbols
User Manual In case several machines are managed by the same operator the repetitive movements will increase and as a conse- quence of this the related biomechanical risk will increase exponentially. The possible postural risks are the interaction with the door handle both in case the machine is placed directly on the floor without a base and in case the machine is placed on top of a washing machine. -
Page 17: Warranty Terms And Exclusions
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec- tronic format. Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling agents to obtain optimal results and maintain product efficiency over time. -
Page 18: Operating Panel
User Manual 3 Operating panel fig.X01076 Display Control knob... -
Page 19: Program Description
User Manual 4 Program description There are two types of programs, automatic programs and time programs. Automatic programs has moisture detection and will stop when selected dryness is achieved. Time programs has no moisture detection and will stop when the preset or selected time has ended. 4.1 Lagoon programs The following table shows some examples of available programs and a short description of those: Automatic programs... -
Page 20: General Programs
User Manual 4.2 General programs The following table shows some examples of available programs and a short description of those: Automatic programs Description COTTON Denim and terry. EXTRA DRY The program will stop when set dryness is achieved. COTTON Cotton and terry. CARE The program will stop when set dryness is achieved. -
Page 21: Handling
User Manual 5 Handling 5.1 Load Note! Remove all objects from pockets and make sure there are no metal objects such as screws, pins etc. left. Metal objects might cause damage to the drum. Make sure the filter is clean. fig.X01072A... -
Page 22: How To Start The Machine
User Manual Load the goods into the machine and close the door. The recommended maximum load is 7.5 kg / 16.5 lbs. fig.X01071 5.2 How to start the machine Time programs Select program with the control knob. Example of programs HIGH MEDIUM NO HEATING... -
Page 23: Additional Functions
User Manual Coin operated machines Select program with the control knob. Example of programs HIGH MEDIUM NO HEATING Insert correct amount of coins to start the machine and/or press the control knob. After start it is possible to add time for the selected program. Insert more coins to add time. 5.3 Additional functions There is a menu with additional functions available for selection after start. - Page 24 User Manual Clean the filter The filter must be cleaned after each drying cycle. fig.X01072A Leave the door open when ready. This is to prevent that moisture stays in the machine and develop bacteria and mould.
-
Page 25: Error Codes
User Manual 6 Error codes A fault in the program or in the machine is indicated by an error code on the display. Some of these error codes can be solved easily without contacting service personnel. Error Text Cause/Action code 12:11 DRYING ERROR WITH RMC The RMC system (Residual moisture system) in the machine indicates that the garment is not... -
Page 26: Every Day
User Manual 7.3 Every day Check that the machine does not operate with the door or the filter drawer open, if so, the machine must be placed out of order until repairs are made. Note! Contact qualified service personnel to disconnect power from the affected machine. Clean the door, door glass, door gasket and other external parts. - Page 27 User Manual Remove any lint and dust around the machine.
-
Page 28: Machines With Heat Pump
User Manual 7.4 Machines with heat pump 7.4.1 Second lint filter There are two warning messages indicating that the second filter shall be cleaned: 1. “CLEAN FIRST AND SECOND FILTER.” 2. “CLEAN FIRST AND SECOND FILTER. IF NOTICE REMAINS, CONTACT RESPONSIBLE FOR CHANGING THE SPECIAL FILTER.”... -
Page 29: Disposal Information
User Manual 8 Disposal information 8.1 Disposal of appliance at end of life Before disposing of the machine, make sure to carefully check its physical condition, and in particular any parts of the structure that can give or break during scrapping. The machine’s parts must be disposed of in a differentiated way, according to their different characteristics (e.g. - Page 32 www.electroluxprofessional.com...
