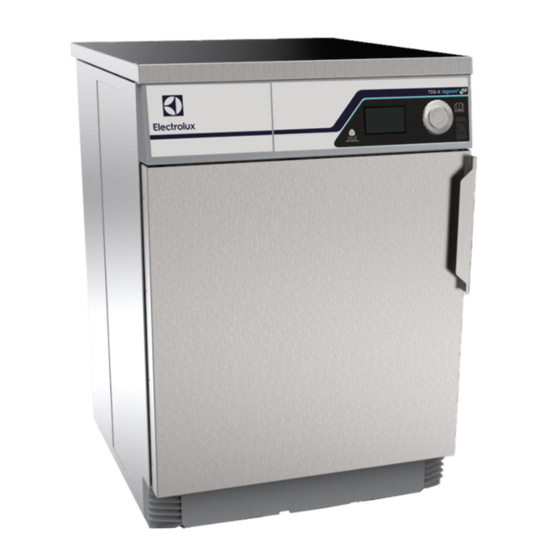

- Page 1 User manual Tumble dryer TD6–6 LAB Type N1130.. 438921540/EN Original instructions 2022.09.01...
-
Page 3: Table Of Contents
Contents Contents 1 Safety Precautions ..........................5 General safety information......................6 Commercial use only........................6 Symbols............................6 2 Warranty terms and exclusions......................7 3 Operating panel ..........................8 4 Program description ..........................9 General.............................9 Program description ........................9 5 Handling ............................10 Load ............................10 How to start the machine ......................11 Additional functions........................12 When program has ended ......................13 6 Error codes ............................14... -
Page 5: Safety Precautions
User manual 1 Safety Precautions • Servicing shall be carried out only by authorized personnel. • Only authorized spare parts, accessories and consumables shall be used. • The machine is not to be used if industrial chemicals have been used for cleaning. •... -
Page 6: General Safety Information
User manual • Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. -
Page 7: Warranty Terms And Exclusions
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec- tronic format. Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling agents to obtain optimal results and maintain product efficiency over time. -
Page 8: Operating Panel
User manual 3 Operating panel fig.X01076 Display Control knob... -
Page 9: Program Description
User manual 4 Program description 4.1 General The machine is equipped with a number of programs adapted to the range of use to which the machine is intended — different markets use different programs. The following program description is a short description of some exam- ples of programs that can be used. -
Page 10: Handling
User manual 5 Handling 5.1 Load Note! Remove all objects from pockets and make sure there are no metal objects such as screws, pins etc. left. Metal objects might cause damage to the drum. Make sure the filter is clean. fig.7363... -
Page 11: How To Start The Machine
User manual Load the goods into the machine and close the door. The recommended maximum load is 6 kg. 5.2 How to start the machine Time programs Select program by turning the control knob. Example of programs NORMAL LAB LOW LAB NO HEATING Start the machine by pressing the control knob. -
Page 12: Additional Functions
User manual Automatic programs Select program by turning the control knob. Example of programs NORMAL EXTRA DRY EXTRA DRY NORMAL NORMAL IRON DRY IRON DRY Start the machine by pressing the control knob. 5.3 Additional functions There is a menu with additional functions available for selection after start. When pressing the control knob the menu will appear on the display. -
Page 13: When Program Has Ended
User manual End a program It is possible to end a program after start. Select END PROGRAM and activate. When pressing the control knob the program will be ended. Status Select STATUS MENU and activate. The status menu shows the status for inlet air temp, outlet air temp, RMC and heat for the machine. Statistics Select STATISTICS and activate. -
Page 14: Error Codes
User manual 6 Error codes A fault in the program or in the machine is indicated by an error code on the display. Some of these error codes can be solved easily without contacting service personnel. Error Text Cause/Action code 12:11 DRYING ERROR WITH RMC The longest permitted RMC time has been exceeded. -
Page 15: Maintenance
User manual 7 Maintenance 7.1 General It is the responsibility of the owner of the machine/the laundry manager to make sure that maintenance is periodically performed. Note! Lack of maintenance may deteriorate the performance of the machine and may cause damage to components. -
Page 16: Fresh Air Intake
User manual Remove any lint and dust around the machine. 7.4 Fresh air intake At regular basis, check that the fresh air intake on the front of the machine is not clogged by lint and dust or otherwise blocked. Clean with a vacuum cleaner. fig.7386... -
Page 17: Check The Air Flow
User manual 7.5 Check the air flow To fulfill the requirements in standard ISO 6330:2012, the air flow in the machine needs to be correct adjusted. Check the air flow at least every 12 months. The air flow should be adjusted to 140±5 m /h. -
Page 18: Disposal Information
User manual 8 Disposal information 8.1 Disposal of appliance at end of life Before disposing of the machine, make sure to carefully check its physical condition, and in particular any parts of the structure that can give or break during scrapping. The machine’s parts must be disposed of in a differentiated way, according to their different characteristics (e.g. - Page 20 Electrolux Professional AB 341 80 Ljungby, Sweden www.electroluxprofessional.com...
