Summary of Contents for Electrolux Professional Lagoon TD6-7

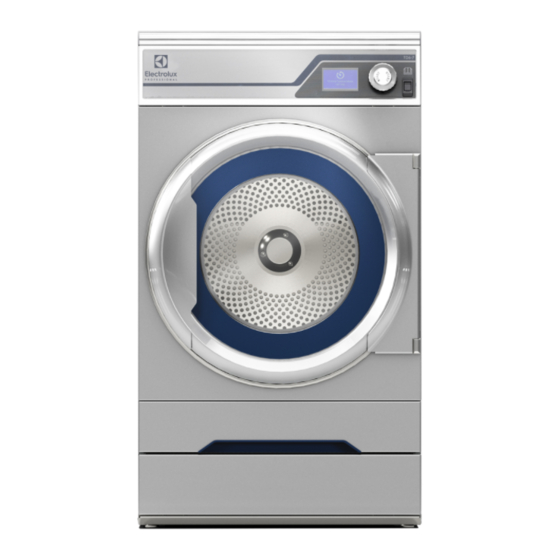

- Page 1 Installation manual Tumble dryer TD6–7 Lagoon Type N1... 438905990/EN Original instructions 2022.09.09...
-
Page 3: Table Of Contents
Contents Contents 1 Safety Precautions ..........................5 Gas heated tumble dryer ......................7 General information ........................7 Commercial use only........................7 Ergonomics certification ......................8 Symbols............................8 2 Warranty terms and exclusions......................9 3 Technical data...........................10 Electric heated machines......................10 3.1.1 Drawing .........................10 3.1.2 Technical data ........................ 11 Gas heated machines ......................12 3.2.1 Drawing .........................12 3.2.2 Technical data ........................13... -
Page 5: Safety Precautions
Installation manual 1 Safety Precautions • Servicing shall be carried out only by authorized personnel. • Only authorized spare parts, accessories and consumables shall be used. • The machine is not to be used if industrial chemicals have been used for cleaning. •... - Page 6 Installation manual • Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire.
-
Page 7: Gas Heated Tumble Dryer
Installation manual 1.1 Gas heated tumble dryer • Before installation, check that the local distribution conditions, nature of gas and pres- sure and the adjustment of the appliance are compatible. • The machine is not to be installed in rooms containing cleaning machines with per- chloroethylene, TRICHLOROETHYLENE or CHLOROFLUOROCONTAINING HY- DROCARBONS as cleaning agents. -
Page 8: Ergonomics Certification
Installation manual 1.4 Ergonomics certification The human body is designed for movement and activity but physical stress injuries as a result of static and repetitive movements or unfavorable working postures may occur. The ergonomic features of your product, the ones which may influence your physical and cognitive interaction with it, have been assessed and certified. -
Page 9: Warranty Terms And Exclusions
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec- tronic format. Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling agents to obtain optimal results and maintain product efficiency over time. -
Page 10: Technical Data
Installation manual 3 Technical data 3.1 Electric heated machines 3.1.1 Drawing fig.X01022 Operating panel Door opening, ⌀ 392 mm Electrical connection Exhaust connection 1050... -
Page 11: Technical Data
Installation manual 3.1.2 Technical data Weight, net Drum volume liters Drum diameter Drum depth Drum speed, medium load Rated capacity, filling factor 1:18 (Max. load) Rated capacity, filling factor 1:22 (Recommended load) Heating: Electricity Optimum air flow, 6.0 kW Optimum static back pressure, 6.0 kW Maximum static back pressure, 6.0 kW Sound power/pressure level at drying* dB(A) -
Page 12: Gas Heated Machines
Installation manual 3.2 Gas heated machines 3.2.1 Drawing fig.X01023 Operating panel Door opening, ⌀ 392 mm Electrical connection Gas connection Exhaust connection 1050... -
Page 13: Technical Data
Installation manual 3.2.2 Technical data Weight, net Drum volume liters Drum diameter Drum depth Drum speed, medium load Rated capacity, filling factor 1:18 (Max. load) Rated capacity, filling factor 1:22 (Recommended load) Heating: Gas Optimum air flow Optimum static back pressure Maximum static back pressure Sound power/pressure level at drying* dB(A) -
Page 14: Machines With Heat Pump
Installation manual 3.3 Machines with heat pump 3.3.1 Drawing fig.X01024 Operating panel Door opening, ⌀ 392 mm Electrical connection Drain for condense water 1050... -
Page 15: Technical Data
Installation manual 3.3.2 Technical data Weight, net Drum volume liters Drum diameter Drum depth Drum speed, medium load Rated capacity, filling factor 1:18 (Max. load) Rated capacity, filling factor 1:22 (Recommended load) Sound power/pressure level at drying* dB(A) 63/48 Average heat emission per drying cycle used to assess ventilation need** Ambient operating temperature ℃... -
Page 16: Setup
Installation manual 4 Setup 4.1 Unpacking Note! For machines with heat pump; the machine must not be laid down or tilted more than 45°. If so, this might damage the heat pump. fig.X00529A Remove the screws and the transportation bracket on each side of the machine. Remove the machine from the pallet. -
Page 17: Recycling Instruction For Packaging
Installation manual 4.2 Recycling instruction for packaging fig.X02403 Fig. Description Code Type Wrapping film LDPE 4 Plastics Corner protection PS 6 Plastics Cardboard packaging PAP 20 Paper Pallet FOR 50 Wood Screw FE 40 Steel Steel Bracket FE 40 Steel Plastic bag PET 1 Plastics... -
Page 18: Wheels
Installation manual 4.3 Wheels For ergonomic reasons the machine is equipped with wheels. The wheels makes it easy to move the machine without lifting it. The wheels can only be used as long as the feet of the machine is not lowered. fig.X01069 4.4 Siting The figure shows recommended distance to walls and/or other machines. -
Page 19: Drain Connection (Only For Machines With Heat Pump)
Installation manual Note! The machine should be positioned so that there will be enough space for working, both for the user and service personnel. Respecting the given recommendations will provide easy access for maintenance and service operations. In case of space limitations, it is possible to install machines without respecting to the given recommendations. If so, keep in mind that it might be necessary to disconnect and move other machines to be able to reach and perform service on affected machine. -
Page 20: Evacuation System
Installation manual 5 Evacuation system 5.1 Air principle Note! It is very important that the machine gets enough fresh air in order to get the best drying result. 5.1.1 Electric- and Gas heated machines The fan creates low pressure in the machine, drawing air into the drum via the heating unit. The heated air passes through the garments and the drum holes and flows out through the filter positioned below the drum. -
Page 21: Machines With Heat Pump
Installation manual 5.1.2 Machines with heat pump The fan creates air flow in the machine, drawing air into the drum via the heating unit. The heated air passes through the garments and the drum holes and flows out through the first filter drawer and continues through the second spe- cial filter just underneath. -
Page 22: Fresh Air
Installation manual 5.2 Fresh air For maximum efficiency and the shortest possible drying time, it is important to ensure that fresh air is able to enter the room from the outside in the same volume as that is blown out of the room To avoid draught in the room it is important to place the air inlet behind the machine. -
Page 23: Shared Exhaust Duct
Installation manual 5.4 Shared exhaust duct It is recommended that each machine is connected to a separate exhaust duct. When several machines shall use the same exhaust duct the exhaust duct must increase after each machine. The recommended diameter increase progression is the one in the table. If several machines are installed on the same exhaust pipe, it is recommended to adjust the airflow on the machines when all machines are started and running a program with no heat. -
Page 24: Adjusting The Air Flow (Not Valid For Tumble Dryers With Heat Pump)
Installation manual 5.6 Adjusting the air flow (not valid for tumble dryers with heat pump) Adjusting the air flow may only be carried out by authorized personnel. Note! For airflow adjustment ability, a damper need to be incorporated into the exhaust piping system. It is important that the machine has the correct air volume compared to each machines effect. - Page 25 Installation manual Measure when the machine is running with a program without heat and with an empty drum. To be able to adjust the air flow for an optimal drying process it is recommended to install a damper in the ducting system.
- Page 26 Installation manual TD6-7 EL ,6kW ,230V/1/50Hz fig.X01558A TD6-7 GAS ,7kW ,120V/1/60Hz fig.X01748 TD6-7 GAS ,7kW ,230V/1/50Hz fig.X01749...
- Page 27 Installation manual Alternative measuring method Adjusting the air flow may only be carried out by authorized personnel. Use a home made U tube manometer, a hose (max. outer ⌀ 10 mm and min. outer ⌀ 5 mm), with water. Insert one end of the hose in the hole (A) (after the plug has been removed), hold the hose according to the picture so that the water is in level.
-
Page 28: Electrical Connection
Installation manual 6 Electrical connection 6.1 Electrical installation The electrical installation may only be carried out by qualified personnel. Machines with frequency-controlled motors can be incompatible with certain types of earth leakage circuit break- er. It is important to know that the machines are designed to provide a high level of personal safety, which is why items of external equipment such as earth leakage circuit breakers are not necessary but is recommended. -
Page 29: Three-Phase Connection
Installation manual 6.3 Three-phase connection Demount the cover panel from the supply unit. Connect the earth and other wires as shown. 3NAC 3NAC 6.4 Electrical connections Heating alternative Main voltage Heating power Total power Recommended fuse Electric heated 220–240V 1 ~ 50/60 machines 220–230V 3 ~... -
Page 30: Gas Connection
Installation manual 7 Gas connection 7.1 Fasten the label Before installing the machine fasten the label “Read the user instructions” on the inside of the door in a suitable place and at the front panel. The label must have the correct country code, choose the correct label from the gas kit. Read the technical Read the technical instructions before... -
Page 31: Gas Installation
Installation manual 7.3 Gas installation This gas appliance is build to run on natural gas (group I2H and I2E), commonly identified by GNH. Japan to run on LPG (group I3B/P) 2800 Pa inlet pressure, no regulation. This default gas appliance is built to be installed at not over than 610 m (2001 ft) high altitude otherwise a kit for high altitude must be installed to the machine. -
Page 32: Test Run
Installation manual Liquied petro- Gas category Inlet pressure Injector pres- Injector size (⌀ Air reducing Label number May be avail- leum gases (mbar) sure (mbar) plate (mm) able in follow- ing countries Butane mixture 28-30 / No regulation 1.35 490375693 BE, CH, CY, CZ, ES, FR, Propane... -
Page 33: Converting Instructions
Installation manual 7.6 Converting instructions • Disconnect the power to the machine. • Demount the back panel. • Remove the nozzle (1). • Mount the new supplied nozzle. fig.7506A • Loosen the measuring branch screw (2) 1/4 turn; connect a manometer to the measuring branch. •... -
Page 34: Data Label
INJECTOR:Ø 2.53 NATURAL GAS : G20 (INLET PRESS.: 20-25 MBAR, CAL. VAL. 37780 KJ/M3) For safety reasons use only genuine spare parts. Made in Sweden Electrolux Professional AB 341 80 Ljungby, Sweden WXXXXX 9868XXXXXX Product no.: 09XXX / 99XXXXX Serial no.:... -
Page 35: Reversing The Door
Installation manual 8 Reversing the door Disconnect the power to the machine. Demount the hinges and remove the door. Remove the upper hinge first. fig.X01074 Remove the filter drawer from the machine. fig.X01081A... - Page 36 Installation manual Demount the front panel. fig.X1081B Disconnect the door switch cable. Remove the upper screw, the cover and the lower screw on the right side. Remove the screws on the left side to release the reed switch bracket holding the door switch cable. Pull the door switch cable through the hole to release it.
- Page 37 Installation manual Demount the brackets and fasten them on the opposite side. Make sure to fasten them according to the figure. fig.X01094 On the reed switch bracket, pull out and move the door switch cable from the upper to the lower position according to the figure.
- Page 38 Installation manual Turn the reed switch bracket up side down and mount it on the right side. Pull the door switch cable out through the hole and connect it. Fasten the reed switch bracket with the screws on the right side. Remount the cover and fasten the upper and lower screw on the left side.
- Page 39 Installation manual Insert the filter drawer. fig.X01097 Turn the door up side down with the inside facing towards you. Remount the lower hinge first. Position the door on the lower hinge. fig.X01098...
- Page 40 Installation manual Put the upper hinge on the door and then fasten the hinge while it is on the door. fig.X01099 Connect the power to the machine. Test run the machine.
-
Page 41: At First Power Up
Installation manual 9 At first power up When the installation is complete and the power is connected for the first time you will be forced to make the following settings. When one setting is ready you will automatically enter the next one. •... - Page 42 Installation manual If the direction is wrong, swap two of the three phases to the left on the connection terminal. fig.7119 Check the heat • Let the machine work for five minutes on a program with heat. • Check that the heating is working by opening the door and feel if there is heat in the drum. During a drying cycle, when the square in the lower right corner is fully ticked, it indicates that the heating unit is ac- tive / ON.
-
Page 43: Disposal Information
Installation manual 11 Disposal information 11.1 Disposal of appliance at end of life Before disposing of the machine, make sure to carefully check its physical condition, and in particular any parts of the structure that can give or break during scrapping. The machine’s parts must be disposed of in a differentiated way, according to their different characteristics (e.g. - Page 44 Electrolux Professional AB 341 80 Ljungby, Sweden www.electroluxprofessional.com...
