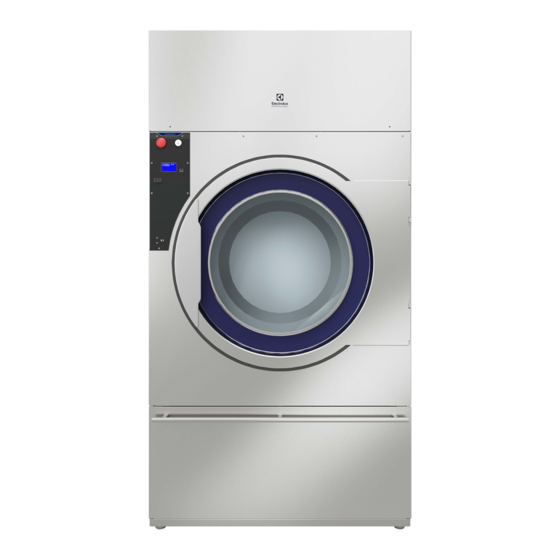

Electrolux Professional TD6-60 User Manual

Electrolux Professional TD6-60 User Manual

Hide thumbs Also See for TD6-60:

Advertisement

Quick Links

User manual
Tumble dryer
TD6–45, TD6–45SLD, TD6–60, TD6–60SLD
Type N4...
438917993/GB, IE
Original instructions
2023.03.22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TD6-60 and is the answer not in the manual?

Questions and answers

Summary of Contents for Electrolux Professional TD6-60

  • Page 1 User manual Tumble dryer TD6–45, TD6–45SLD, TD6–60, TD6–60SLD Type N4... 438917993/GB, IE Original instructions 2023.03.22...
  • Page 3: Table Of Contents

    Contents Contents 1 Safety Precautions ..........................5 Additional safety precautions for gas heated tumble dryer .............6 General safety information......................6 Commercial use only........................7 Ergonomics certification ......................7 Symbols............................7 2 Warranty terms and exclusions......................8 3 Operating panel ..........................9 Options ...........................10 4 Program description .......................... 11 General...........................
  • Page 5: Safety Precautions

    User manual 1 Safety Precautions • Servicing shall be carried out only by authorized personnel. • Only authorized spare parts, accessories and consumables shall be used. • The machine is not to be used if industrial chemicals have been used for cleaning. •...
  • Page 6: Additional Safety Precautions For Gas Heated Tumble Dryer

    User manual • Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire.
  • Page 7: Commercial Use Only

    User manual 1.3 Commercial use only The machine/machines covered by this manual is/are made for commercial and industrial use only. 1.4 Ergonomics certification The human body is designed for movement and activity but physical stress injuries as a result of static and repetitive movements or unfavorable working postures may occur.
  • Page 8: Warranty Terms And Exclusions

    Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec- tronic format. Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling agents to obtain optimal results and maintain product efficiency over time.
  • Page 9: Operating Panel

    User manual 3 Operating panel Standard models Sliding door models Display Up- and down arrows that are used to scroll up and down through the menus on the display. Start- and pause button...
  • Page 10: Options

    User manual 3.1 Options The machine can be equipped with several combinations of options. The following tables explains the function of each knob/button. Drum rotation speed knob Use the knob to adjust the rotation speed of the drum. Use the following table as a guide to set the optimum drum speed. Optimum drum speed Too fast drum speed Too slow drum speed...
  • Page 11: Program Description

    User manual 4 Program description 4.1 General The machine is equipped with a number of programs adapted to the range of use to which the machine is intended — different markets use different programs. The following program description is a short description of some exam- ples of programs that can be used.
  • Page 12 Check that there are no moist areas in the load after finished drying process. Avoid entanglement of loaded items during drying process. To achieve disinfection of the laundry, in Electrolux Professional washing machines, it is necessary to use Global Disinfection programs during drying.
  • Page 13 User manual Program name Care label Program description and display symbol Normal temperature. NORMAL TEMP LARGE TEXTILES The program will stop automatically when the fabric is dry. This program is suitable when drying large fabrics such as bed sheets, table cloths, curtains ect. The program is built to prevent the fabric from tangling together.
  • Page 14: Handling

    User manual 5 Handling 5.1 Load Note! Remove all objects from pockets and make sure there are no metal objects such as screws, pins etc. left. Metal objects might cause damage to the drum. Make sure the filter is clean. Load the goods into the machine and close the door.
  • Page 15: How To Start The Machine

    User manual 5.2 How to start the machine Automatic programs Select program with the up- and down arrows. Start the machine by pressing Time programs Select program with the up- and down arrows. Start the machine by pressing After start it is possible to change the time for the selected program: •...
  • Page 16: Additional Functions

    User manual 5.3 Additional functions There is a menu with additional functions available for selection after start. When pressing the menu will ap- pear on the display. Select from the menu with the up- and down arrows and press to activate. Note! Some of the functions may not be available or active on your machine.
  • Page 17: Tilting Operation For Easy Unloading

    User manual 5.4.1 Tilting operation for easy unloading When program has ended open the sliding door. fig.X02439 Start tilting by turning the knob all the way to right position. The machine will start tilting forward and it will be easier to unload.
  • Page 18: Clean The Filter Compartment

    User manual 5.4.3 Clean the filter compartment Check the filter compartment. Clean if necessary. It is unnecessary to remove the lint filter for cleaning. The air system of the machine ensures that lint and dust settle automatically at the bottom of the filter compartment. Standard machine Machine with sliding door When opening the filter door, first place one hand at the edge/end of...
  • Page 19: Error Codes

    User manual 6 Error codes A fault in the program or in the machine is indicated by an error code on the display. Some of these error codes can be solved easily without contacting service personnel. Error Text Cause/Action code 12:11 DRYING ERROR WITH MB The MB system (Moisture balance) in the machine indicates that the garment is not dry...
  • Page 20: Maintenance

    User manual 7 Maintenance 7.1 General It is the responsibility of the owner of the machine/the laundry manager to make sure that maintenance is periodically performed. Note! Lack of maintenance may deteriorate the performance of the machine and may cause damage to components.
  • Page 21 User manual Standard machine Machine with sliding door When opening the filter door, first place one hand at the edge/end of Use both hands positioned according to the illustration when opening the railing (near the magnet that holds the door) and pull until the door the filter door.
  • Page 22: Machines With Moisture Balance (Mb)

    User manual For machines with sliding door Check the door packing (B) and clean if necessary (use a moist cloth). fig.X02451 7.4 Machines with Moisture Balance (MB) At regular basis, wipe off/clean drum and lifters with citric acid (Acidum citricum). If soap/softener residue remains, it is recommended also to use a coarse sponge.
  • Page 23: Disposal Information

    User manual 8 Disposal information 8.1 Disposal of appliance at end of life Before disposing of the machine, make sure to carefully check its physical condition, and in particular any parts of the structure that can give or break during scrapping. The machine’s parts must be disposed of in a differentiated way, according to their different characteristics (e.g.
  • Page 24 Electrolux Professional AB 341 80 Ljungby, Sweden www.electroluxprofessional.com...
