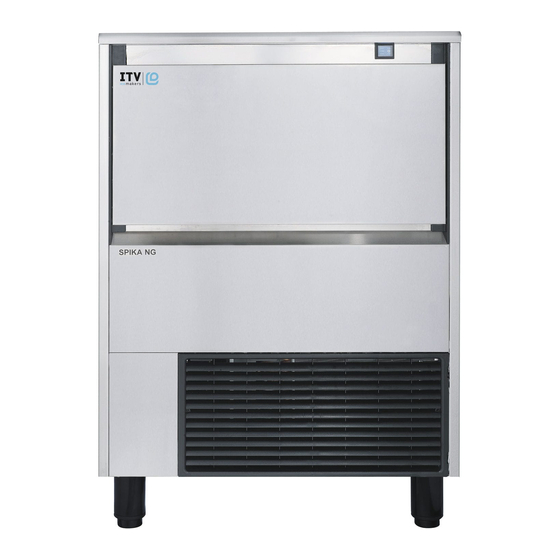

ITV SPIKA NG 50 Service Manual

Ice cube maker
Hide thumbs Also See for SPIKA NG 50:
Table of Contents

Advertisement

Quick Links

Download this manual
ICE CUBE MAKERS - UNDERCOUNTER MODELS
SPIKA NG 50
SPIKA NG 70
SPIKA NG 100
SPIKA NG 150
ICE CUBE MAKERS - MODULAR MODELS
SPIKA MS 220
SPIKA MS 400-22
SPIKA SERIES
SERVICE MANUAL
SPIKA SERIES
SERVICE MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPIKA NG 50 and is the answer not in the manual?

Questions and answers

Related Manuals for ITV SPIKA NG 50

Summary of Contents for ITV SPIKA NG 50

  • Page 1 SERVICE MANUAL SPIKA SERIES SERVICE MANUAL SPIKA SERIES ICE CUBE MAKERS - UNDERCOUNTER MODELS SPIKA NG 50 SPIKA NG 70 SPIKA NG 100 SPIKA NG 150 ICE CUBE MAKERS - MODULAR MODELS SPIKA MS 220 SPIKA MS 400-22...
  • Page 2 SERVICE MANUAL SPIKA SERIES INDEX INTRODUCTION..........................4 1.1.- Warning ............................4 1.2.-Reception of the machine ......................6 INSTALLATION ..........................7 2.1.- Placing of the ice maker ....................... 7 2.2.-Levelling of the ice maker ......................7 2.3.-Installation of modular equipments on top of bins ................8 2.4.-Minimum distance to obstacles ......................
  • Page 3 SERVICE MANUAL SPIKA SERIES 5.7.-Short production cycle ......................... 25 5.8.-Water filling timeout ........................25 5.9.- Machine Stacking ........................26 Refrigeration diagram ........................27 MAINTENANCE AND CLEANING PROCEDURES ................. 28 7.1.- Cleaning water distribution system for under counter models (NG)..........28 7.2.- Cleaning water distribution system for modular models (MS)............
  • Page 4 SPIKA SERIES 1. INTRODUCTION Thank you for purchasing a ‘Spika Series’ Ice Cube Maker by ITV. You have purchased one of the most reliable ice-making products on the market today. Carefully read the instructions contained in this manual since they provide important information relative to safety during installation, use, and maintenance.
  • Page 5 To call to an authorized technical service. Disposal of the ice maker: ITV encourages to follow the regulations of each country regarding eco- friendly disposal of electric and electronic devices such this one. User who is wanting to dispose of this equipment must contact the manufacturer and follow the method to appropriate differentiated collection for the subsequent treatments.

  • Page 6: Reception Of The Machine

    SERVICE MANUAL SPIKA SERIES 1.2.-RECEPTION OF THE MACHINE Inspect the outside packing. In case of damages, make the corresponding claim to the carrier. To confirm the existence of damages, unpack the machine in the presence of the carrier and state any damage on the equipment on the reception document or freight document.

  • Page 7: Installation

    SERVICE MANUAL SPIKA SERIES 2. INSTALLATION 2.1.- PLACING OF THE ICE MAKER This ice maker is not designed for outdoor operation. The icemaker should not be located next to ovens, grills or other high heat producing equipment. The SPIKA machines are designed to operate at room temperature between 10ºC and 43ºC . There may be some difficulties in ice slab removal under the minimum temperatures.

  • Page 8: Installation Of Modular Equipments On Top Of Bins

    SERVICE MANUAL SPIKA SERIES 2.3.-INSTALLATION OF MODULAR EQUIPMENTS ON TOP OF BINS Modular ice makers should be installed on top of bins, following the instructions contained in this manual. The resistance and stability of the container-machine/s assembly should be verified as well as the fastening elements.

  • Page 9: Water Supply Connection

    SERVICE MANUAL SPIKA SERIES UNDERCOUNTER MODELS MODULAR MODELS 6’’(15cm) Socket Plug 4’’(10c Socket Plug Water inlet Water inlet Water drain drain Bin drain 2.5.- WATER SUPPLY CONNECTION The quality of the water supplied to the ice machine will have an impact on the time between cleanings and ultimately on the life of the product (mainly in water cooled units).
  • Page 10 SERVICE MANUAL SPIKA SERIES Correct Incorrect Incorrect 2.6.1 – DRAIN FORCED CONNECTION This version of drain force allows an installation of the machine where the drain can be located 30 meters horizontally and 1.5 meters high from the machine's water outlet. If the drain pipe runs incorrectly, the pump may not be able to drain the water, because the flow of the pump may be influenced due to the existence of stored air within the circuit.

  • Page 11: Electrical Connection

    SERVICE MANUAL SPIKA SERIES 2.5.- ELECTRICAL CONNECTION It is mandatory to ground the equipment. To avoid possible electric shock on individuals or damages to the equipment, the machine should be grounded pursuant local and/or national regulations as the case may be. The manufacturer shall be held harmless in case of damages arising due to the lack of the ground installation.

  • Page 12: Prior Checking And Start-Up

    SERVICE MANUAL SPIKA SERIES 3. PRIOR CHECKING AND START-UP 3.1.- PRIOR CHECKING a) Is the machine leveled? b) Voltage and frequency are the same as those on the nameplate? c) Are the drains connected and operating? d) Will the ambient temperature and water temperature remain in the following range? ROOM WATER MAXIMUM...
  • Page 13 SERVICE MANUAL SPIKA SERIES 4.- Connect the machine to the power supply. 5.- For under counter models: push the switch on the machine front side. For modular models: push the switch found on the back of the machine and then set the ice-wash switch to the position ice.

  • Page 14: Sequence Of Operation Undercounter Models (Ng)

    SERVICE MANUAL SPIKA SERIES 4. SEQUENCE OF OPERATION UNDERCOUNTER MODELS (NG) Once you connect the machine there is a time delay of 2 minutes during which the water valve is activated to ensure the water tray is filled. Once the time is up, the compressor starts and the pump which recirculates the water from the water tray to the upper distributor which provides a soft and uniform flow of water over the evaporator cells, in which the water starts freezing.
  • Page 15 SERVICE MANUAL SPIKA SERIES PCB connections Outputs compressor Water pump Water inlet valve GC Hot gas valve. Inputs Evaporator temperature NTC probe Safety pressure switch MC Curtain switch PCB push button LED signalling Next to each out relay there is an orange led. Signals relay on Next to each input terminal there is an orange led marking input active.
  • Page 16 SERVICE MANUAL SPIKA SERIES Safety high pressure switch trip function. ON= automatic reset (minimum stop 30 min.) OFF= manual reset (power OFF-ON) Timeout alarms operation ON = activated OFF = unactivated Software selection. Important: Always OFF for Spika models ICE / WATER TIMER SETTING TF (MIN) TW (SEG) 4.2.- ALARMS...
  • Page 17 SERVICE MANUAL SPIKA SERIES 4.2.1 SAFETY HIGH PRESSURE SWITCH When the pressure contact (P) trips, instantly, all outputs switch over to off position. When it is closed again, there are two possibilities: - Dip-switch 10 OFF. Manual reset. The machine remains stopped until reset to Initial start-up. - Dip-switch 10 ON.
  • Page 18 SERVICE MANUAL SPIKA SERIES 4.4 DRAIN FORCED 4.4.1 SEQUENCE OF OPERATION While the machine is turn on, there is water that need to be evacuated between each cycle. There are 2 possible outlet water, one is if the ice in the storage bin melts (#1) and the other is when the production time ends, the water electro valve opens and fills the water tray(#2) to renovate the water.
  • Page 19 SERVICE MANUAL SPIKA SERIES...
  • Page 20 SERVICE MANUAL SPIKA SERIES 4.4.2 CONTROL BOARD PCB connections Outputs Water pump Inputs Lw Water Level Sensor LED signalling There are two LEDs that signals machine status Status signaling. Continuous led LED5 LED6 PUMP RUNNING WATER LEVEL SENSOR...

  • Page 21: Sequence Of Operation -Modular Models (Ms)

    SERVICE MANUAL SPIKA SERIES 5. SEQUENCE OF OPERATION -MODULAR MODELS (MS) Initial Start-up: The pump and the drain electro valve are energized during 30 seconds to empty the water tray preventing the scale build-up in water. Then the pump and the drain electro valve are de-energized, and the water inlet valve is energized filling the water tray until the water level sensor detects the water reaches the appropriate level.
  • Page 22 SERVICE MANUAL SPIKA SERIES Production Following outputs are activated: - Compressor (C). - Pump (B). It is activated with delay time t11. - Water inlet valve (EW). It is kept active during time t8, beginning with the start of B. This phase is maintained until the thickness detection sensor gives a signal (which is maintained during time t2).
  • Page 23 SERVICE MANUAL SPIKA SERIES 180” Water inlet valve e/w timeout 3600’’ Production maximum timeout 30” Pump start-up delay time 60” Draining time at cleaning cycle 3600’’ Retry time due to water inlet valve e/w timeout 60’’ Upper unit change 600’’ Maximum time to reset due to security pressure switch 5.2.-MS CONTROL BOARD PCB connections...

  • Page 24: Safety Pressure

    SERVICE MANUAL SPIKA SERIES LED signalling By each out relay there is a red led. Signals relay on By each input terminal there is a green leed marking input active. There are four additional leds what signals machine status (continuous) or alarm (flashing) continuous flashing Stand by...

  • Page 25: Short Production Cycle

    SERVICE MANUAL SPIKA SERIES → - Dip-switch 1 OFF. Manual reset. The machine remains stopped until reset Initial start-up. - Dip-switch 1 ON. Automatic reset. The machine will continue at the position where it was. * Signalling: Flashing in the four LEDs. 5.5.- LONG HARVEST If the harvest time is longer than 3 min.

  • Page 26: Machine Stacking

    SPIKA SERIES 5.9.- MACHINE STACKING It is possible to install two modular machines stacked one above the other with the ITV MS stacking kit (part number 6586). The switchboard must have a connector permitting to connect the boards of both machines with a single cable and also a jumper with the indication: →...
  • Page 27 SERVICE MANUAL SPIKA SERIES 6 Refrigeration diagram...

  • Page 28: Maintenance And Cleaning Procedures

    SERVICE MANUAL SPIKA SERIES 7 MAINTENANCE AND CLEANING PROCEDURES It is the User’s responsibility to keep the ice machine and ice storage bin in a sanitary condition. Ice machines also require occasional cleaning of their water systems with a specifically designed chemical.
  • Page 29 SERVICE MANUAL SPIKA SERIES c) Remove the back metal lid and the top panel (if it need be to make easier the cleaning operations). d) Remove the auxiliary pipe for drain operations near the pump and empty the water tray. Return it to their original position to avoid water spill.
  • Page 30 SERVICE MANUAL SPIKA SERIES h) Disconnect power. i) Remove the auxiliary pipe to drain and purge out the ice machine scale remover and residue. Replace it. j) Mix enough cleaning solution (as in point e) to clean parts and interior food zone surfaces. k) Remove curtain.
  • Page 31 SERVICE MANUAL SPIKA SERIES o) Sanitize all surfaces of the shield applying liberally the sanitizer solution using a cloth or sponge. p) Sanitize all the interior surfaces of the freezing compartment (including the storage bin) applying liberally sanitizer solution, using a cloth or sponge. q) Return shield to its position.
  • Page 32 SERVICE MANUAL SPIKA SERIES Front panel 3) Prepare a solution of an appropriate product for the cleaning of ice machines (lime). Do not use hydrochloric acid. We recommend the use of any NSF approved scale removal product. In modular machines the water bucket is filled automatically so we recommend to prepare a previous solution To start a cleaning cycle, move the ice-wash switch to the WASH position (position II).
  • Page 33 SERVICE MANUAL SPIKA SERIES MS 400- 22 4) Allow the solution to circulate in the water system for 30-40 minutes and then set the ice- wash switch to the OFF position. 5) To purge out the ice machine scale remover and residue move the ice-wash switch to the WASH (the machine will drain the reservoir and refill it) and then set the ice-wash switch to the OFF position.
  • Page 34 SERVICE MANUAL SPIKA SERIES 10) Clean the interior surfaces of the freezing compartment (including walls, plastic parts of the evaporator, distributor...) and the front panel with the cleaner solution using a brush or cloth. 11) Mix a solution of sanitizer using approved sodium hypochlorite food equipment sanitizer to form a solution with 100 to 200 ppm free chlorine yield.

  • Page 35: Cleaning The Bins (For Undercounter Models)

    SERVICE MANUAL SPIKA SERIES 7.3.- CLEANING THE BINS (FOR UNDERCOUNTER MODELS) 1) Disconnect the machine, close water faucet and empty storage bin of ice 2) Use the cleaner/water solution to clean all surfaces of the bin. Use a nylon brush or cloth.

  • Page 36: Water Condenser

    SERVICE MANUAL SPIKA SERIES WATER CONDENSER The water condenser may require cleaning due to scale build-up. The cleaning procedures require special pumps and cleaning solutions. They must be performed by qualified maintenance or service personnel. 7.5.- EXTERNAL CLEANING OF THE MACHINE Clean the area around the ice machine as often as necessary to maintain cleanliness.

  • Page 37: Technical Specifications

    SERVICE MANUAL SPIKA SERIES 8 TECHNICAL SPECIFICATIONS • SPIKA NG UNDER COUNTER • SPIKA MODULAR...

  • Page 38: Specification Sheets

    SPIKA MS 220 835,5 SPIKA MS 400-22 708,5 820,5 8.2.- SPECIFICATION SHEETS Spika NG50 : https://www.itv.es/cd/docs/spika/itv_sng50_r290_ft2301p50_enes.pdf Spika NG70: https://www.itv.es/cd/docs/spika/itv_sng70_r290_ft2301p50_enes.pdf Spika NG100: https://www.itv.es/cd/docs/spika/itv_sng100_r290_ft2301p50_enes.pdf Spika NG150: https://www.itv.es/cd/docs/spika/itv_sng150_r290_ft2301p50_enes.pdf Spika MS220: https://www.itv.es/cd/docs/spika/itv_ms220_r290_ft2301p50_enes.pdf Wiring diagram Spika NG (undercounter): https://www.itv.es/cd/docs/spika/itv_sng_r290_elec_all.pdf Wiring diagram Spika MS (modular): https://www.itv.es/cd/docs/spika/itv_ms_r290_elec_all.pdf...

  • Page 39: Undercounter Models

    SERVICE MANUAL SPIKA SERIES 9 USER TROUBLESHOOTING GUIDE 9.1.- UNDERCOUNTER MODELS PROBLEM PROBABLE CAUSE SOLUTION None of the electrical parts work. The machine is unplugged. Plug in the machine and verify socket power Front switch on but pilot is off Front pilot on but none is working Curtain not proplyl closed Check curtain free movement and closed position...

  • Page 40: Modular Models

    SERVICE MANUAL SPIKA SERIES PROBLEM PROBABLE CAUSE SOLUTION No ice on evaporator No water in tray. - check water supply - check water valve and strainer - check water leaks Faulty pump. Verify Faulty curtain sensor Check sensor and wiring For further problems call aftersales service 9.2.- MODULAR MODELS PROBLEM...
  • Page 41 SERVICE MANUAL SPIKA SERIES...
