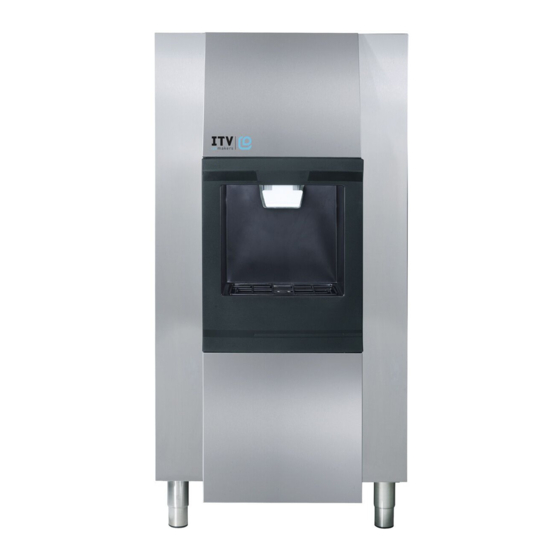

  • Page 1 USER MANUAL MANUAL DEL UTILIZADOR ENGLISH MODELS / MODELOS DHD 200-30 DHD 200-30 W...
  • Page 2 USER MANUAL MANUAL DEL UTILIZADOR...
  • Page 3 INTRODUCTION Thank you for purchasing a ‘DHD’ ICE DISPENSER by ITV ICE MAKERS. You have purchased one of the most reliable machines on the market today. Carefully read the instructions contained in this manual since they provide important information relative to safety during installation, use, and maintenance.
  • Page 4 UPON RECEIPT OF THE MACHINE Inspect the outside packing. In case of damages, make the corresponding claim to the carrier. To confirm the existence of damages, unpack the machine in the presence of the carrier and state any damage on the equipment on the reception document or freight document.
  • Page 5: Installation

    INSTALLATION I. LOCATION OF THE MACHINE This ice dispenser is not designed for outdoor operation. The icemaker should not be located next to ovens, grills or other high heat producing equipment. 2. LEVELING THE MACHINE Screw the leveling legs onto the bottom of the ice dispenser and tighten as far as possible. Use a level on top of the machine.
  • Page 6: Minimum Distance To Obstacles

    Please note that a water filtration system is highly recommended for use with the ice maker atop the dispenser and if the ice maker is an ITV brand, it is mandatory under provisions of the in ice maker warranty.
  • Page 7: Electrical Connection

    5. DRAINAGE Drainage should be located lower than the output of the machine, at 5.9” (150mm) minimum. It is convenient that the drain hose is 1.18” (30mm) inside diameter and with a minimum gradient of 0.36”/ ft (3cm/m), see figure. CORRECT INCORRECT DISPENSER...
  • Page 8: Technical Specifications

    CIRCUIT BREAKER CORD MODELS PHASE DHD 200-30 115/60 115 / 60Hz / 1Ph 3AWG16 5-15P DHD 200-30 W 115/60 115 / 60Hz / 1Ph 3AWG16 5-15P DHD200-30 220/50 220V / 50Hz / 1Ph DHD200-30 W 220/50 220V / 50Hz / 1Ph 7.
  • Page 9: Sequence Of Operation

    2. START-UP Once the installation instructions have been followed, proceed as follows: 1) Open the water inlet (only DHD 200-30 W models). Verify the absence of leakages. 2) Connect the machine to the power supply. 3) Press the water dispenser button (only DHD 2000-30 W models), and verify it is dispensed properly.
  • Page 10: Maintenance And Cleaning Procedures

    2. WATER DISPENSING (ONLY DHD 200-30 W MODELS) When the user presses the water dispensing button, an electro valve allows it to flow, at the correct supply pressure and temperature. The water or ice lost during dispensing operations through the front grid, as well as the melt water from the ice bin, are collected by the drain bin, where they are conducted out of the machine through the drain pipe.
  • Page 11 Clean the outside of the machine as often as necessary to maintain cleanliness, with mild soap and water. Wipe dry with a clean soft cloth. Stainless steel parts can be cleaned with specific products, take care especially to not touch the plastic parts. 2.
  • Page 12 2º 3º 4º 1º The rest of the panels form a unique block. First unplug all the connections of the electrical parts that are mounted on it (LED light, water button, etc…), then unscrew the 2 screws (see figure). The block can be removed by tipping it slightly and extracting it upwards, to release it from the 2 bottom tabs.
  • Page 13 No water is dispensed (only for Water supply failure. Verify the water faucet is open. DHD 200-30 W models). Check the water supply connection. Water leaks. The drain bin is stuck and has overfilled. Disassemble the drain bin as described in chapter 7, empty and clean it.
  • Page 14: Wiring Diagram

    WIRING DIAGRAM Led light 12VDC 45-40 COMPONENTS: Gear motor wheel and agitator Timer Ice dispensing switch Water dispensing switch (only DHD 200-30 W models) Water electro valve (only DHD 200-30 W models)
