Summary of Contents for Logik L714WMB13

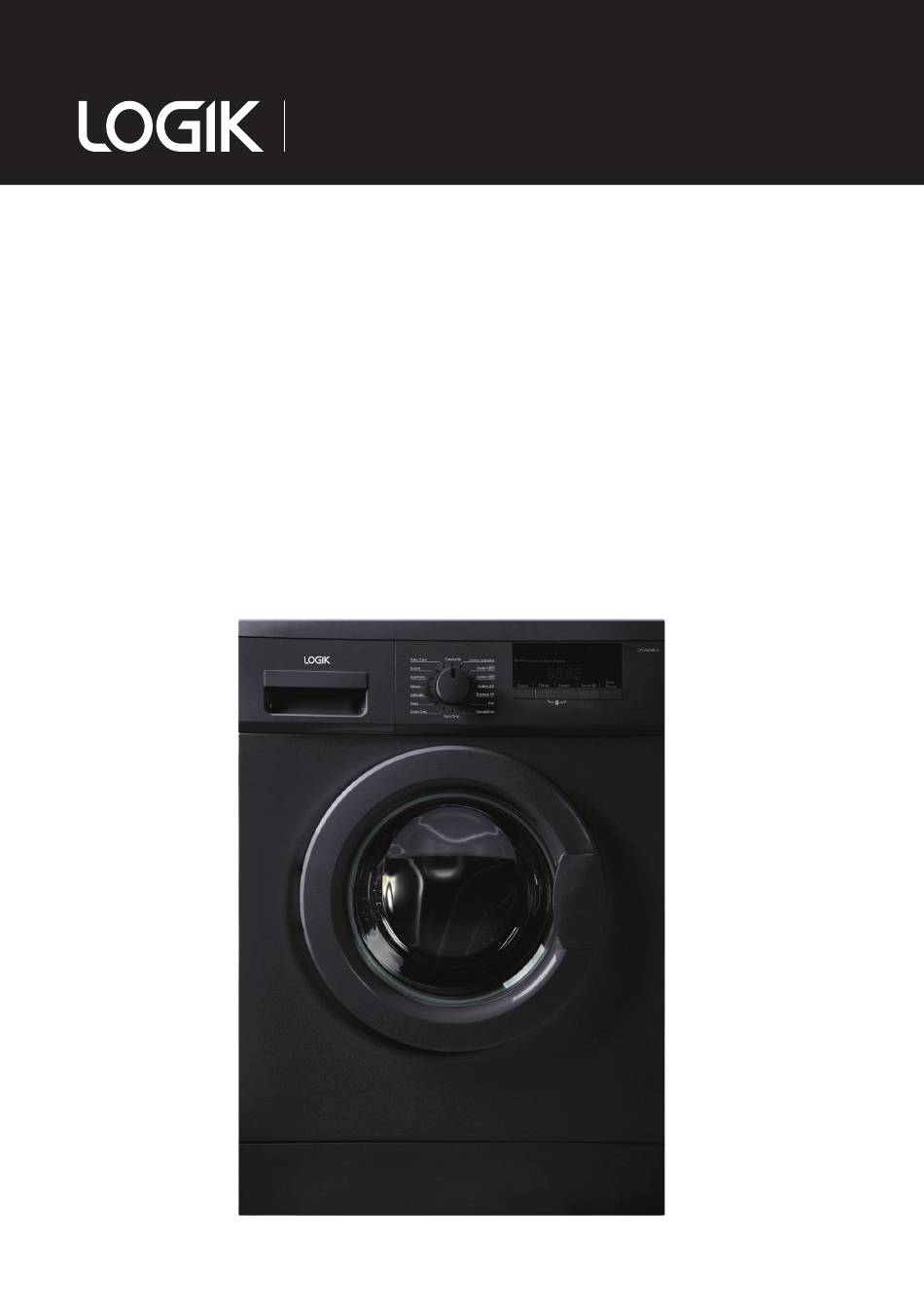

- Page 1 Instruction / Installation Manual 7KG Washing Machine L714WMB13...
-
Page 2: Table Of Contents
Contents Safety Warning ..................................3 Unpacking .................................... 6 Installation ................................... 7 Installing Your Washing Machine ............................7 Choosing the Right Location for Your Washing Machine ......................... 7 Moving and Installing ................................. 8 Removing the Transit Bolts ....................................8 Moving the Washing Machine from One Location to Another ......................8 Hose and Cable Lengths ...................................... -
Page 3: Safety Warning
Safety Warning For your continued safety and to • Keep burning objects such as reduce the risk of injury or electric candles or cigarettes, away from shock, please follow all the safety the washing machine. They may precautions listed below. cause a fire or damage. - Page 4 Power Source and Cable • Make sure your home voltage matches the voltage displayed on • Use an independent household the washing machine. If you are dedicated mains socket, rated not sure, contact an electrician. at 13 Amp 220V to 240V AC. If the washing machine is plugged •...
- Page 5 WARNING • Do not dismantle, repair or modify the washing machine. IT IS HAZARDOUS FOR The washing machine could ANYONE OTHER THAN malfunction and cause a fire or AUTHORISED SERVICE injury. PERSONNEL TO CARRY OUT • This appliance can be used by SERVICING OF REPAIRS children aged from 8 years and WHICH INVOLVE THE...
-
Page 6: Unpacking
Thank you for purchasing your new Logik Washing Machine. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 7: Installation
Installation INSTALLATION Installing Your Washing Machine Please read and follow the instructions carefully. • In addition to the instructions mentioned here, special regulations of the relevant water and power supply companies may apply. If in doubt, have the washing machine connected by a qualified technician. -
Page 8: Moving And Installing
INSTALLATION Moving and Installing Removing the Transit Bolts Four transit bolts keep the interior of the washing machine in place while it’s being moved. They need to be removed before installation. Use a spanner (not supplied) and follow the instructions detailed below. Don’t run the washing machine without removing the transit bolts, as this can cause excessive vibrations and may damage your machine. -
Page 9: Hose And Cable Lengths
INSTALLATION Hose and Cable Lengths How to connect from the left side How to connect from the right side ~80cm ~130cm Favorite ~90cm ~40cm F a vorite 110 -135cm Levelling the Washing Machine There are 4 levelling feet on the underside. They must be adjusted to make sure the washing machine is level. -
Page 10: Water Drain Hose
INSTALLATION Connecting the Water Supply Hose 1. To prevent leakage from the connection 3/4” 3/4” joints, ensure the rubber washer seals are fitted to each end of the water supply min. 10 mm min. 10 mm hose. Do not use without the seals in Plastic joint place. -
Page 11: Connecting To The Mains Supply
INSTALLATION Connecting to the Mains Supply For your safety: • Do not use a mains plug adapter or extension cable. • If the mains cable or mains plug are damaged, stop using them and call a qualified technician for assistance. •... -
Page 12: Product Overview
Product Overview The unit Detergent Control Panel Compartment Door Handle Window Service Panel... -
Page 13: The Control Panel
The Control Panel LED Display • The delay light will be on to indicate the delay time. It will start the programme after the selected hours. • After the wash procedure begins, REMAIN will be illuminated, to display the Programme Dial remaining time, that is , the wash finishing time. -
Page 14: Preparation
Preparation Read the following to understand how best to prepare your laundry for washing. Organising Laundry • Read the washing label on each garment to help you sort your washing into different loads. • Sort the laundry by colour, type of fabric and by how soiled it is. This will help you choose the correct programme and temperature for each wash. - Page 15 • For excessively dirty clothes, select a programme with pre-washing, use ¼ of the detergent to be used in compartment 1 (I) of the detergent drawer and the remaining amount in compartment 2 (II) Dilute viscous fabric softener and fabric conditioner with water. Prevent blockage of the overflow.
-
Page 16: Before First Use
Before First Use Before washing your clothes for the first time, run a full wash programme first: 1. Connect the machine to the mains power supply and the water supply. 2. Put a small amount of detergent in the detergent drawer. Close the drawer. 3. -
Page 17: Selecting The Programme
Selecting the Programme Here are the available programmes, additional functions and option settings. Temperature can be selected separately for certain programmes. Procedure Default Default Default Load(kg) Detergent Box Temp.(˚C) Time (Min) Speed (rpm) Case Case Softener 1400 Case Description Cotton Intensive 1000 Cotton 60°... -
Page 18: Muting & Turning On The Sound
Muting & Turning On the Sound • The machine will beep. • To mute the sound, press “TEMP” for 3 Seconds after starting the wash programme. • To turn on the sound, press “TEMP” again for 3 seconds. The setting will be kept until the next programme. Important Information Washing Delicates (Wool and Silk Programmes) These programmes rock the drum gently for best results on delicate laundry. -
Page 19: How To Set The Child Lock
How to Set the Child Lock The Child Lock prevents children from stopping programmes accidentally. It only locks the control buttons not the Programme Dial. 1. Switch the washing machine on. 2. When the washing machine is operating, press and hold the Delay button and Speed buttons at the same time for 3 seconds to set the child lock. -
Page 20: Maintenance - Cleaning The Washing Machine
Maintenance - Cleaning the Washing Machine Always unplug the washing machine before cleaning. Cleaning the Drum Any rust left inside the drum by metal articles must be removed immediately with chlorine-free detergent. Never use steel wool. Don’t put laundry in the washing machine during the drum cleaning. Cleaning the Exterior of your Washing Machine •... -
Page 21: Cleaning The Drain Filter
Cleaning the Drain Filter Be careful not to burn yourself while cleaning the drain filter. Water draining from the filter compartment may be hot after a high temperature wash. Before cleaning the drain filter, switch off and unplug the washing machine. 1. -
Page 22: Hints And Tips
Hints and Tips Issues Solutions Buttons don’t work • Child lock is activated. Deactivate the child lock function. • The washing machine is operating a wash programme. The Programme Dial was turned to a different programme. • Door doesn’t open •... - Page 23 There’s not much foam. • This can happen if you’ve put powder detergent directly into the drum – you must put it in the detergent drawer. • The amount of foam can vary, depending on the temperature, level and softness of your water. •...
-
Page 24: Questions And Answers
Questions and Answers Issues Reasons Solutions • Check if the door is closed tightly. • Check if power plug is inserted well. Washing machine cannot • Check if water supply tap is opened. start up Check if button Start/Pause is pressed. •... -
Page 25: Error Codes
Check if the clothes is pinned by the door. Others • Please call up the service line if there is any other problem. Specifications Model L714WMB13 Rated Voltage 220 - 240V~ Rated Frequency 50 Hz Maximum Energy Rated Power Input... -
Page 26: Product Fiche
Product Fiche Model: L714WMB13 Rated capacity: 7 kg Energy efficiency class: A+ EU Ecolabel: N/A Energy consumption 224 kwh per year, based on 220 standard washing cycles for cotton programmes set at 60° C and 40° C at full and partial load, and the consumption of the low- power modes. - Page 27 • Programme setting for testing is in accordance with applicable standard EN60456- 2011. • When using the test programmes, wash the specified load using the maximum spin speed. • The actual parameters will depend on how the appliance is used, and may be different from the parameters listed above.
- Page 28 EU. For more information, please contact the local authority or your retailer where you purchased the product. DSG Retail Ltd. (co. no. 504877) Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK. IB-L714WMB13-140107V5...
