Installation Mechanical
Clearances
Provide adequate space around each unit for unrestricted
access for installation and maintenance. Unit dimensions are
given in the Dimensions and Weights chapter. It is critical that
adequate space is provided for service and maintenance of
evaporator, condenser and compressor. A minimum of 36
inches above the unit is recommended for effective compressor
service. A minimum clearance of 3 ft.-6 inches is required to
open the control panel door.
Important:
In all cases, local codes will take precedence
over these recommendations.
Ventilation
Provisions must be made to remove heat generated by unit
operation from the equipment room. Ventilation must be
adequate to maintain an ambient temperature lower than
125°F .
Drainage
Locate the unit near a large capacity drain for drain-down
during shutdown or repair.
Handling
CICD units are shipped stretch-wrapped and bolted to a
shipping skid unless special packaging is arranged.
The skidded unit can be moved by using a fork truck of suitable
capacity. See Dimensions and Weights chapter for unit
weights.
When moving the unit, the lifting forks must be positioned
under the shipping skid as wide as possible. Lift the unit and
move it to the desired location.
Once the unit is at the installation location, remove the stretch
wrap. Inspect the unit for damage and report if damage is
found.
Optional "ship loose" items may be inside the control box,
attached to the skid or shipped separately depending on
options selected.
22

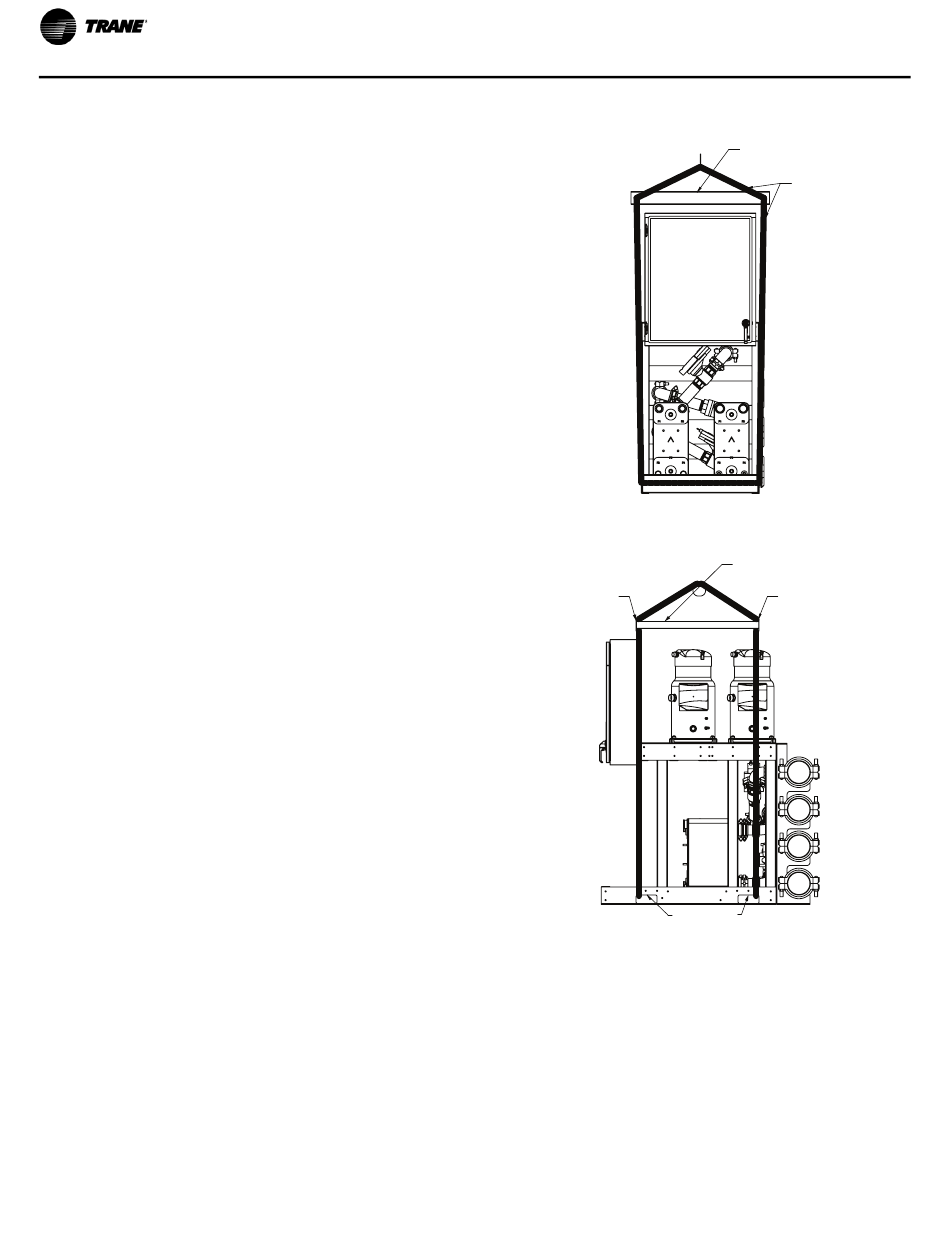

Figure 12. CICD rigging, fork lift pockets
Front View
Spreader Bar
Spreader Bar
Lifting Straps
Spreader
Bar
Spreader Bar
Lifting slots
Side View
CG-SVX044F-EN
