Dimensions and Weights

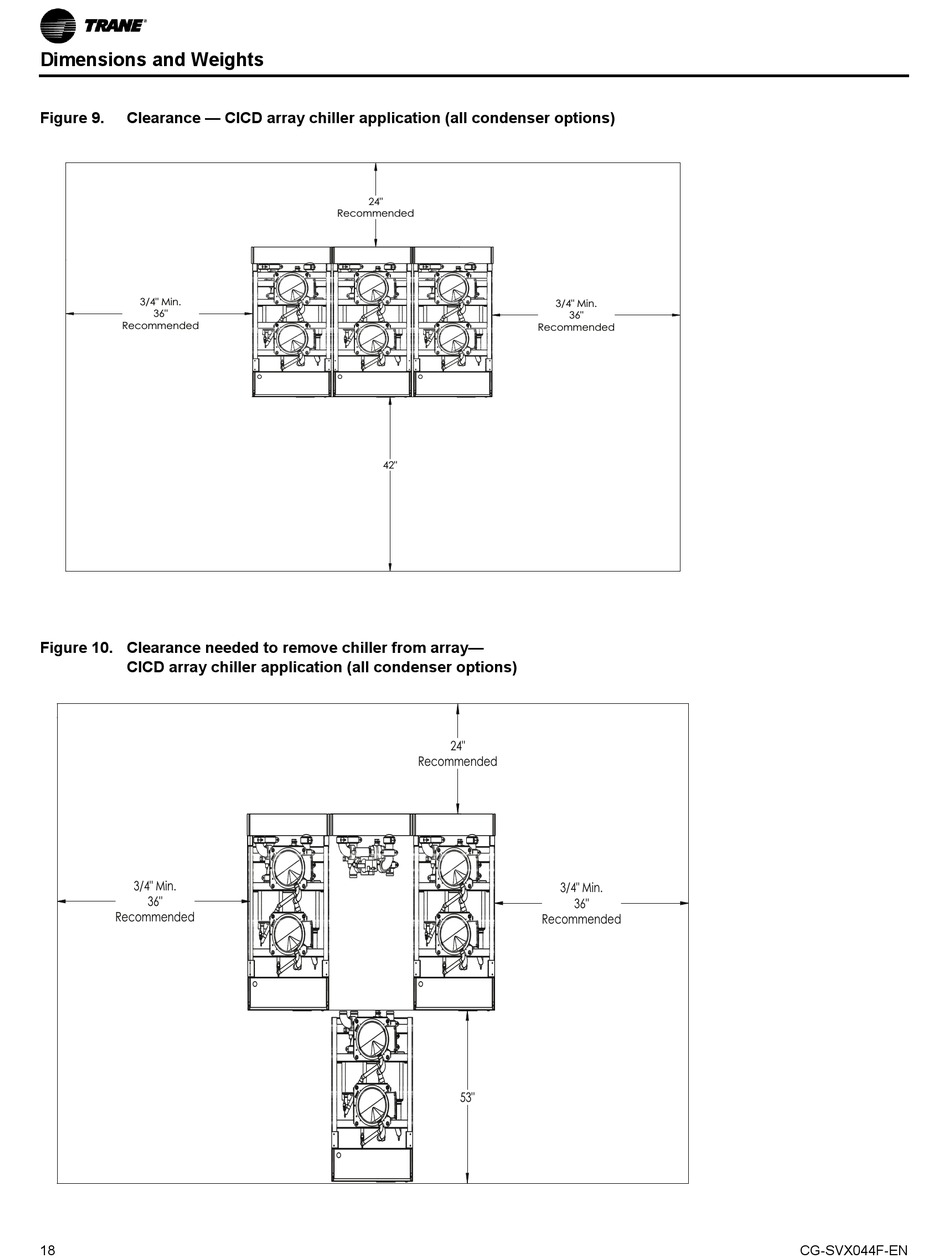

Figure 9.
Clearance — CICD array chiller application (all condenser options)
3/4" Min.
36"
Recommended
Figure 10. Clearance needed to remove chiller from array— 
CICD array chiller application (all condenser options)
3/4" Min.
36"
Recommended
18
24"
Recommended
42"
24"
Recommended
53"
3/4" Min.
36"
Recommended
3/4" Min.
36"
Recommended
CG-SVX044F-EN
