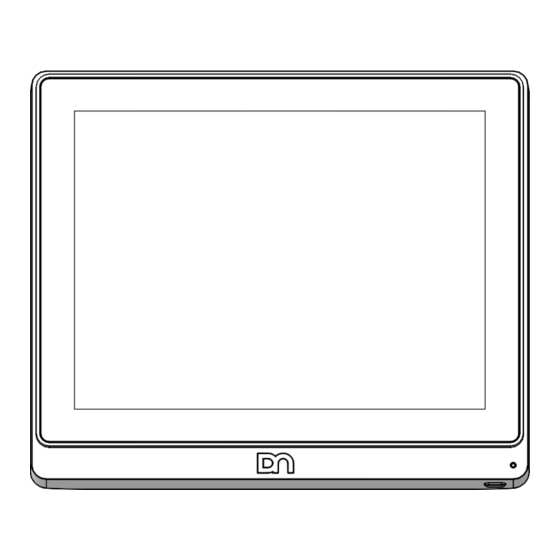

NextGen AIO D2080 Display
01750370850 A
Confidential External
Only Diebold Nixdorf and entities that are granted an express written license by Diebold Nixdorf may
possess or use this material. Unauthorized possession or use is illegal. If you do not have a written
license agreement with Diebold Nixdorf, the Documentation License terms at dnlegalterms.com apply.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NextGen AIO D2080 and is the answer not in the manual?

Questions and answers

Related Manuals for DIEBOLD NIXDORF NextGen AIO D2080

Summary of Contents for DIEBOLD NIXDORF NextGen AIO D2080

  • Page 1 01750370850 A Confidential External Only Diebold Nixdorf and entities that are granted an express written license by Diebold Nixdorf may possess or use this material. Unauthorized possession or use is illegal. If you do not have a written license agreement with Diebold Nixdorf, the Documentation License terms at dnlegalterms.com apply.

  • Page 2: Table Of Contents

    Installing the stand ....................8-6 Connecting the display ...................... 8-7 9 Ergonomic Terminal Workplace ....................9-1 10 Technical Data..........................10-1 10.1 Dimensions ........................10-2 10.2 Projected Capacitive Touch Screen .................. 10-3 10.3 Supported resolution......................10-3 Confidential External Copyright © 2023, Diebold Nixdorf 01750370850 A...

  • Page 3: Manufacturer's Declaration And Approval

    Repair work on the devices should only be carried out by authorized and specially trained personnel. Improper repairs will lead to the loss of any guarantee and liability claims. Extension boards with electrostatically endangered components can be identified with this label. Confidential External Copyright © 2023, Diebold Nixdorf 01750370850 A...
  • Page 4 File owner or brand owner further information. Warranty Diebold Nixdorf guarantees generally a warranty engagement for 12 months beginning with the date of delivery. This warranty engagement covers all those damages which occur despite a normal use of the product.
  • Page 5 There are still some parts that are not reusable. Diebold Nixdorf guarantees the environmentally safe disposal of these parts in a Recycling Center, which is certified pursuant to ISO 9001 and ISO 14001.

  • Page 6: Supplier's Declaration Of Conformity

    2 Supplier’s Declaration of Conformity Product Description: LCD Monitor Model: Display D2080, Display D2080 /pc-touch Party issuing Supplier’s Declaration of Conformity Diebold Nixdorf Singapore PTE. LTD. 30A Kallang Place, #04-01 Singapore 339213 Phone: +65 6747 3828 Responsible Party – U.S. Contact Information...

  • Page 7: Introduction

    There is also a non-touch version available. The D2080 features the unique Diebold Nixdorf PanelLink2™ interface. This allows for operation of the displays via a single cable solution. In addition, the screen also offers standard interfaces such as DVI-D and USB-C DP.

  • Page 8: About This Manual

    Same parts of this book require familiarity and experience in working with operating systems and instal- lation and configuration procedures. NOTE Notes in the manual are marked by this symbol. WARNING This symbol is used for warnings. Confidential External Copyright © 2023, Diebold Nixdorf 01750370850 A...

  • Page 9: Display Overview

    800 x 600 pixels. Application programs should use this resolution. Touch screen per model Model Screen Size Touch Screen Display D2080 /pc-touch 8” Projected Capacitive Touch Display D2080 8” No Touch, Protective Glass Confidential External Copyright © 2023, Diebold Nixdorf 01750370850 A...

  • Page 10: User Interface

    5 User Interface Front panel 1 Status / Activity LED 2 Power Button Confidential External Copyright © 2023, Diebold Nixdorf 01750370850 A...
  • Page 11 When the D2080 is connected via PLINK2™ interface to a BEETLE system, the button also switches the system on or off, provided that the system supports the feature. See section Display Settings / RMT en- able/disable for details. Confidential External Copyright © 2023, Diebold Nixdorf 01750370850 A...

  • Page 12: Connector Panel

    Model only) NOTE For BEETLE systems with PLINK2 interface, a PLINK2 cable can be used to as a single wire interface to supply power, video and data signal to the display. Confidential External Copyright © 2023, Diebold Nixdorf 01750370850 A...

  • Page 13: Display Settings

    7/8 (64bit). The GUIDDCMonitorControl.exe is an executable file and does not require any installation. Below you can find a list of specific settings that can be customized to suit the specific installation needs. Figure 6-1: GUIDDCMonitorControl Confidential External Copyright © 2023, Diebold Nixdorf 01750370850 A...
  • Page 14 Enable/Disable of RMT (Refer to disable Sect 6.1). Setting only applicable for PLINK2 connection to BEETLE system. Power Button LED Enable/Disable of Power Button enable during display Softoff/Sleep (Re- fer to Sect 5.1). Confidential External Copyright © 2023, Diebold Nixdorf 01750370850 A...

  • Page 15: Rmt Enable/Disable

    System no reaction; Display switches off. RMT enabled RMT disabled System no reaction; Display remains off. System no reaction; Display remains RMT disabled System no reaction; Display remains off. System no reaction; Display switches off. Confidential External Copyright © 2023, Diebold Nixdorf 01750370850 A...

  • Page 16: Power Button - Lock/Unlock

    If RMT is enabled, the power button will initiate RMT signal to the host system only when there is single PLINK connection. If the display is powered by DC-Jack or USB-C, then RMT signal will not be initiated. Confidential External Copyright © 2023, Diebold Nixdorf 01750370850 A...

  • Page 17: Touch Technologies

    Dampen the cloth slightly and then clean the screen. NOTE A wrong maintenance may cause damages to the screen, which are not covered by guarantee or warranty. Confidential External Copyright © 2023, Diebold Nixdorf 01750370850 A...

  • Page 18: Initial Setup

    If damage has occurred during shipping or if the package contents do not match the delivery note, immediately inform your Diebold Nixdorf sales outlet. Transport the device only in its original packaging (to protect it against impact and shock).
  • Page 19 1 1 1 Figure 8-2: Removing the lower back cover 5. Feed all for your interface required cables (2) through the lower opening of the stand (1). Figure 8-3: Manage cabling through the stand Confidential External Copyright © 2023, Diebold Nixdorf 01750370850 A...
  • Page 20 7. Feed all for your interface required cables (2) through the opening of the lower back cover (3) and the lower opening in the stand. Figure 8-4: Manage cabling through the lower back cover Confidential External Copyright © 2023, Diebold Nixdorf 01750370850 A...

  • Page 21: Preparing The Display

    – the 12V Power cable to the DC-port (1), the DVI-D cable to the DVI-port (3) and the USB-C to USB-A cable to the USB-C port (2). Figure 8-6: Attaching all cables to the display Confidential External Copyright © 2023, Diebold Nixdorf 01750370850 A...
  • Page 22 Initial setup 6. Mount the cable cover (1) to the display. Figure 8-7: Mounting the cable cover Confidential External Copyright © 2023, Diebold Nixdorf 01750370850 A...

  • Page 23: Installing The Stand

    2. Tighten the screws (2). Figure 8-8: Attaching the display to the stand 3. Secure the lower back cover (1) with screws (2). 2 2 2 Figure 8-9: Mounting the lower back cover to the stand Confidential External Copyright © 2023, Diebold Nixdorf 01750370850 A...

  • Page 24: Connecting The Display

    When uninstalling the stand, always make sure that all cables are disconnected. Connecting the display NOTE Switch off the display and disconnect it from the mains supply before connecting the ca- bles. Confidential External Copyright © 2023, Diebold Nixdorf 01750370850 A...

  • Page 25: Ergonomic Terminal Workplace

    Avoid reflective glaring caused by electric light sources. Position the screen within a preferred and permit- ted range of vision, so that you can look vertically Preferred range of vision onto the screen. Preferred range of vision Confidential External Copyright © 2023, Diebold Nixdorf 01750370850 A...

  • Page 26: Technical Data

    70 °/ 60 ° top/bottom 210 cd/ m2 Brightness Projected Capacitive 210 cd/ m2 Non-Touch 700:1 Contrast Projected Capacitive 700:1 Non-Touch Backlight 4.0 W Power Typical consumption 5.0 W Maximum Confidential External 10-1 Copyright © 2023, Diebold Nixdorf 01750370850 A...

  • Page 27: Dimensions

    Technical Data 10.1 10.1 Dimensions Confidential External 10-2 Copyright © 2023, Diebold Nixdorf 01750370850 A...

  • Page 28: Projected Capacitive Touch Screen

    Frequency (KHz) Frequency (Hz) 720 x 400 70Hz 31.47 70.09 640 x 480 60Hz 31.50 60.00 SVGA 800 x 600 (Native) 60Hz 37.88 60.32 1024 x 768 60Hz 48.36 60.00 Confidential External 10-3 Copyright © 2023, Diebold Nixdorf 01750370850 A...
