- Page 1 BA91W LCD TFT Panel Display User Manual...
- Page 2 Please send us a copy of this page if you have any constructive criticism. We would like to thank you in advance for your comments. With kind regards. Your Opinion: Diebold Nixdorf Pte Ltd Research and Development 151 Lorong Chuan New Tech Park #05-01A/B Singapore 556741 Order-No.: 01750266947 D...
- Page 3 BA91W LCD TFT Panel Display User Manual Edition September 2018...
- Page 4 All brand and product names mentioned in this document are trademarks of their respective owners. Copyright © Diebold Nixdorf The reproduction, transmission or use of this document or its contents is not permitted without express authority. Offenders will be liable for damages.
-
Page 5: Table Of Contents
............8 Preparing the stand ................8 Preparing the display ................. 9 Installing the stand ................10 Connector panel (BA91W /pc-touch) ..........11 Connector panel (BA91W /non-Touch) ........... 12 Connecting the display ..............13 Ergonomic Terminal Workplace ........... 16 On Screen Display (OSD) .............. - Page 6 Supplier’s Declaration of Conformity ........... 25 Abbreviation Index ............... 26...
-
Page 7: Introduction
The low-energy and flicker-free color monitor of the BA91W is a LCD in TFT-technology (Thin Film Transistor). Therefore, it is well suited for multimedia applications as it offers brilliant color representation, an excellent contrast ratio and a high display speed. -
Page 8: Advantages At A Glance
This manual informs you about everything you might need to know for the installation (software and hardware), the operation and the maintenance of your BA91W. Some parts of this book require familiarity and experience in working with operating systems and installation and configuration procedures. -
Page 9: Lcd Tft Panel Display

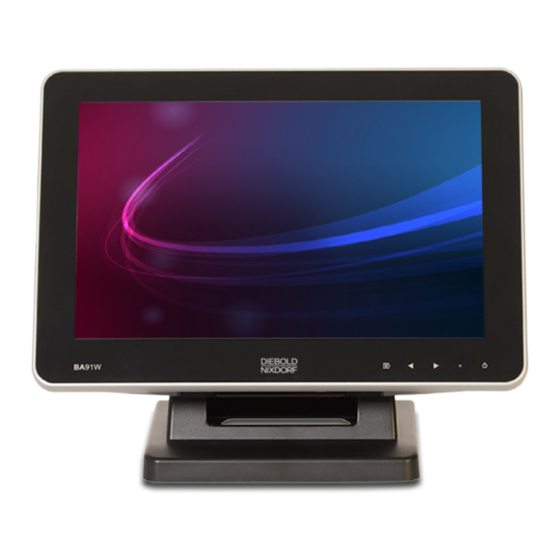

The LCD TFT panel display is an 10.1-inch flat panel display which is absolutely flicker-free. It is designed for a resolution of max. 1280X800 pixels. BA91W with standard cable cover BA91W with standard cable cover type 2 (optional) Operator Panel BA91W User Manual... -
Page 10: Usb Interface
The arrows serve for scrolling forwards or backwards in the menu items. LED off Power off green Power on orange Power save mode the LED lights in the standby mode Out of Range ON/OFF Button With this button you can switch the display on or off. BA91W User Manual... -
Page 11: Osd And Power Button Lock/Unlock
5 seconds to lock/unlock the OSD function. The power button can be lock/unlock through the OSD Menu. - Software method Using „DDC control“ utility provided by Diebold Nixdorf, OSD function and power button can be lock/unlock remotely through the software command. -
Page 12: Projected Capacitive Touch Screen
With a circular motion of the fingers the element on the display can be rotated. This function must be supported by either the operating system or by the application. BA91W User Manual... -
Page 13: Cleaning Instructions
Use a soft, fine-meshed cloth to clean the surface. Dampen the cloth slightly and then clean the screen. A wrong maintenance may cause damages to the screen, which are not covered by guarantee or warranty. BA91W User Manual... -
Page 14: Lnstalling And Securing
Diebold Nixdorf sales outlet. Transport the device only in its original packaging (to protect it against impact and shock). -
Page 15: Preparing The Display
Plug in cable and fasten the two screw to fix cable with the display. Place back the cable cover at the bottom of the display. Pull the cable through the opening of the cable cover. BA91W User Manual... -
Page 16: Installing The Stand
1. Bring the display to above the stand. 2. Place the screws (that were previously tightened halfway through) to the two U-shaped groove on the frame of the stand. 3. Tighten the two screws to secure the display to the stand. BA91W User Manual... -
Page 17: Connector Panel (Ba91W /Pc-Touch)
4. Place in the VESA cover. When uninstalling the stand always make sure that all cables are disconnected. Connector panel (BA91W /pc-touch) The following sockets are located under the bezel of the display: DC-Power Jack USB-B DVI-I / PLINK2™ （12V）... -
Page 18: Connector Panel (Ba91W /Non-Touch)
Only UL Listed LPS (Limited Power Source) power supplies can be used. By connecting the system's cable the screen will be switched on. Connector panel (BA91W /non-Touch) The following sockets are located under the bezel of the display: DC-Power Jack DVI-I / PLINK2™... -
Page 19: Connecting The Display
Before connecting cables switch off the system and disconnect it from the main supply. For display on mounted on a stand 1. Push down the cable cover to release it and slide the cover out of the guide. The connector panel is now accessible. BA91W User Manual... - Page 20 Lay the necessary cables inside for example USB A cable and connect the plug. Make sure that cables are not secured by a lock, are loosely inserted into the strain relief. BA91W User Manual...
- Page 21 3. Replace the cable cover. 4. Pull out the cable through the opening. BA91W User Manual...
-
Page 22: Ergonomic Terminal Workplace
Position the screen within a preferred and permit ted 0° range of vision, so that you 40° can look vertically onto the screen. 30° 30° preferred range of vision BA91W User Manual... -
Page 23: On Screen Display (Osd)
There are two ways to exit the OSD menu: via exit or wait for the OSD to time-out (saves changes and exit). The adjustments will be saved in each way. There are a number of parameters that can be set via the OSD menu. BA91W User Manual... -
Page 24: Technical Data
1280 pixel Resolution Vertical 800 pixel Color depth Up to 16.7 Mio. internal LVDS Interface external PLINK2, DVI-I Reading right/left +/- 70° Angle, top/bottom 50°/70° Projected Capacitive 300 cd/ m Brightness Non Touch 310 cd/ m Backlight BA91W User Manual... -
Page 25: Dimensions (Mm)
Dimensions (mm) BA91W BA91W User Manual... -
Page 26: Projected Capacitive Touch Screen
Projected Capacitive Touch Screen Horizontal Resolutions Vertical LCD Technology Projected capacitive Surface Anti-glare Data transfer Power Consumption BA91W Max. 5.10W Typ./Factory Settings 4.20W Standby <=0.5W Soft off <=0.5W BA91W User Manual... -
Page 27: Manufacturer's Declaration And Approval
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. CAN ICES-3 (B)/NMB-3(B) BA91W User Manual... - Page 28 Tested Safety The BA91W has been awarded the cUL- and UL- symbol. User Information Repair work on the devices should only be carried out by authorized and specially trained personnel. Improper repairs will lead to the loss of any guarantee and liability claims.
- Page 29 For further information of the stipulation look at your contract. All parts of the product which are subject to wear and tear are not included in the warranty engagement. Please order spare parts at the Diebold Nixdorf customer service. BA91W User Manual...
- Page 30 Also switch your display off when you take a longer break or finish your work. There are still some parts that are not reusable. Diebold Nixdorf guarantees the environmentally safe disposal of these parts in a Recycling Center, which is certified pursuant to ISO 9001 and ISO 14001.
- Page 31 Supplier’s Declaration of Conformity Product Description: LCD Monitor Model: BA90, BA90 /pc-touch, BA91W, BA91W /pc-touch Party issuing Supplier’s Declaration of Conformity Diebold Nixdorf Singapore PTE. LTD. 151 Lorong Chuan New Tech Park #05-01 A/B Singapore 556741 Phone: +65 6747 3828 Responsible Party –...
- Page 32 Low Voltage Differential Signal On Screen Display SVGA Super Video Graphics Array Thin Film Transistor Technology (LCD Technology) Universal Serial Bus Underwriters Laboratory (standards) Verband Deutscher Elektrotechniker (German Electricians Association) VESA Video Electronics Standard Association Video Graphics Array BA91W User Manual...
- Page 33 Diebold Nixdorf Pte Ltd 151 Lorong Chuan New Tech Park #05-01A/B Singapore 556741 Order No.: 01750266947 D...
