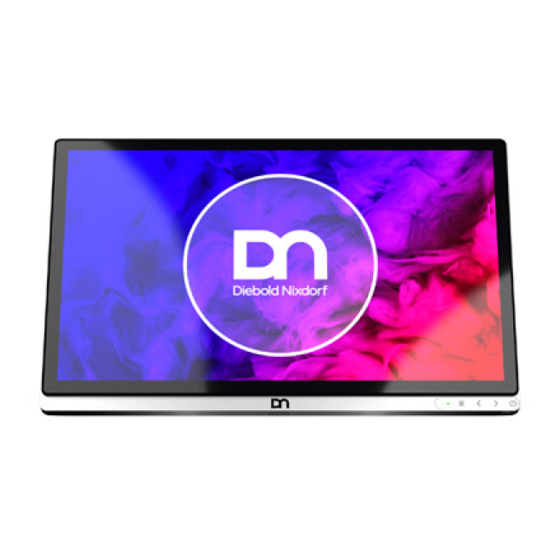

- Page 1 NextGen AIO D1101 Display User Manual 01750342842C...
-
Page 2: Table Of Contents
Preparing the display ..................8-2 8.2.3 Installing the stand ....................8-3 Connecting the display.......................8-4 9 Ergonomic Terminal Workplace ....................9-1 10 Technical data ..........................10-1 10.1 Dimensions (mm) .......................10-2 10.2 Projected Capacitive Touch Screen...................10-3 10.3 Supported resolution ......................10-3 Copyright © 2020, Diebold Nixdorf 01750342842C... -
Page 3: Manufacturer's Declaration And Approval
Repair work on the devices should only be carried out by authorized and specially trained personnel. Improper repairs will lead to the loss of any guarantee and liability claims. Extension boards with electrostatically endangered components can be identified with this label. Copyright © 2020, Diebold Nixdorf 01750342842C... - Page 4 DIN VDE 0100, part 540, Appendix C2, as well as EN50174-2, §5.4.3. Warranty Diebold Nixdorf guarantees generally a warranty engagement for 12 months beginning with the date of delivery. This warranty engagement covers all those damages which occur despite a normal use of the product.
- Page 5 There are still some parts that are not reusable. Diebold Nixdorf guarantees the environmentally safe disposal of these parts in a Recycling Center, which is certified pursuant to ISO 9001 and ISO 14001.
-
Page 6: Supplier's Declaration Of Conformity
2 Supplier’s Declaration of Conformity Product Description: LCD Monitor Model: Display D1101, Display D1101 /pc-touch Party issuing Supplier’s Declaration of Conformity Diebold Nixdorf Singapore PTE. LTD. 30A Kallang Place, #04-01 Singapore 339213 Phone: +65 6747 3828 Responsible Party – U.S. Contact Information... -
Page 7: Introduction
There is also a non-touch version available. The D1101 features the unique Diebold Nixdorf PanelLink2™ interface. This allows for operation of the displays via a single cable solution. In addition, the screen also offers standard interfaces such as DVI-D and USB-C DP. -
Page 8: About This Manual
Same parts of this book require familiarity and experience in working with operating systems and instal- lation and configuration procedures. NOTE Notes in the manual are marked by this symbol. WARNING This symbol is used for warnings. Copyright © 2020, Diebold Nixdorf 01750342842C... -
Page 9: Display Overview
1280 x 800 pixels. Application programs should use this resolution. Touch screen per model Model Screen Size Touch Screen Display D1101 /pc-touch 10.1” Projected Capacitive Touch Display D1101 10.1” No Touch, Protective Glass Copyright © 2020, Diebold Nixdorf 01750342842C... -
Page 10: User Interfaces
When the D1101 is connected via PLINK2™ interface to a BEETLE system, the button also switches the system on or off, provided that the system supports the feature. See section Display Settings / RMT en- able/disable for details. Copyright © 2020, Diebold Nixdorf 01750342842C... -
Page 11: Connector Panel
DVI-D or PLINK 2 for video/data transfer between the system and the TFT dis- play. NOTE For BEETLE systems with PLINK2 interface, a PLINK2 cable can be used to as a single wire interface to supply power, video and data signal to the display. Copyright © 2020, Diebold Nixdorf 01750342842C... -
Page 12: On Screen Display (Osd)
OSD to time-out (saves changes and exit). The adjustments will be saved in each way. There are a number of parameters that can be set via the OSD menu. Please refer to the table on the next page for details. Copyright © 2020, Diebold Nixdorf 01750342842C... -
Page 13: Display Settings
System starts booting; Display switches on by system. System starts shutdown; Display switches off when system shutdown is completed. RMT disabled System starts booting; Display switches on by system. 1 System no reaction; Display switches off. Copyright © 2020, Diebold Nixdorf 01750342842C... -
Page 14: Power Button - Lock/Unlock
NOTE 1 For FW 2.10 onwards. For information about the power button behavior of previous FW versions, please contact a Diebold Nixdorf sales representative. Power button – lock/unlock The power button is unlocked by default. The user can switch the display on and off discretely, indepen- dent of the connected host system. -
Page 15: Touch Technologies
Dampen the cloth slightly and then clean the screen. NOTE A wrong maintenance may cause damages to the screen, which are not covered by guar- antee or warranty. Copyright © 2020, Diebold Nixdorf 01750342842C... -
Page 16: Initial Setup
If damage has occurred during shipping or if the package contents do not match the delivery note, immediately inform your Diebold Nixdorf sales outlet. Transport the device only in its original packaging (to protect it against impact and shock). -
Page 17: Preparing The Display
Plug in cables (1) and (2). Place back the cable cover (1) at the bottom of the display. Pull the cable through the opening of the ca- ble cover. Copyright © 2020, Diebold Nixdorf 01750342842C... -
Page 18: Installing The Stand
Fit the 2 screws (that were previously tight- ened halfway through) to the two holes on the frame of the stand (1). Tighten the two Torx screws (1) to secure the display to the stand. Replace the back cover (1). Copyright © 2020, Diebold Nixdorf 01750342842C... -
Page 19: Connecting The Display
Setup is complete. NOTE When uninstalling the stand always make sure that all cables are disconnected. Connecting the display NOTE Before connecting cables switch off the system and disconnect it from the main supply. Copyright © 2020, Diebold Nixdorf 01750342842C... -
Page 20: Ergonomic Terminal Workplace
Avoid reflective glaring caused by electric light sources. Position the screen within a preferred and permit- ted range of vision, so that you can look vertically Preferred range of vision onto the screen. Preferred range of vision Copyright © 2020, Diebold Nixdorf 01750342842C... -
Page 21: Technical Data
Viewing Horizontal angle 85 °/ 85 ° Vertical 350 cd/ m Brightness Projected Capacitive 350 cd/ m Non-Touch 800:1 Contrast Projected Capacitive 800:1 Non-Touch Backlight 4.2 W Power Typical consumption 5.8 W Maximum Copyright © 2020, Diebold Nixdorf 10-1 01750342842C... -
Page 22: Dimensions (Mm)
Technical data 10.1 10.1 Dimensions (mm) D1101 Copyright © 2020, Diebold Nixdorf 10-2 01750342842C... -
Page 23: Projected Capacitive Touch Screen
Frequency (Hz) 720 x 400 70Hz 31.47 70.09 640 x 480 60Hz 31.47 59.94 SVGA 800 x 600 60Hz 37.88 60.32 1024 x 768 60Hz 48.36 60.00 WXGA 1280 x 800 60Hz 49.70 59.81 Copyright © 2020, Diebold Nixdorf 10-3 01750342842C... - Page 24 Low Voltage Differential Signal On Screen Display Point Of Sales SVGA Super Video Graphics Array Thin Film Transistor Technology (LCD Tech- nology) Underwriters Laboratory (standards) Universal Serial Bus Verband Deutscher Elektrotechniker (German Electricians Association) Copyright © 2020, Diebold Nixdorf 01750342842C...
- Page 25 DIEBOLD NIXDORF 5995 Mayfair Road | North Canton, OH 44720 | United States © 2020 Diebold Nixdorf, Incorporated. All Rights Reserved.
