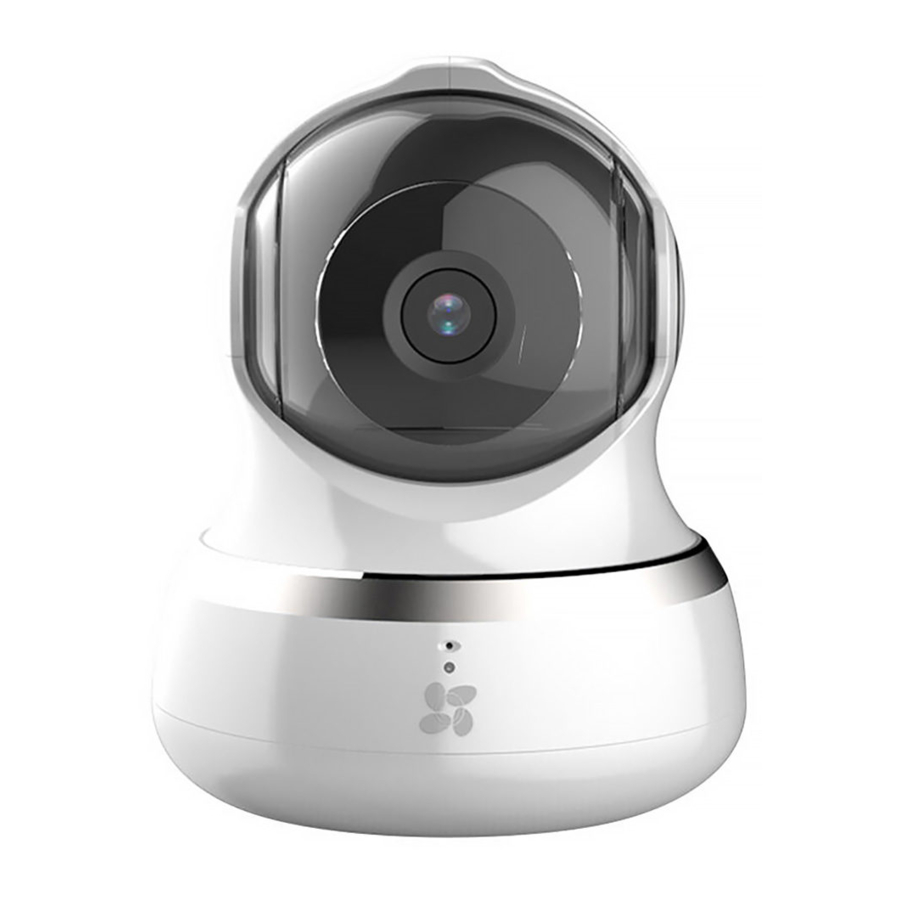

EZVIZ C6B - Smart Home Camera Manual

Setup

Step 1: Power-on
Plug the power cable into the camera, and then plug the power adapter into an outlet as shown in the figure below. The LED indicator will flash red and blue when the camera is ready for setup.

For details of the LED indicator status, refer to the Basic section.

Step 2: Camera Setup

• If the camera fails to connect to your Wi-Fi network, press and hold the RST button for 3s and repeat Step 2.2.
• To select another Wi-Fi network, press and hold the RST button for 3s to reboot the device. When the LED indicator flickers red and blue, you can choose a new Wi-Fi network.

3. To Change the Default Password
   The camera uses the verification code found on the bottom of the camera as the default password. After adding the camera to your network, you will be required to change the device password to ensure video security. The password is used for Image Encryption, too. If you turn on the Image Encryption, you will be required to input your password when you view live video or playback stored video from the camera.

• Go to the camera settings screen to change the default password.- Tap on "Change Password".
• Tap on "Edit".

• Enter the original verification code located on the bottom of the camera.
• Enter the new password. Please use letters and numbers to make a password anywhere from 6 to 12 characters in length.

4. Angle Adjustment
   You can adjust the camera using the EZVIZ app to find the best angle. The camera pans from 0° to 340° and tilts from -80° to 50° (-80° to 0° is the range of privacy mask coverage).

Turning on Smart Mask

• Log into the EZVIZ app.
• Select the camera.
• Tap on the "Smart Mask" icon. The camera lens will rotate up and hide under the lens cover.

Wall Mounting (Optional)

The camera can be mounted on the wall or ceiling.

• Make sure the wall is strong enough to withstand three times the camera's weight.
• The installation surface should be clean and flat.

1. (Optional) If you want to install the microSD card, insert the microSD card into the microSD card slot on the rear side of the camera. Otherwise, you can skip this step.
2. Attach the camera base to the place where you want to affix the camera.
3. (Optional) If the wall is solid, drill and insert three expansion screws.
4. Affix the camera base onto the template using the three metal screws.

5. Make sure the on the base towards you and fix the base to the wall with three screws.
6. Install the camera on the base, and turn it 15° to secure it.


   Connect the power cable to the camera. If the camera was previously connected to the WiFi network, it will automatically connect to the same Wi-Fi network.

Box Content

Basics

LED Indicator Status

	Blue Flicker: The network is properly connected.
	Solid Red: The device is activating. Slow Red Flicker: Invalid network connection. Fast Red Flicker: MicroSD card or other error occurred.
	Alternating Blue and Red Flicker: Camera is ready for Wi-Fi setup.

Name	Description
Power Input	5V±10%
Network Interface	10M/100M Self-adaptive Ethernet Interface
Reset Button	Hold down the reset button for 10 seconds to restore default settings.
MicroSD Card Slot	Insert microSD card for local storage.

Troubleshooting

Q: "The device is offline." or "The device is not registered." prompts appear when adding the camera using the EZVIZ app.

A:

1. Make sure the network, which the camera is connected to, is working properly and the router's DHCP is enabled.
2. Hold down the RESET button for 3 s to reset the settings and set the network again.

How to use the microSD for local sotrage?

A: Insert a microSD card into the card slot and add the camera to your EZVIZ account. Log in the EZVIZ app and enter the "Device Details" interface, if the "Initialize Storage Card" button appears, you need to initialize the microSD card first.
The microSD card storage for the motion detection recording is enabled by default.

Q: The mobile phone cannot receive alarm prompts when the camera is online.

A:

1. Make sure the EZVIZ app is running on your mobile phone.
2. For Android OS mobile phone, make sure the app is running in the background; and for iOS mobile phones, enable the message push function in "Settings > Notification".

Live view or playback failed

A: Make sure your network is well connected. Viewing live video requires a good bandwidth. You can refresh the video, or change a network and try again.
