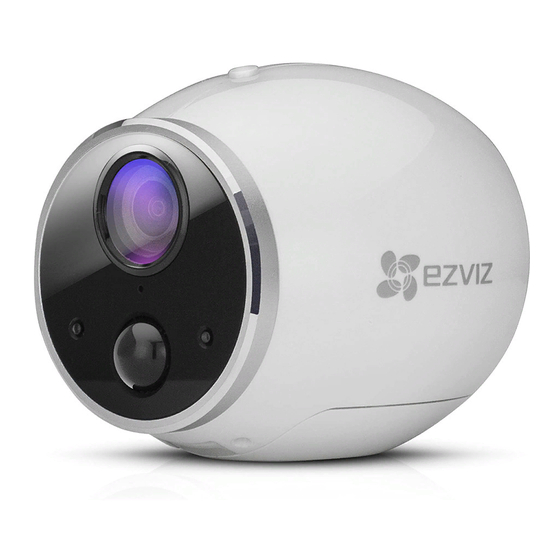

Ezviz CS-CV316 Quick Start Manual

Ezbattery camera
Hide thumbs

Advertisement

Quick Links

Download this manual
ezBattery Camera

Advertisement

loading
Need help?

Need help?

Do you have a question about the CS-CV316 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ezviz CS-CV316

Summary of Contents for Ezviz CS-CV316

  • Page 1 ezBattery Camera...
  • Page 3 EXCEED THE PURCHASE PRICE THE PRODUCT. EZVIZ does not undertake any liability for personal injury or property damage, as the result of product interruption or service termination cause by: a) improper installation or usage other than as requested; b) the protection of national or public interests; c) Force Majeure;...
  • Page 4 Импортер-поставщик в России: ЗАО ''Хиквижн'' Импортер-поставщик в Республике Беларусь:ООО ''Торговый Дом ''АВАНТ- ТЕХНО'' Сайт:www.ezviz.ru Industry Canada ICES-003 Compliance This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two...

  • Page 5: Safety Instruction

    EC DECLARATION OF CONFORMITY Hereby, Hangzhou Hikvision Digital Technology Co., Ltd. declares that the radio equipment type [CS-CV316, CS-W2D] is in compliance with Directive 2014/53/EU. The full text of the EC DECLARATION OF CONFORMITY is available at the following web link: http://www.ezvizlife.com/declaration-of-conformity.
  • Page 6 Camera SYNC Button Microphone Lens LED Indicator Photoresistor Louderseaker Power Interface SD Card Slot Name Description SYNC Button Use to synchronize the base station. With the PIR (Passive Infrared), the device can detect a human body to determine when there is a possible break in and begins to record footage. LED Indicator • Steady Red: The camera is starting.
  • Page 7 Base Station Power Button Main Button/LED indicator Reset Power Interface Network Interface/Network Indicator Name Description LED Indicator • Steady Green: The system works properly. • Steady Blue: Device is not connected to internet. • Flashing Blue: Memory card is formatting or device starting synchronization with the camera.
  • Page 8 Setup The camera should be used with the EZVIZ base station. Base station is sold separately (unless in bundle). Step 1 Insert Battery into Camera - Press the button as shown below to open battery cover. - Insert the battery.
  • Page 9 Make sure network indicator is on or flashing, Step 4 Synchronize Base Station with Camera(s) • Make sure the camera is within 2' to 3' (0.6 m to 1 m) of the base station. • The synchronization process takes about 2 minutes. 1.
  • Page 10 - Connect your mobile device to Wi-Fi. - Search “EZVIZ” in App Store or Google Play to download. - Launch the App and register an EZVIZ user account. 2. Add Base Station to EZVIZ. - Log in the EZVIZ App.

  • Page 11: Camera Installation

    Camera Installation Step 1 Pick a clean and flat surface, indoors or outdoors. • Camera and base station should be within the distance of up to 300 feet (100 m). Stay away from wireless device or barriers to aviod decreasing the communication distance. • Your camera provides a 111-degree viewing angel.

  • Page 12: Charge The Battery

    Charge the Battery The battery is fully charged when it leaves the factory. 1. Install the battery into the camera. 2. Connect the camera with power outlet via power adaptor (5V 1A). 5V 1A Box Contents Battery (x1) Metal Plate (x1) Base Station (x1) Camera (x1) Screw Kit (x1)
