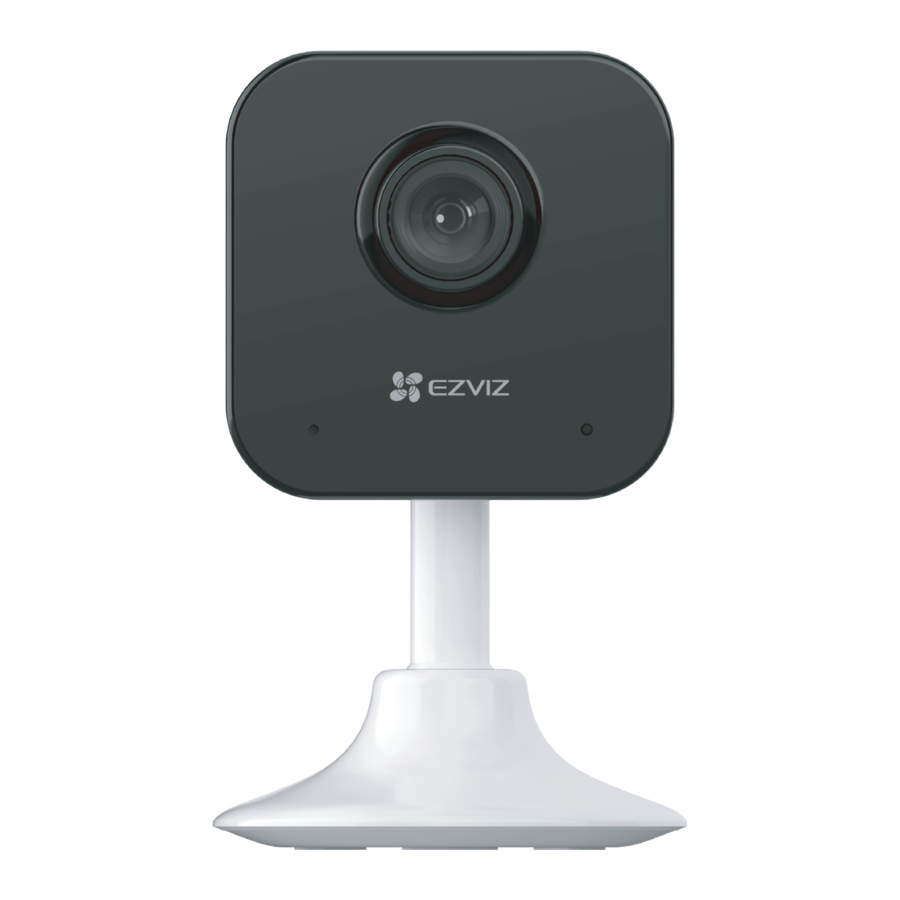

EZVIZ H1c - Smart Home Camera Manual

Overview

Package Contents

Package Contents

Basics

Basics - Part 1
Basics - Part 2

Name Description
LED Indicator Solid Red: Camera starting up.
Slow-flashing Red: Network exception.
Fast-flashing Red: Camera exception (e.g. Micro SD card error).
Solid Blue: Video being viewed in the EZVIZ app.
Fast-flashing Blue: Camera ready for Wi-Fi connection.
Slow-Flashing Blue: Camera working properly.
Micro SD Card
(sold separately)
Initialize the card in the EZVIZ app before using it.
Recommended compatibility: Class 10, maximum space 512GB.
Reset Button Press and hold for 5 seconds to restart and set all parameters to default.
Power Port For powering on the camera.

Setup

Follow the steps to set your camera:

  1. Get the EZVIZ app, and log in to your EZVIZ app account.
  2. Power on your camera.
  3. Add your camera to your EZVIZ account.

Get the EZVIZ App

  1. Connect your mobile phone to Wi-Fi (suggested).
  2. Download and install the EZVIZ app by searching "EZVIZ" in the App Store or Google PlayTM.
  3. Launch the app and register an EZVIZ user account.


EZVIZ App
www.apple.com
play.google.com

information If you have already used the app, please make sure that it is the latest version. To find out if an update is available, go to the app store and search for EZVIZ.

Power-on

Connect the camera to power outlet with the power adapter (5V 1A) to power on.
Power-on

information It is recommended to use the power cable and power adapter included in the package.

Add camera to EZVIZ

  1. When the LED indicator flashes blue quickly, indicates that the camera is ready for Wi-Fi configuration.
    Add camera to EZVIZ
  2. Log in to your account using the EZVIZ app.
  3. On the Home screen, tap "+" on the upper-right corner to go to the Scan QR Code interface.
  4. Scan the QR code on the Quick Start Guide cover or on the body of the camera.
  5. Follow the EZVIZ app wizard to finish Wi-Fi configuration.

information If you want to change your camera's Wi-Fi, press and hold the reset button for 5 seconds and repeat the steps above.
Change your camera's Wi-Fi

Installation

Installation Location

Choose a location with a clear, unblocked field of view and with a good wireless signal to the camera. Please keep the following tips in mind:

  • Remove the protective film from the lens.
  • Make sure the wall is strong enough to withstand three times the weight of the camera.
  • Installation height: Less than 6.6 ft(2 m) above the ground.
  • Recommended installation angle: Tilt down 15 degrees.
    Installation Location
  • It is recommended to set detection sensitivity on EZVIZ app when selecting location. Thus you can verify if motion can be detected in the camera's placement and adjust the sensitivity based on the size and distance of detected object.

Installation Steps

Install Micro SD Card (Optional)

  • Insert the Micro SD card (sold separately) into the card slot as shown in the figure below.
    Install Micro SD Card
    information After installing the Micro SD card, you should initialize the card in the EZVIZ app before using it.
  • In the EZVIZ app, tap the Storage Status in the Device Settings interface to check the Micro SD card status.
  • If the memory card status displays as Uninitialized, tap to initialize it.
    information The status will then change to Normal and it can store videos.

Install Camera

The camera can be placed horizontally or mounted on the ceiling. Here we take ceiling mounting as an example.

Secure the metal plate with foam sticker

Mount by foam sticker

  1. Pick a clean and flat surface.
  2. Secure the metal plate with the foam sticker.
  3. Mount the camera to the metal plate or attach it directly to a magnetic surface.

View Your Device

information The app interface may change due to version update. Please refer to the actual interface.

Live View

When you launch the EZVIZ app, the device page displays as shown below.

You can view and listen to a live feed, take snapshots or recordings, and choose video definition as needed.

information Swipe left and right across the toolbar to see more icons.

Icon Description
Share. Share your device.
Settings. View or change the device settings.
Popup. View the video displayed on top of another app you are using.
Full screen display. Tap to enjoy a full screen display for your filed of view.
Snapshot. Take a snapshot.
Record. Manually start/stop recording.
Talk. Tap the icon, and then follow the on-screen instructions to talk to or listen to people in front of the camera.
Definition. Select video resolution from Ultra HD(only for 5MP device), Full HD, Hi-Def or Standard.
Multi-screen Live. Tap to select window layouts.

information Please refer to the actual interface for specific information.

Settings

In the settings page, you can set the parameters of the device.

Parameter Description
Name Customize the name of your device.
Intelligent Detection You can select between different detection types for your device.
Notification You can manage the device message and EZVIZ app notification.
Audio Settings You can set relevant audio parameters for your device.
Image Settings You can set relevant image parameters for your device.
Light Settings When disabled, the camera indicator will be off.
information Exceptions: The camera indicator will still be on, when the camera is charging or the camera is exception.
CloudPlay You can subscribe and manage the cloud storage.
Record List You can see micro SD card capacity, used space and free space here, and also you can enable or disable cloud storage service here.
Security Settings You can encrypt your videos with encryption password and customize the privacy area.
Network Settings You can see the connection status.
Device Information You can see the device information here.
Restart Device Tap to restart the device.
Share Device You can share the device to you family members or guests.
Delete Device Tap to delete the device from EZVIZ app.

EZVIZ Connect

Use Amazon Alexa

These instructions will enable you to control your EZVIZ devices with Amazon Alexa. If you run into any difficulties during the process, please refer to Troubleshooting.

Before you start, make sure that:

  1. EZVIZ devices are connected to the EZVIZ app.
  2. In the EZVIZ app, turn off the "Image Encryption" in the Device Settings page.
  3. You have an Alexa-enabled device (i.e Echo Spot, Echo-Show, All-new Echo-Show, Fire TV (all generations), Fire TV stick (second generation only), or Fire TV Edition smart TVs).
  4. The Amazon Alexa app is already installed on your smart device, and you have created an account.

To Control EZVIZ devices with Amazon Alexa:

  1. Open the Alexa app and select "Skills and Games" from the menu.
  2. On the Skills and Games screen, search for "EZVIZ", and you will find "EZVIZ" skills.
  3. Select your EZVIZ device's skill, then tap ENABLE TO USE.
  4. Enter your EZVIZ username and password, and tap Sign in.
  5. Tap the Authorize button to authorize Alexa to access your EZVIZ account, so that Alexa can control your EZVIZ devices.
  6. You will see "EZVIZ has been successfully linked", then tap DISCOVER DEVICES to allow Alexa to discover all your EZVIZ devices.
  7. Go back to Alexa app menu and select "Devices", and under devices you will see all your EZVIZ devices.

Voice Command
Discover a new smart device via the "Smart Home" menu in the Alexa app or the Alexa Voice Control function.

Once the device is found, you can control it with your voice. Speak simple commands to Alexa.

information Your device's name for example: "show xxxx camera," can be modified in the EZVIZ app. Every time you change the name of the device, you will need to discover the device again to update the name.

Use Google Assistant

With the Google Assistant, you can activate your EZVIZ device and watch live by speaking Google Assistant voice commands.

The following devices and apps are required:

  1. A functional EZVIZ app.
  2. In the EZVIZ app, turn off the "Image Encryption" and turn on the "Audio" in the Device Settings page.
  3. A TV with functional Chromecast connecting to it.
  4. The Google Assistant app on your phone.

To get started, follow the steps below:

  1. Set up the EZVIZ device and make sure it works properly on the app.
  2. Download the Google Home app from the App Store or Google Play StoreTM and log into your Google account.
  3. On the Myhome screen, tap "+" on the upper-left corner, and select "Set up device" from the menu list to go to the Set up interface.
  4. Tap Works with Google, and search for "EZVIZ", where you will find "EZVIZ" skills.
  5. Enter your EZVIZ username and password, and tap Sign in.
  6. Tap the Authorize button to authorize Google to access your EZVIZ account, so that Google can control your EZVIZ devices.
  7. Tap Return to app.
  8. Follow the above steps to complete the authorization. When synchronization is completed, EZVIZ service will be listed under your list of services. To see a list of compatible devices under your EZVIZ account, tap on the EZVIZ service icon.
  9. Now try some commands. Use the name of the camera that you created when you set up the system.

Users can manage devices as a single entity or in a group. Adding devices to a room allows users to control a group of devices at the same time using one command.

See the link for more information: https://support.google.com/googlehome/answer/7029485?co=GENIE.Platform%3DAndroid&hl=en

Troubleshooting

What do I do if Alexa fails to discover my device?
Check if there are any Internet connecting problems.
Try to reboot the smart device and re-discover the device on Alexa.

Why does the device's status show "Offline" on Alexa?
Your wireless connection might have been disconnected. Reboot the smart device and re-discover on Alexa.
Internet access on your router could be unavailable. Check if your router is connected to the Internet and try again.
information For details about countries that support the using of Amazon Alexa, see its official website.

FAQ

Q: If the camera is offline, will the video recording be continued?
A: If the camera is powered on but disconnect to the Internet, then video recording on micro SD card will continue but cloud recording will stop. If the camera is powered off, both video recordings will stop.

Q: Why the alarm is triggered when nobody in the image?
A: Try to set the alarm sensitivity lower. Please notice that vehicle and animals are also the trigger source.

Q: What if I forget my password?
A: Please go to the EZVIZ app > login page, tap on "Forgot password?" > Enter your account's email address or phone number. (Send)> Input the verification code > Reset your password.

Q: Why can't I receive my verification code?
A:

  1. If you registered the account via email, please check your junk mail. If still haven't received the verification code, you might have email filter/block restricting this email, please check with your email provider.
  2. If you registered an account via mobile number, please confirm whether your mobile can receive SMS short codes or not.
  3. If you still haven't received the verification code, please provide your number, your country, time of request to the support center at support@ezvizlife.com or contact your regional support team.

Q: How to solve Wi-Fi configuration failed?
A: Please check the following settings:

  1. Ensure that your mobile phone is connected to the Wi-Fi and the Wi-Fi network is working properly.
  2. Check the network condition:
    • Make sure your network has no firewall or other limits.
    • Ensure the router can distribute IP address to your device or disable the static IP setting (DHCP is enabled by default on all EZVIZ devices).
  3. Reset your camera; ensure that your device is in ready mode or Wi-Fi configuration mode > then use theEZVIZ app for device Wi-Fi configuration.

information For additional information about the device, please refer to www.ezviz.com
