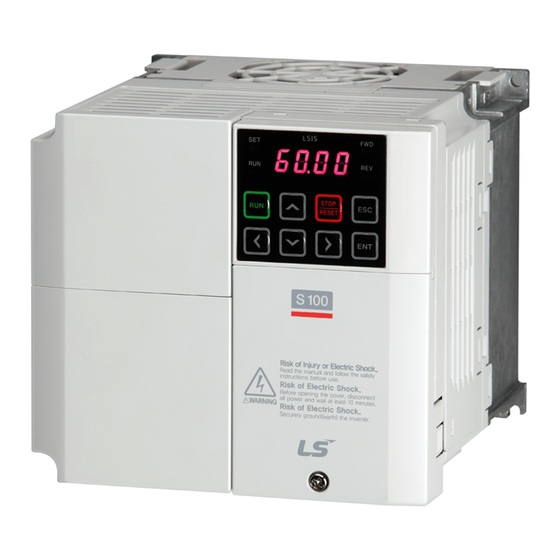

LSIS S100 Quick Start Manual

1. S100 Basic Setup Parameters

The basic drive and motor parameters are shown in Table 1. Set the parameters according to your application.

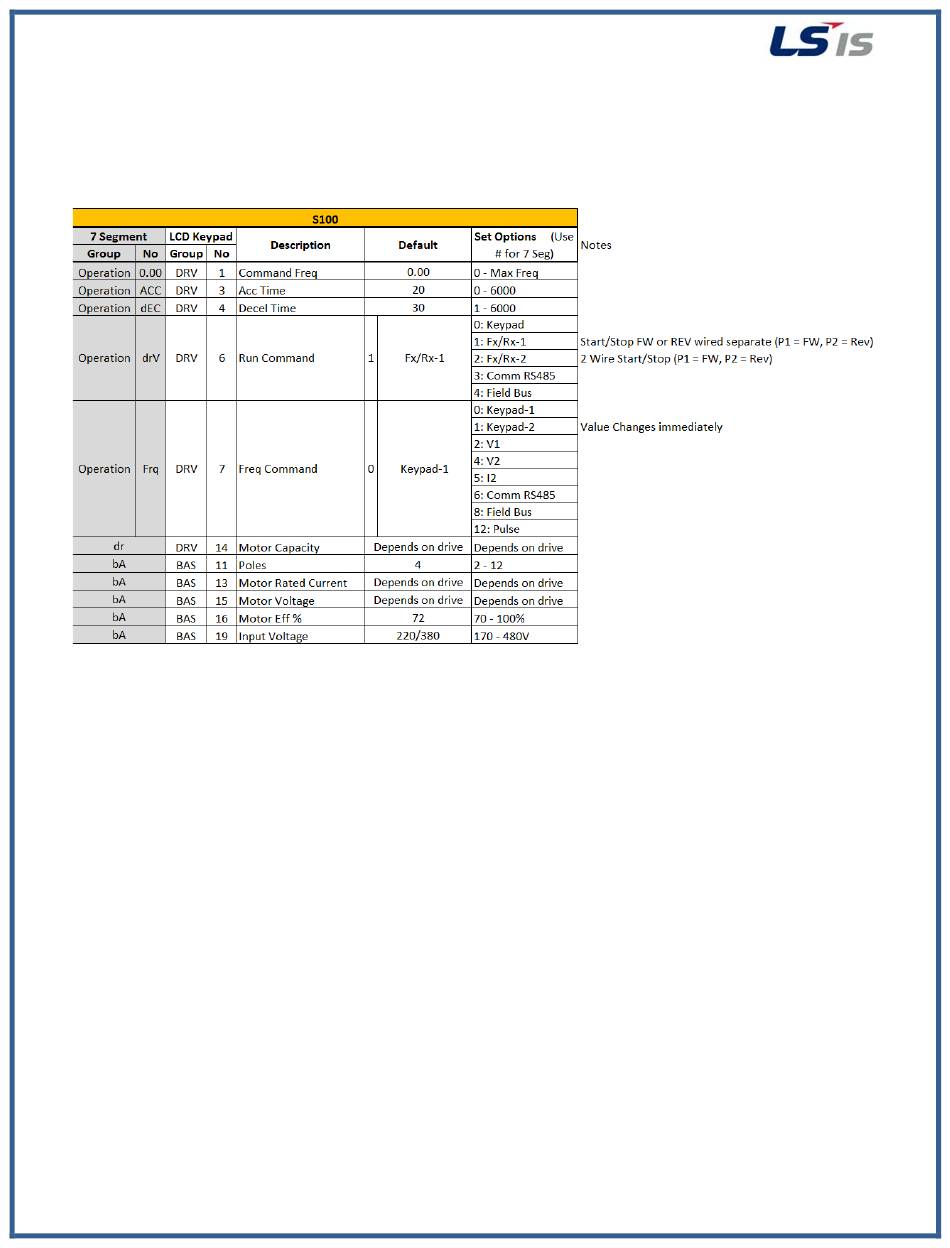

Table 1. S100 Basic Setup Parameters
Note: Many applications will not require changes to the basic setup parameters from their default values.

1.1 S100 Recommended Additional Parameter Changes

The S100 drive has some default settings the user may want to change to obtain better protection of the
drive/motor and the application. These changes are recommended, but not needed for all applications.
Auto Reset
•
Program CON 71 bit 3 to High State (0100).
•
Program PRT 08 (Reset/Restart after a fault) to "1" (Yes).
•
Program PRT 09 (Number of Retries) to a number between 0 -10.
•
Program PRT 10 (Auto Reset Time) to desired time to allow cause of fault to clear and safe starting.
Start on Power Loss
•
Program ADV 10 (Power on Start) to "1" (Yes).
Phase Loss
•
Program PRT 05 (Phase Loss) to detect input and/or output phase loss.
Note: This parameter display is in the form of 2 bits on the smaller (less than 30kW) S100. It is displayed as DIP switches on the larger
S100. Left bit is the Input, Right bit is the Output. "Enabled" is represented with a line on the top of the LED display. "Disabled" is
represented with a line at the bottom of the LED display.
