- Page 1 Installation Guide IoT 5-Band Direct-Connect Cell Signal Amplifier BU-GDE000209-003-121119.indd 1 12/11/2019 2:40:27 PM...
-
Page 2: Table Of Contents

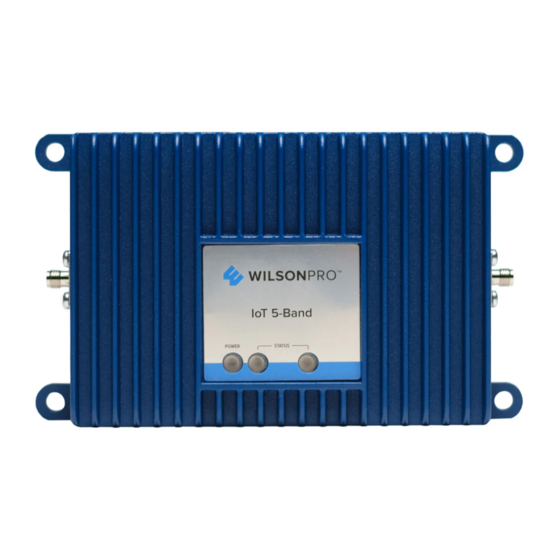

Index Package Contents ............2 IoT Retail Application Steps . - Page 3 IoT 5-Band Direct-Connect Cell Signal Amplifier The WilsonPro IoT 5-Band is a “Direct-Connect” solution for amplifying cellular network capable equipment and devices, including vending machines, ATMs, security panels, and cellular “hotspots”. The IoT 5-Band is “carrier agnostic” and pre- approved by all major cell carriers under FCC “part 20” rules. No additional carrier or FCC approvals are required.
-
Page 4: Package Contents
Package Contents Any Kit Option Below IoT 5-Band Cell Signal Amplifier (460019) Kit Options (IoT 5-Band Cell Signal Amplifier included) IoT DC Hardwire Kit IoT Security Kit IoT 5-Band Kit 460219 461119 460119 30ft. RG-58 12 in. RG-316 ■ 6 ft. RG-174 w/SMA ■... -
Page 5: Iot Retail Application Steps
IoT Retail Application Example Outside Antenna STEP 1 Outside Antenna Placement Mount the Outside Antenna on top of a metal structure that is free of obstructions and 12 in. away from any other antennas. STEP 2 Amplifier Placement 5-Band Amplifier Select a location to install the Signal Amplifier that is away from excessive heat, direct sunlight, moisture and that... - Page 6 STEP 3 Route & Connect Outside Antenna Antenna to Amplifier IoT 5-Band Run the Outside Antenna Cable to Signal Amplifier the Signal Amplifier and attach it to the connector labeled Outside Antenna. Finger tighten only. Outside Antenna STEP 4 Connect Device IoT 5-Band to Amplifier Signal Amplifier...
- Page 7 STEP 5 Power Up the Outside Antenna Amplifier IoT 5-Band Signal Amplifier Plug the Power Supply into an outlet (or connect to hardwired 12V DC source if kit 460219 is used) then connect to end of amplifier labeled POWER. Power Supply Important ■...
- Page 8 Diagram Outside Antenna IoT 5-Band Amplifier Cellular Modem Power Supply Surge Protector BU-GDE000209-003-121119.indd 6 12/11/2019 2:40:35 PM...
-
Page 9: Iot Securtiy Application Steps
IoT Security Application Example Omni Outside Antenna STEP 1 Outside Antenna Placement Mount the Outside Antenna on top of a metal structure that is free of obstructions and 12 in. away from any other antennas. 5-Band STEP 2 Amplifier Placement Amplifier Select a location to install the Signal Amplifier that is away from excessive... - Page 10 STEP 3 Route & Connect Omni Outside Antenna to Amplifier Antenna IoT 5-Band When using the Omni Outside Signal Amplifier Antenna, connect the N-Type connector to the antenna, then the SMA end to the amplifer. Finger tighten only. Omni Outside STEP 4 Connect Device Antenna to Amplifier...
- Page 11 STEP 5 Power Up the Amplifier Omni Outside Antenna IoT 5-Band Connect the provided cable to the Signal Amplifier Security Security Control Panel (adapter may Control Panel be needed) then to the connector labeled Data Device on the Signal Amplifier. Important ■...
- Page 12 Diagram Omni Outside Antenna IoT 5-Band Amplifier to AC power Security Control Panel BU-GDE000209-003-121119.indd 10 12/11/2019 2:40:45 PM...
-
Page 13: Status Light Patterns
Status Light Patterns GREEN This indicates that your amplifier is functioning properly and there are no issues with installation. SOLID RED Band has shuto . This is due to a feedback loop condition called oscillation. This is a built in safety feature that causes a band to shut o to prevent harmful interference with a nearby cell tower. - Page 14 Troubleshooting FIXING RED LIGHT ISSUES This involves Solid Red & Blinking Green/Red lights. ■ Make sure all connections are tight. Un-plug and re-plug in power supply. ■ Increase the distance (horizontally or vertically) between the Outside Antenna and the amplifier. Un-plug and re-plug in power supply. LIGHTS OFF ■...
-
Page 15: Safety Guidelines
Verify that both the Outside Antenna and the adapter extension cable are connected to the Signal Amplifier before powering up the Signal Amplifier. Use only the power supply provided in this package. Use of a non-Wilson Electronics products may damage your equipment. - Page 16 Safety Guidelines (cont.) FOR MORE INFORMATION ON REQUIREMENTS SET OUT IN ISED CPC-2-1-05, SEE BELOW: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08942.html FOR MORE INFORMATION ON REGISTERING YOUR SIGNAL BOOSTER WITH YOUR WIRELESS PROVIDER, PLEASE SEE BELOW: Sprint: http://www.sprint.com/en/legal/signal-boosters.html?=search:booster T-Mobile/MetroPCS: https://support.t-mobile.com/docs/DOC-9827 Verizon Wireless: http://www.verizonwireless.com/wcms/consumer/register-signal-booster.html AT&T: https://securec45.securewebsession.com/attsignalbooster.com/ U.S.
- Page 17 Antenna Info The following accessories are certified by the FCC to be used with the IoT 5-Band Direct-Connect Cell Signal Amplifier. This radio transmitter 4726A-460019 has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device.
-
Page 18: Specifications
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Wilson Electronics LLC could void the authority to operate this equipment. This device contains licence- exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). -
Page 19: Warranty
