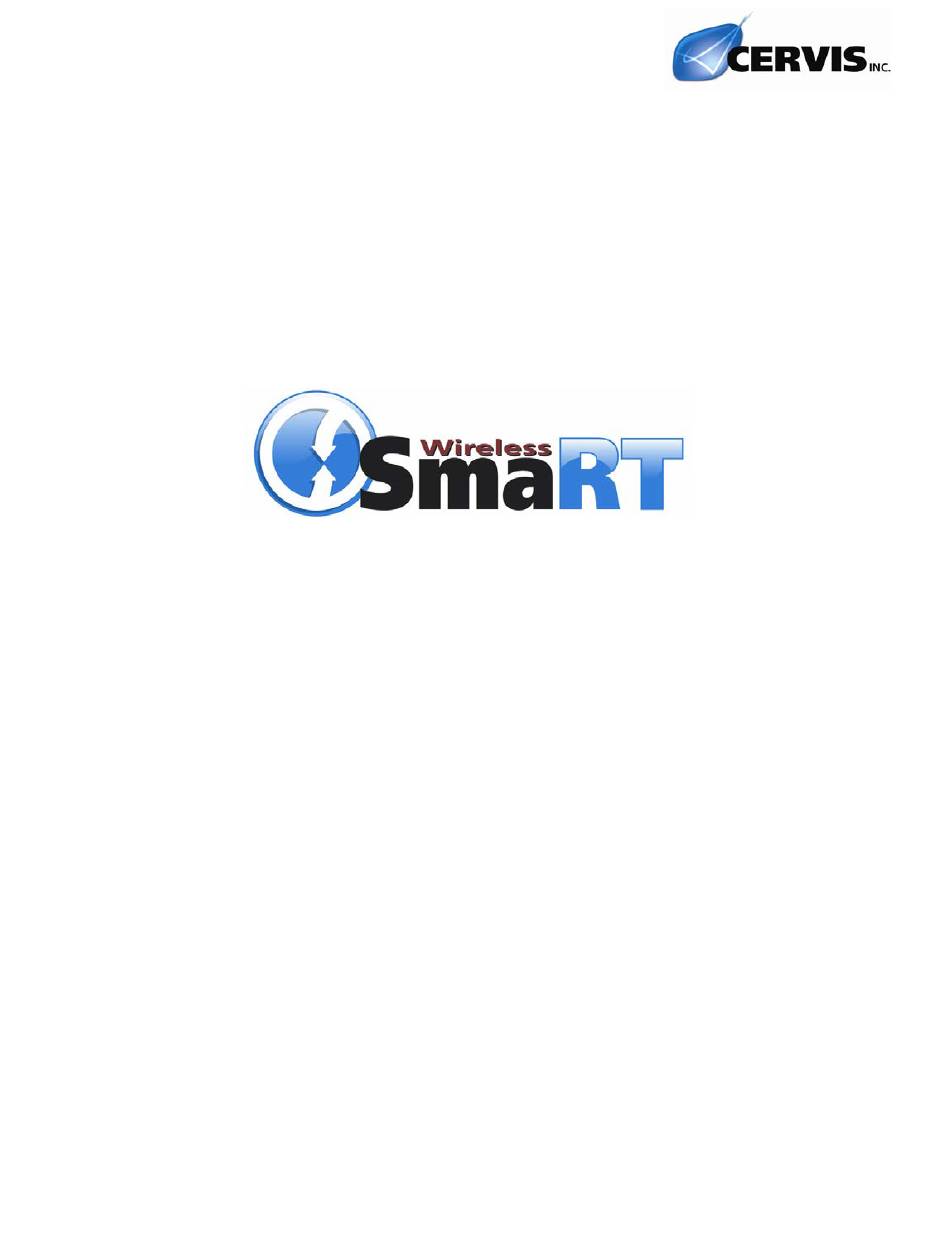

- Page 1 ™ ™ SmaRT DO-918, DO-218 Handheld Remote Control User Manual U055.3-SmaRT_DO-x18_HHR Edit/Update 120713 2012 Cervis, Inc.
- Page 2 This document is the property of Cervis, Inc. and cannot be copied, modified, e-mailed, or reproduced without the express prior written consent of Cervis, Inc. Cervis, Inc. reserves the right to change this manual or edit, delete, or modify any information without prior notification.
-
Page 3: Table Of Contents
Remote Control System Table of Contents Cervis Inc. Safety Precautions ....................1 1.0 SmaRT DO-x18 18-Button Handheld Remote Control ............3 1.1 Handheld Features ......................3 1.2 SmaRT DO-x18 Remote Control System ................ 4 1.3 SmaRT DO-x18 Handheld Battery Installation ............... 5 1.4 Low Battery Warning ...................... - Page 4 SmaRT DO-218, DO-918 Definitions/Notes Associate/Association Mode where by SmaRT handhelds and base units are paired for operation (ID’s exchanged). This mode is used to commission spare handhelds or base units. DSSS Direct sequence spread spectrum; an advance wireless communication technology. Disassociation The process of decommisioning a handheld from a base units ID memory.
-
Page 5: Cervis Inc. Safety Precautions
Remote Control System Cervis Inc. Safety Precautions Read and follow all instructions. Failure to abide by Safety Precautions may result in equipment failure, loss of authority to operate the equipment, and personal injury. Use and maintain proper wiring. Follow equipment manufacturer instructions. - Page 6 The following applies only to SmaRT 218 18-Button Handheld remote control systems. RoHS Compliance Statement Cervis, Inc. complies with the requirements of Restriction of Hazardous Substances (RoHS/WEEE) Specification based on in-house practice and declaration of compliance from our vendors. For additional information concerning RoHS compliance, please contact Cervis, Inc.
-
Page 7: Smart Do-X18 18-Button Handheld Remote Control
Uses direct sequence spread spectrum technology (DSSS) at 900MHz or 2.4GHz • Direct-line-of-sight operation • Single On and Off button with 17-button function control • Three LED indicators • Low voltage warning LED indication • Critical low voltage auto-shutdown 2012 Cervis, Inc. -
Page 8: Smart Do-X18 Remote Control System

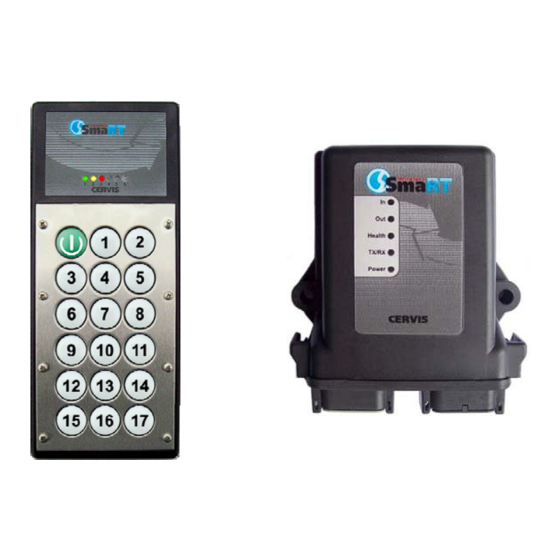

Cervis Engineering Department. Figure 2. Standard SmaRT DO-x18 System The BU-x16F base unit has sixteen solid state FET channels. System configuration is extended as the I/O can also be custom configured by the Cervis Engineering Department to be inputs or outputs. U055.3-SmaRT_DO-x18_HHR... -
Page 9: Smart Do-X18 Handheld Battery Installation
1.3 SmaRT DO-x18 Handheld Battery Installation The handheld remote operates between 1.6 to 3.2VDC powered by four factory installed 1.5V AA alkaline batteries. Cervis, Inc. recommends that fresh spare batteries be at hand at all times that the system is in use. -
Page 10: Low Battery Auto-Shutdown
SmaRT DO-218, DO-918 1.4 Low Battery Warning When low voltage is sensed—approximately 1.7V—the AMBER RX LED will no longer indicate that there is an incoming message. Instead, the LED will begin to flash approximately once per second indicating a Low Battery Warning. Messages are still being received, and the handheld can still be used, but it is recommended that a fresh set of four AA batteries should be installed as soon as possible. -
Page 11: Smart Do-X18 Operation
Button 17 Button 17 is typically unused. Note: As an option provided by the Cervis Engineering Department, Button 17 (or any of the other buttons) can be custom programmed. Contact Cervis, Inc. for details. Buttons 1 (M1) through 16 (M16) are used for base unit output/input control. -
Page 12: Associate Mode
SmaRT DO-218, DO-918 3.0 Associate Mode The Associate Mode is used to establish the communications link between the 18-button handheld remote and base unit on a 1-to-1 basis. Both units must be OFF (powered down), and the handheld must be close to the base unit with a clear line of sight between handheld and base to associate. -
Page 13: Specifications
LED 3 (Red) Used for Association Pulses for 30 sec. – low voltage auto-shutdown indication Pushbuttons Green/White ON/OFF toggle 1 through 16 Function, output control Optional through custom Cervis Engineering Style Latching or Momentary Button Life 5-million operations (typical) 2012 Cervis, Inc. - Page 14 SmaRT DO-218, DO-918 Push-To-Operate means that the outputs under control should only change states when the appropriate button or switch of the handheld is pressed or positioned, and then only for the duration of time that particular output button is pressed. Any unexpected motion that occurs when pressing the output control buttons of the handheld must be investigated.
- Page 15 The Cervis Inc. and SmaRT Wireless logos are trademarks of Cervis, Inc. Contact via Phone: (724) 741-9000 2012 Cervis, Inc. All rights reserved. Content is subject to change without notice. Revised manuals are available for download at www.cervisinc.com. 2012 Cervis, Inc.
- Page 16 SmaRT DO-218, DO-918 U055.3-SmaRT_DO-x18_HHR...
