SANbox 9000 Series Stackable Chassis Switch

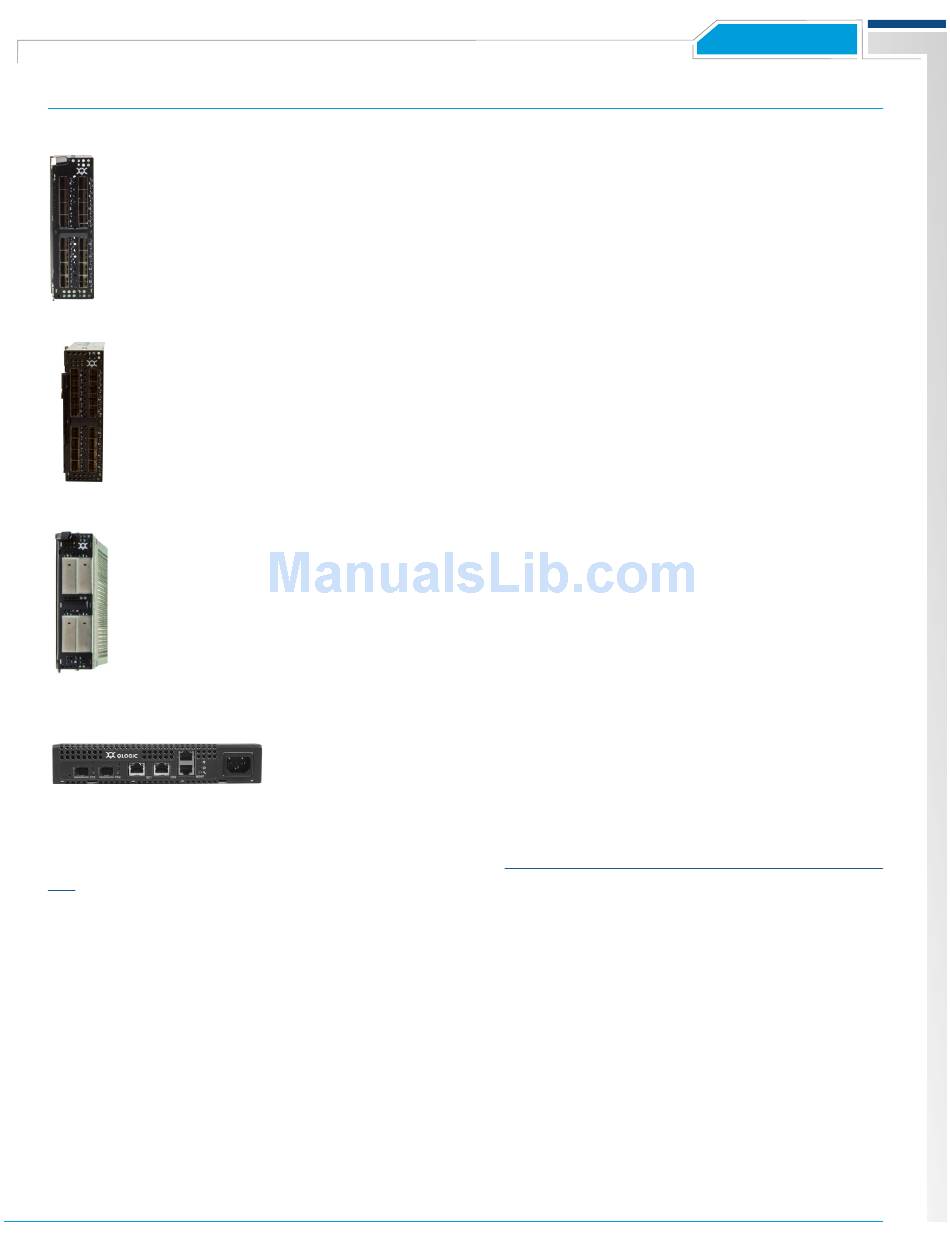

Fibre Channel (FC) I/O Blades
4Gb FC I/O Blade — 16 Ports x 4Gb Fibre Channel
The 4Gb FC Blade includes sixteen 4Gb/2Gb/1Gb auto-sensing Fibre Channel ports. Mix and match any combination of blades
for up to 128 ports per chassis module – or 256 ports in a dual-chassis HyperStack.
8Gb FC I/O Blade — 16 Ports x 8Gb Fibre Channel
The 8Gb FC Blade includes sixteen 8Gb/4Gb/2Gb auto-sensing Fibre Channel ports. Mix and match any combination of blades
for up to 128 ports per chassis module – or 256 ports in a dual-chassis HyperStack.
10Gb FC I/O Blade — 4 Ports x 10Gb Fibre Channel
The 10Gb FC Blade includes four 10Gb Fibre Channel ports. Configure SANbox 9000 slots with 10Gb FC Blades for high-speed
ISL connectivity from the core to the distribution, or edge tiers with SANbox 5000 stackable switches.
iSCSI and FCIP I/O Modules
iSCSI and FCIP I/O Modules — 2 Ports x 1Gb Ethernet + 2 Ports x 2Gb Fibre Channel
QLogic has chosen not to sacrifice valuable high-density FC I/O Blade slots for IP support. Instead, external half-wide 1U SANbox 6000 series
iSR "modules" are utilized for low-density/low-cost iSCSI and FCIP ports (see
aspx). Even at 4 + 1 = 5U, the SANbox 9000 Director switch is still the most rack efficient and rack-mount flexible multi-protocol solution in
the industry
Modular Blades at an Edge Switch Price
http://www.qlogic.com/Products/SAN_products_storagerouters.
SN0058047-00 F
D A T A S H E E T
6
