Qlogic SilverStorm 9024 Specifications

SilverStorm
9024 Switch
10 Gbps and 20 Gbps Cluster
Computing Interconnect
Benefits
• An entry-level high performance platform for HPC,
database, and grid clustering
• Leading price/performance
• 24-ports (4X) in a 1U form factor
• Supports mixture of SDR and DDR configurations
• Low end-to-end latency fabrics
• Component of larger multi-tier fabrics
Key Features
• Latency less than 140 nsec
• Up to 960 Gbps of fabric bandwidth available in
each switch
• Non-disruptive code load and activation
• Integrates seamlessly with all SilverStorm switch
gateway products for storage and network
connectivity
• Intelligent switching platform supporting SNMP and
API management capabilities
• Out-of-Band Ethernet management support
• Fully redundant power, cooling, and logic
components
®

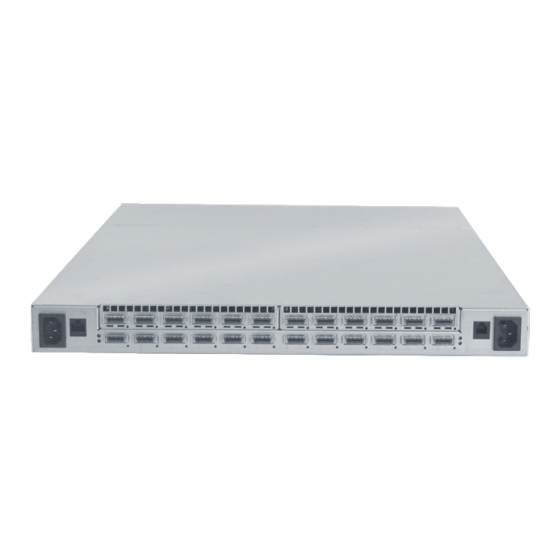

The SilverStorm 9024 is a high performance 24-port InfiniBand
enables the construction of high-speed, low latency computer clusters to
power many of today's business applications such as:
• Computer grid/virtualization
• Modeling and simulation
• Clustered database
• Oil and gas reservoir simulation
• Computational fluid dynamics
• Research/computational clustering
InfiniBand provides significant competitive advantages to companies by
enabling reductions in time-to-market and more fine-grained data analysis.
There are two 9024 models supporting 10 Gbps or 20 Gbps. They can be
used to construct small InfiniBand fabrics, or as an edge or leaf switch in
larger fabrics. These multi-tier fabrics can then deliver the productivity and
performance metrics demanded by computationally intensive environments,
even as fabrics scale to very high node counts.
The 9024 is just one part of the QLogic
modular 9120 (with 12 option slots) and 9240 (with 24 option slots) switch
gateway systems—all boasting non-blocking, Full Bisectional Bandwidth
(FBB) that can satisfy even the most demanding clustering applications.
Intelligent Building Blocks for Scaling Fabrics.
with QLogic switch gateway systems as part of a larger computing cluster.
This provides access to all 9024 attached servers from the I/O gateways
supported in the modular systems. Without additional server-based network
adapters, access is provided to a pool of shared Fibre Channel and Ethernet
network resources. QLogic provides the lowest cost and the lowest power
consolidation of cluster, Ethernet, and Fibre Channel networks.
Robust Design for the Enterprise.
SilverStorm 9024 features redundant, hot-swappable power and cooling
elements with the ability to non-disruptively upgrade the operating code.
Configuration and Fabric Management.
the QuickSilver OS management and QLogic's FastFabric Toolset. Together
these management tools provide system and fabric level management with
a consistent user interface for topology, configuration, performance, and
fabric diagnostics across the entire QLogic InfiniBand product portfolio.
D A T A S H E E T
switch that
®
® product family that includes the
The 9024 can be integrated
Built for mission-critical application, the
All QLogic products are managed by
