Quick Start Guide

]
z
S T A C K A B L E C H A S S I S S W I T C H I N S T A L L A T I O N
Q L o g i c 9 0 0 0 S e r i e s

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Qlogic 9000 Series

Summary of Contents for Qlogic 9000 Series

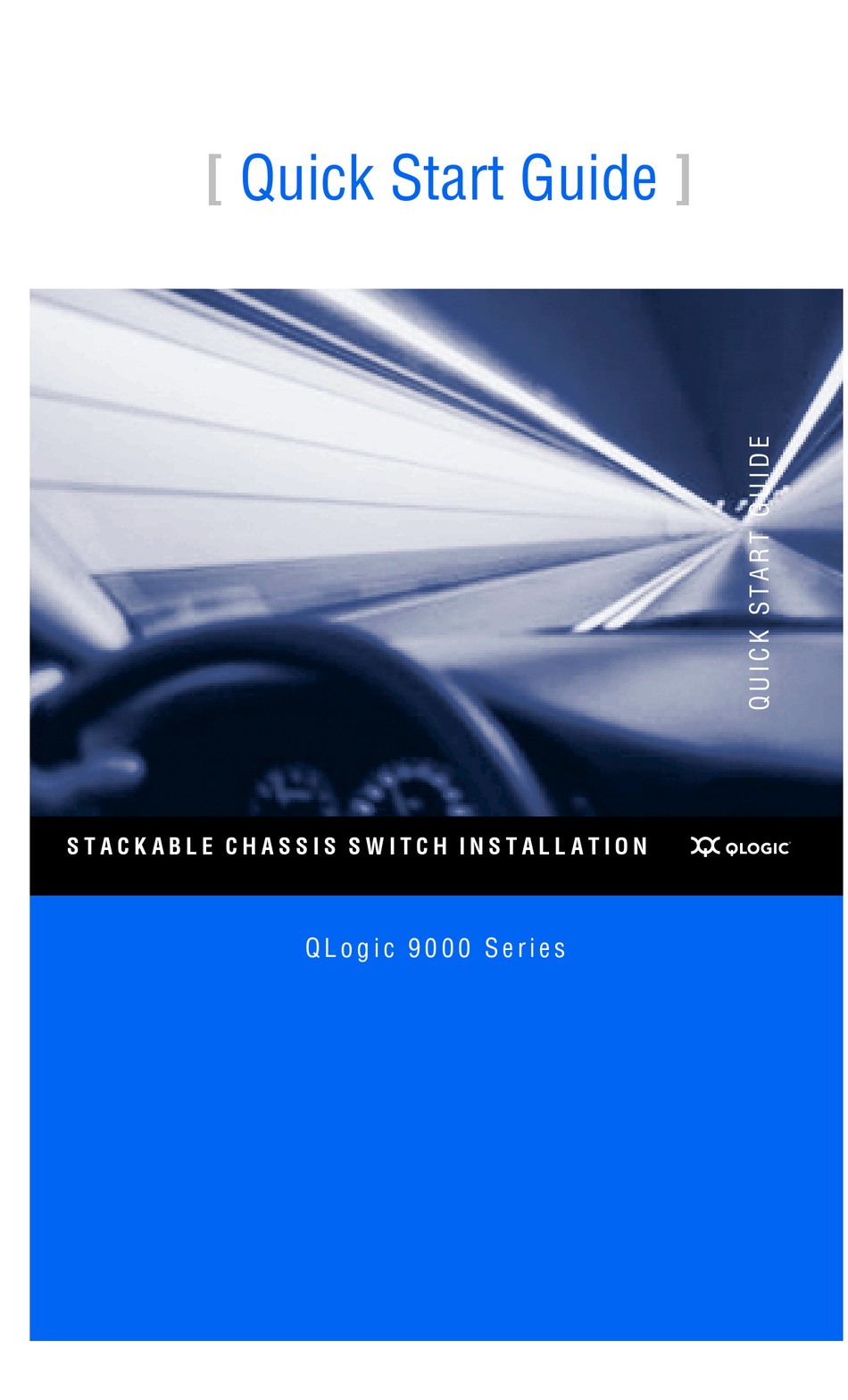

  • Page 1: Quick Start Guide

    Quick Start Guide S T A C K A B L E C H A S S I S S W I T C H I N S T A L L A T I O N Q L o g i c 9 0 0 0 S e r i e s...
  • Page 2 Purchasers of OEM products should consult with their OEM for support. Please feel free to contact your QLogic approved reseller or QLogic Technical Support at any phase of integration for assistance. QLogic Technical Support can be reached by the following methods: http://support.qlogic.com...

  • Page 3: Installation Instructions

    Two people are required to safely lift and install the switch into a rack. To avoid personal injury or damage to the switch, arrange for assistance. You can mount the QLogic 9000 Series switch on a flat surface or in a rack. Allow minimum clearances of 2 inches in front and 8 inches in the rear for cabling.
  • Page 4 Step 4. Install Transceivers An SFP transceiver is required for each switch port that will be connected to a device. ❑ To install an SFP transceiver, insert the transceiver into the switch port and gently press until it snaps in place. The transceiver will fit only one way.
  • Page 5 Step 7. Connect the Workstation to the Switch ❑ Connect the CPU0 blade Ethernet port directly to the workstation using an Ethernet cable, or indirectly through a switch or hub. The Ethernet port automatically discovers straight and cross-over cables. You must have a live Ethernet connection when the workstation powers up.
  • Page 6 Connect fiber optic cables between the installed transceivers and their corresponding devices. Each port auto-negotiates the proper port type with the connected device or switch. Congratulations You have successfully installed your QLogic 9000 Series Switch For information about ordering additional I/O blades and accessories visit http://www.qlogic.com/Products/SAN_products_FCS_san9000.aspx.
  • Page 7 © 2009 QLogic Corporation. QLogic, the QLogic logo, and Enterprise Fabric Suite are trademarks or registered trademarks of QLogic Corporation. Solaris and Java are registered trademark of Sun Microsystems. Linux is a registered trademark of Linus Torvalds. Mac OS is a registered trademark of Apple Inc. Windows and Internet Explorer are registered trademarks of Microsoft Corporation.
  • Page 8 Corporate Headquarters Europe Headquarters QLogic Corporation QLogic (UK) LTD. 26650 Aliso Viejo Parkway Quatro House, Lyon Way, Frimley Aliso Viejo, CA 92656 Camberley Surrey, GU16 7ER UK 949.389.6000 www.qlogic.com +44 (0) 1276 804 670 *50688-05 50688-05 A...
