SANbox 9000 Series Stackable Chassis Switch
SANbox 9000 Product Overview

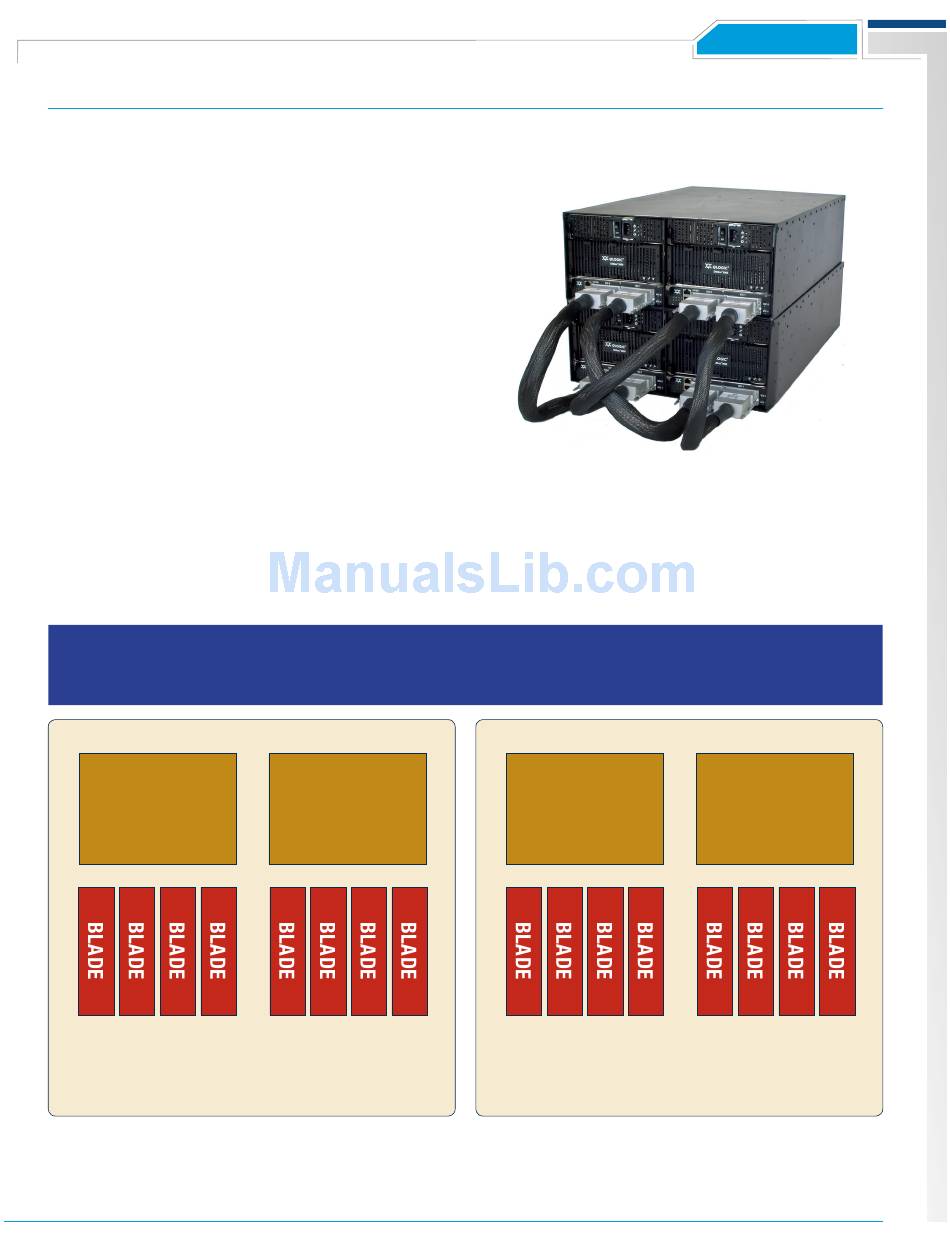

HyperStack Architecture
The SANbox 9000 Series stackable chassis switch is a new class
of core switch that enables solutions with the 99.999 percent
availability, blazing performance, and easy scalability of a Director
— but without the large footprint and high TCO.
What makes it all possible is the SANbox 9000 architecture that
features:
• HyperStack : Four 200Gb dedicated backplane-to-backplane
interconnects between chassis modules
• High Bandwidth Chassis
dual chassis HyperStack configuration
• Redundancy : Redundant CPU, power supply, and fan blades,
including the ability to hot-swap replace by a customer
• Compact : Up to 128 ports in only 4U of rack space, 256 ports in
8U-HyperStack
CPU
CHASSIS MODULE
The SANbox 9000 architecture is redundant for high availability, delivers 1.6 terabits of total system bandwidth, and allows chassis modules to scale via in-
novative HyperStack technology.
Modular Blades at an Edge Switch Price
: 1.6Tb of backplane bandwidth for a
HyperStack
CPU
• Ultra-High Availability:
failover feature for any SB9200 module
™
CPU
SN0058047-00 F
D A T A S H E E T
Optional fault tolerant transparent CPU
CPU
CHASSIS MODULE
