INSTALLATION AND OPERATION MANUAL

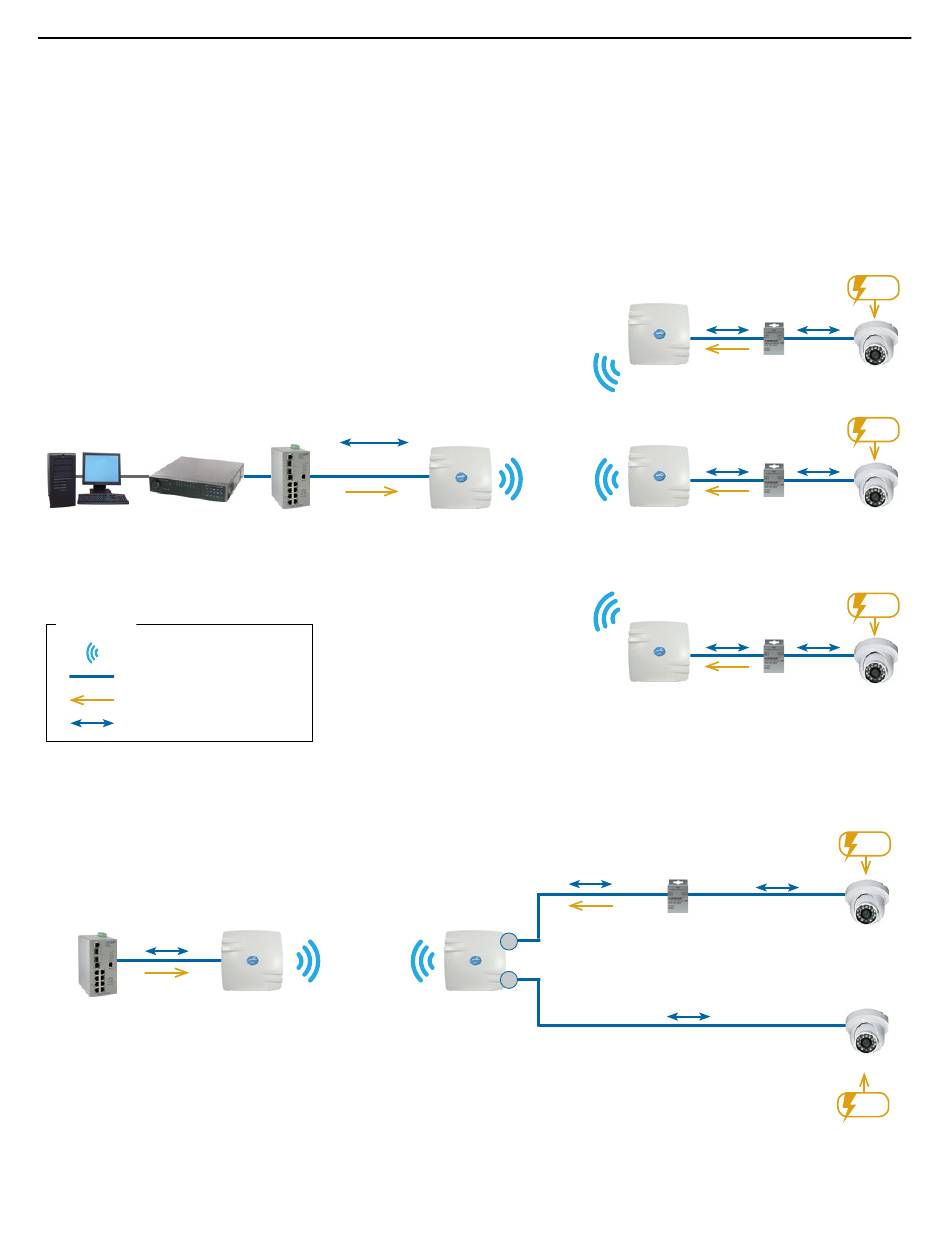

2.0 Point to Multi-Point

These individual units allow the user to configure for either multipoint access point or client operation.
There is a MAC address lock feature that can be enabled through the user interface but is not enabled
by default. The NW(1,2) includes a 19dBi 17° internal antenna. See the ComNet website for the
latest information regarding antenna support. Preconfigured NWK kits do not support point-to-
multipoint topologies.
PC NVR
LEGEND
WIRELESS
CAT5
POWER
ETHERNET DATA

3.0 Point-to-Point Topology Utilizing Dual Ports

10/100 Mbps
Ethernet
PoE
ComNet Managed
Switch with 30W PoE
Connected to Network
TECH SUPPORT: 1.888.678.9427
10/100 Ethernet
PoE
ComNet Gigabit
Managed Switch
with 30W PoE+
NW1
(Access Point)
NW1
(Recommended
Access Point)
Ethernet
NW1
(Client)
PoE
P1
P2
NW1 (Client) PIM or other
PSE device
Ethernet Ethernet
PoE
NW1 (Client) PIM or other
PSE device
Ethernet Ethernet
PoE
NW1 (Client) PIM or other
PSE device
Ethernet Ethernet
PoE
PIM or other
PSE device
Ethernet
Ethernet
INS_NetWave_REV– 06/10/13 PAGE 7
NETWAvE
Power
IP Camera
Power
IP Camera
Power
IP Camera
Power
IP Camera
IP Camera
Power
