This manual serves the following
ComNet Model Numbers:
NWK1/M
NWK2/M
QUICK START GUIDE

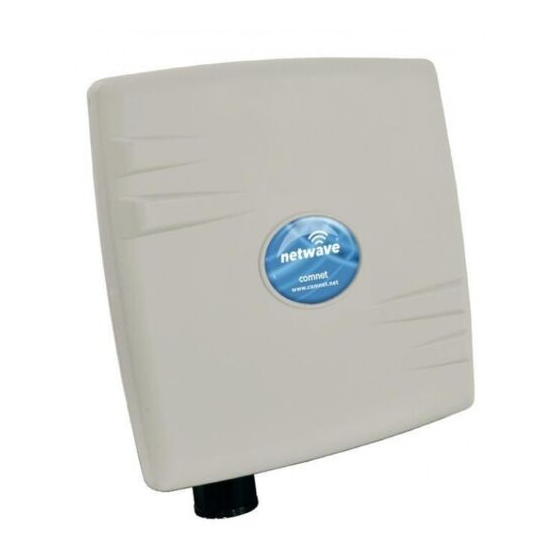

MINI INDUSTRIAL OUTDOOR 802.11A/N
WIRELESS ETHERNET KIT
Thank you for purchasing NetWave
walk you through installation.
This guide applies to the following models:
NWK1/M: Industrial Multipoint, FCC Version (Includes NWK1/M_AP and NWK1/M_CL)
NWK2/M: Industrial Multipoint, ETSI Version (Includes NWK2/M_AP and NWK2/M_CL)
An easy to read LED array displays unit operational status along with received signal
strength ensuring optimal installation and operation. See Figure 2 on Page 2 for LED
Indicator explanations.
See Figures 3 through 5 beginning on Page 3 for mounting instructions.
from ComNet. This quick start guide is designed to
®
INS_NWK1M_NWK2M_QS_REV– 07/7/15 PAGE 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Comnet NetWave NWK1/M
Summary of Contents for Comnet NetWave NWK1/M
- Page 1 QUICK START GUIDE MINI INDUSTRIAL OUTDOOR 802.11A/N WIRELESS ETHERNET KIT Thank you for purchasing NetWave from ComNet. This quick start guide is designed to ® This manual serves the following walk you through installation. ComNet Model Numbers: NWK1/M This guide applies to the following models:...
-
Page 2: Signal Strength
QUICK START USER GUIDE NWK(1,2)/M FIGURE 1 – MINI INDUSTRIAL WIRELESS ETHERNET LINK FRONT BACK BOTTOM FIGURE 2 – STATUS INDICATING LEDS VISUAL CUE INDICATION SOLID GREEN Power is supplied to the unit POWER No power is supplied to the unit, or the unit is in reset. SOLID GREEN LAN Connected No Connectivity... - Page 3 QUICK START USER GUIDE NWK(1,2)/M FIGURE 3 – INSTALLATION INSTRUCTIONS Step 1. Unpack the mounting hardware from the box. Determine if this will be a pole or wall mount application. The included Mounting kit is designed to support poles up to 2 in (5.8 cm) in diameter. Step 2.
- Page 4 QUICK START USER GUIDE NWK(1,2)/M FIGURE 4 – POLE MOUNT INSTRUCTIONS Included Hardware Vertical Mount in -45º Position Vertical Mount in +45º Position TECH SUPPORT: 1.888.678.9427 INS_NWK1M_NWK2M_QS_REV– 07/7/15 PAGE 4...
-
Page 5: Installation Requirements
• Wireless mode – Set to AP or Client • Country code – Only required if setting up the NW2/M and NWK2/M (ETSI) models NOTE: It is the user’s responsibility to ensure that the correct country is chosen. ComNet accepts no liability for incorrectly set up equipment. -
Page 6: Reset To Factory Default
CONFIGURING MAC LOCK FOR POINT TO POINT LINKS MAC-Filter replaces MAC-Lock on the first generation Netwave hardware. MAC-Filter is only available on devices operating as an AP. By default, it is disabled. You can locate MAC-Filter tab by going to Networking -> WIFI -> Enable. To enable and lock to a client radio, Click on the drop down menu and select “Allow Listed Only”. -
Page 7: Default Configurations
QUICK START USER GUIDE NWK(1,2)/M TYPICAL POINT-TO-POINT CONFIGURATION Cat5 Cable 10/100Mbps or other ComNet Gigabit NWK1/M_AP NWK1/M_CL PSE device Managed Switch Camera with 30W PoE+ DEFAULT CONFIGURATIONS IP Address of Web Server 192.168.10.100 (NWKX/M_AP) 192.168.10.101 for all others LAN Mode for Web Server... -
Page 8: Agency Compliance
QUICK START USER GUIDE NWK(1,2)/M AGENCY COMPLIANCE Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: •... - Page 9 T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET © 2015 Communications Networks Corporation. All Rights Reserved. “ComNet,” the “ComNet Logo,” “NetWave,” and the “NetWave Logo” are registered trademarks of Communication Networks, LLC. INS_NWK1M_NWK2M_QS_REV– 07/7/15 PAGE 9...
