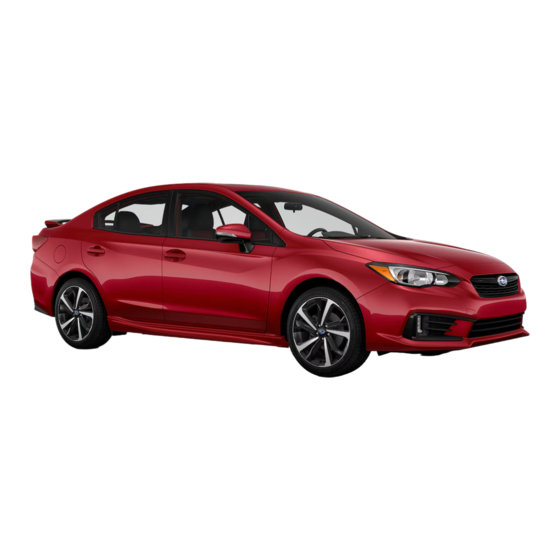

Subaru Impreza 2023 Manual
  1. Manuals
  2. Brands
  3. Subaru Manuals
  4. Automobile
  5. Impreza 2023
  6. Manual

Subaru Impreza 2023 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Foreword
TM
Congratulations on choosing a SUBARU vehicle equipped with EyeSight
.
EyeSight incorporates the latest driver assistance features available from
SUBARU, including such features as Adaptive Cruise Control, a Lead Vehicle Start
Alert and a Lane Departure and Lane Sway Warning, all of which are designed to
assist the driver in making decisions and increase driver comfort and
convenience. Initially, the operation and use of the various EyeSight features may
be unfamiliar to you. That is why we urge you to read this manual carefully before
using EyeSight. We also recommend that you first take the time to test EyeSight in
order to experience its features for yourself so that you can become familiar with
their operation.
Please keep in mind that it is the responsibility of drivers to operate their vehicles
safely at all times. Drivers should always remain alert and should never become
complacent while operating their vehicles because of the presence of EyeSight.
EyeSight is never a substitute for active driver involvement and it may not operate
optimally under all driving conditions.
This booklet is a supplement to the Owner's Manual for your SUBARU vehicle and
contains a detailed description of EyeSight. It should be read in conjunction with
your Owner's Manual so that you will gain a thorough understanding of the proper
operation of your vehicle.
The information, specifications and illustrations found in this booklet are those in
effect at the time of printing. SUBARU CORPORATION reserves the right to
change specifications and designs at any time without prior notice and without
incurring any obligation to make the same or similar changes on vehicles
previously sold.
Please keep this booklet together with your Owner's Manual and leave it in the
vehicle at the time of resale. The next owner will need the information it contains.
SUBARU CORPORATION, TOKYO, JAPAN
"SUBARU" and the six-star cluster design are registered trademarks of SUBARU CORPORATION.
© Copyright 2022 SUBARU CORPORATION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Impreza 2023 and is the answer not in the manual?

Questions and answers

Related Manuals for Subaru Impreza 2023

Summary of Contents for Subaru Impreza 2023

  • Page 1 EyeSight is never a substitute for active driver involvement and it may not operate optimally under all driving conditions. This booklet is a supplement to the Owner’s Manual for your SUBARU vehicle and contains a detailed description of EyeSight. It should be read in conjunction with your Owner’s Manual so that you will gain a thorough understanding of the proper...

  • Page 3: Table Of Contents

    EyeSight About EyeSight ..............4 Pre-Collision Braking System........... 26 Adaptive Cruise Control ........... 40 Lane Keep Assist ............. 64 Pre-Collision Throttle Management........73 Lane Departure Warning..........79 Lane Sway Warning ............83 Lead Vehicle Start Alert ........... 86 Conventional Cruise Control ..........88 List of alert/notification sounds........

  • Page 4: About Eyesight

    Making use of images created by the stereo camera specially designed by SUBARU, EyeSight detects the vehicle in front, obstacles, traffic lanes and other items. WARNING Drivers are responsible for driving safely.
  • Page 5 - Tires that are the wrong size are installed. - A flat tire has been fixed temporarily with a tire repair kit. - The suspension has been modified (including a genuine SUBARU suspen- sion that has been modified). - An object that obstructs the stereo camera’s view is installed on the vehicle.
  • Page 6 For details, refer to the vehicle Owner’s Manual. *2: If the brake system warning light does not turn off, immediately pull the vehi- cle over in a safe place and contact a SUBARU dealer to have the system inspected. For details, refer to the vehicle Owner’s Manual.
  • Page 7 About EyeSight CAUTION • The characteristics of the stereo camera are similar to those of human eyes. For this reason, conditions that make it difficult for the driver to see in the for- ward direction have the same effect on the stereo camera. They also make it difficult for the system to detect vehicles, obstacles, and traffic lanes.
  • Page 8 Also, the EyeSight system may temporarily stop operating. If the EyeSight system repeatedly stops operating several times, contact a SUBARU dealer and have the system inspected. - The stereo camera lenses are smeared such as from fingerprints.
  • Page 9 - Data related to ABS, Vehicle Dynamics Control and Traction Control Func- tion • SUBARU and third parties contracted by SUBARU may acquire and use the recorded data for the purpose of vehicle research and development. SUBARU and third parties contracted by SUBARU will not disclose or provide the acquired data to any other third party except under the following condi- tions.
  • Page 10 - Never touch the stereo camera lenses, and do not attempt to wipe or clean the lenses. Doing so could damage or soil the lens, and lead to improper system performance. If you ever touch a lens for any reason, be sure to contact a SUBARU dealer.
  • Page 11 - Do not change the positions where the stereo camera is installed or modify any of the surrounding structures. • Do not install an interior rearview mirror other than a genuine SUBARU rear- view mirror (such as a wide-type mirror) and the sun visor. Also, use the rear- view mirror so that it does not obstruct the stereo camera.
  • Page 12 About EyeSight  Continued from previous page • Do not install any accessories other than the ones designated by SUBARU on the prohibited areas shown in the illustrations (gray zones). Even if some accessories are installed on the outside of the prohibited areas, abnormal operation of EyeSight may occur due to the reflection of the light or any objects.
  • Page 13 • Do not install any film or an additional layer of glass on the windshield. The system may not operate correctly. • If there are scratches or cracks on the windshield, contact a SUBARU dealer. • To have the windshield replaced or repaired, contact a SUBARU dealer. Do not install a windshield other than a genuine SUBARU windshield.
  • Page 14 About EyeSight EyeSight Functions EyeSight includes the following functions. ■ Pre-Collision Braking System This function uses a following distance warning feature to warn the driver to take evasive action when there is the possibility of a collision with a vehicle or obstacle in front of you. If the driver does not take evasive action, the brakes are applied automatically to help reduce vehicle collision damage or, if possible, help prevent a collision.
  • Page 15 About EyeSight ■ Lane Sway Warning This function warns the driver when it detects vehicle drifting caused by driver fatigue, fail- ure to concentrate on the road, inattention, strong crosswinds or other factors.  Page 83 ■ Lead Vehicle Start Alert This function notifies the driver when the vehicle stopped in front starts moving but the driver’s vehicle remains stationary.
  • Page 16 About EyeSight Instrument panel display layout (12) (11) (10) (13) (14) (15)(16) (17) (18) H00026 Display units can be changed in the Screen Settings. For details, refer to the vehicle Owner’s Manual. EyeSight display area (11) Lead vehicle indicator Adaptive Cruise Control indicator (12) Warning screen area Conventional Cruise Control indicator (13) EyeSight temporary stop indicator (white)
  • Page 17 About EyeSight Adaptive Cruise Control indicator • This indicator illuminates when the (CRUISE) switch is pressed.  Page 47 • When Adaptive Cruise Control is activated, this indicator changes from white to green. When the driver accelerates the vehicle by depressing the accelerator pedal while Adaptive Cruise Control is operating, the indicator changes from green to white.
  • Page 18 About EyeSight Select lever/gear position indicator This indicator illuminates and shows which position the select lever or the gear is in. EyeSight warning indicator (yellow) • This indicator illuminates or blinks when a malfunction occurs in the EyeSight system. • When it is illuminated or blinking, none of the EyeSight functions can be used (including Adaptive Cruise Control and Pre-Collision Braking System, etc.).
  • Page 19 If the brake system warning light does not turn off, immediately pull the vehicle over in a safe place and contact a SUBARU dealer to have the system inspected. ...
  • Page 20 About EyeSight Switch layout S02653 (CRUISE) switch RES/+ switch (Following distance setting) switch switches (Info)/SET switch (Lane Keep Assist) switch switch SET/- switch...
  • Page 21 About EyeSight ■ (CRUISE) switch • Press this switch to turn cruise control* on/off. • When (Adaptive Cruise Control indicator) or (Conventional Cruise Control indicator) is shown on the EyeSight display area, this indicates that the main cruise con- trol is on. ...
  • Page 22 About EyeSight ■ (Following distance setting) switches • Press either of these switches to select the set following distance in 4 stages (only when Adaptive Cruise Control is on).  Page 56 • When the main cruise control is on, switching between Adaptive Cruise Control and Con- ventional Cruise Control is possible by pressing the (Following distance set- ting) switch*.
  • Page 23 About EyeSight ■ (Pre-Collision Braking System OFF) switch Press and hold this switch for approximately 2 seconds or longer to turn off Pre-Collision Braking System and Pre-Collision Throttle Management. When these functions are off, the Pre-Colli- sion Braking System OFF indicator light on the instrument panel illuminates.
  • Page 24 About EyeSight ■ Multi-function display S03952 Lane Departure Warning indicator Lane indicator Pre-Collision Braking System indicator Road line indicator Lead vehicle indicator Your own vehicle indicator ● Lane Departure Warning indicator This indicator illuminates when Lane Departure Warning and Lane Sway Warning are on. ●...
  • Page 25 About EyeSight ● Lane indicator This indicator is displayed when Lane Keep Assist is active. ● Road line indicator This indicator illuminates when Lane Keep Assist is operational or operating. ● Your own vehicle indicator When the brake pedal is depressed or the brake control function is activated, the brake lights on the vehicle indicator illuminate in red.

  • Page 26: Pre-Collision Braking System

    Pre-Collision Braking System When there is the risk of a rear-end collision with an obstacle in front, the EyeSight system helps to prevent or minimize a collision by warning the driver. If the driver still does not take evasive action to avoid a collision, the brakes can be automatically applied just before the collision in order to reduce impact damage, or if possible, prevent the collision.
  • Page 27 Pre-Collision Braking System • When the difference in speed with the obstacle in front is the following figure or more, it may not be possible to avoid a collision. Even if the speed differ- ence is the following figure or less, in cases such as when another vehicle cuts in front of you, or in other cases depending on visibility, the condition of road surface and other factors , the function may be unable to stop the vehi-...
  • Page 28 Pre-Collision Braking System  Continued from previous page - Recognition conditions of the stereo camera In particular, the function may be unable to stop the vehicle or may not acti- vate in the following cases. • Bad weather (for example heavy rain, a blizzard or thick fog) •...
  • Page 29 Pre-Collision Braking System • There is a wall, etc. in front of a stopped vehicle. • There is another object near the vehicle. • A vehicle, etc. has its side facing you. • With vehicles that are backing up or with oncoming vehicles, etc. •...
  • Page 30 For details, refer to the vehicle Owner’s Manual. *2: If the brake system warning light does not turn off, immediately pull the vehicle over in a safe place and contact a SUBARU dealer to have the system inspected. For details, refer to the vehicle Owner’s Manual.
  • Page 31 Pre-Collision Braking System CAUTION • In the following situations, turn off Pre-Collision Braking System. Otherwise Pre-Collision Braking System may activate unexpectedly.  Page 38 - The vehicle is being towed. - The vehicle is being loaded onto a carrier. - A chassis dynamometer, free-rollers or similar equipment is being used. - A mechanic lifts up the vehicle, starts the engine and spins the wheels freely.
  • Page 32 Pre-Collision Braking System  Continued from previous page - Visibility is poor due to sand, smoke or water vapor blowing in the wind, or the front vision is obscured due to water splashes, snow, dirt or dust stir up generated by the vehicle in front or oncoming traffic. - Passing through clouds of steam or smoke, etc.
  • Page 33 Pre-Collision Braking System - Passing through water spray from road sprinklers or snow clearing sprin- klers on the road S02636 • If there is cargo or installed accessories, etc. that are protruding beyond the edge of the front bumper, the vehicle’s length will increase and the system may not be able to prevent a collision.
  • Page 34 Pre-Collision Braking System ■ Detection of pedestrians The EyeSight system can also detect pedes- trians. The EyeSight system detects pedestri- ans from their size, shape and movement. The system detects a pedestrian when the Approx. contour of the head and shoulders are clear. 3 1/3 ft - 6 2/3 ft (1-2 m)
  • Page 35 Pre-Collision Braking System Pre-Collision Braking System operation When there is an obstacle in front of you during driving, the system activates in the following sequence in order to warn the driver and to activate braking control and the brake lights. Following Distance Warning: When the system determines that there is a risk of collision, an alert sounds repeated short beeps and an interruption screen is displayed on the combination meter display to warn the...
  • Page 36 Pre-Collision Braking System Obstacle Following distance First braking Secondary braking warning & warning & warning Possible collision area Highly possible Extremely highly possible collision area collision area S03875 Operating Strength of Indication on the Alert type system Automatic Braking combination meter display Following Repeated distance...
  • Page 37 Pre-Collision Braking System Pre-Collision Braking Assist operation When Pre-Collision Braking System is activated (when the system determines that there is a high risk of collision with an obstacle in front), if the driver depresses the brake pedal, the system determines that this is emergency braking and activates braking assist automati- cally.
  • Page 38 Pre-Collision Braking System Turning off Pre-Collision Braking System Press and hold the Pre-Collision Braking System OFF switch for approximately 2 seconds or longer to turn off Pre-Collision Braking System (including Pre-Collision Braking Assist). When 1 short beep sound emits, this control is turned off and the Pre-Collision Braking Sys- tem OFF indicator light on the instrument panel illuminates.
  • Page 39 Pre-Collision Braking System ■ Pre-Collision Braking System OFF indicator light This indicator light illuminates when the igni- tion switch is turned to the ON position, and then turns off approximately 7 seconds after the engine starts. It illuminates when Pre-Col- lision Braking System and Pre-Collision Throt- tle Management are turned off.

  • Page 40: Adaptive Cruise Control

    - Tires that are the wrong size are installed. - A flat tire has been fixed temporarily with a tire repair kit. - The suspension has been modified (including a genuine SUBARU suspen- sion that has been modified). - An object that obstructs the stereo camera’s view is installed on the vehicle.
  • Page 41 For details, refer to the vehicle Owner’s Manual. *2: If the brake system warning light does not turn off, immediately pull the vehi- cle over in a safe place and contact a SUBARU dealer to have the system inspected. For details, refer to the vehicle Owner’s Manual.
  • Page 42 Adaptive Cruise Control  Continued from previous page - Roads and overpasses with repeated steep uphill and downhill grades Detection of the vehicle in front may be lost, or the road surface may be detected instead of the vehicle in front, making correct control impossible. - Entering a sharp curve/turn into an interchange or junction, or a service area, parking area, toll booth or other facilities Detection of the vehicle in front may not be possible.
  • Page 43 Adaptive Cruise Control - Water droplets from rain or the window washer, or dirt has not been fully wiped off the windshield. It may not be possible to detect the vehicle in front, making correct control impossible. - The stereo camera’s field of view is obstructed (for example by a canoe on the roof of the vehicle).
  • Page 44 Adaptive Cruise Control  Continued from previous page Detection of the vehicle in front by the EyeSight stereo camera* • Under the following road conditions or conditions of your vehicle, detection of the vehicle in front may not be possible. Vehicles in neighboring traffic lanes or roadside objects may also be incorrectly detected.
  • Page 45 Adaptive Cruise Control - The vehicle in front is not directly ahead of your vehicle and is shifted to one side. S01977 - There is an obstacle on the side of the road. - The relative speed difference compared to the vehicle in front is large.
  • Page 46 Adaptive Cruise Control  Continued from previous page • Even when the following distance is short, the “Obstacle Detected” warning may not activate in the following situations. - The difference in speed with the vehicle in front is small. The two vehicles are traveling at almost the same speed.
  • Page 47 Adaptive Cruise Control How to use Adaptive Cruise Control ■ Setting Adaptive Cruise Control (1) Setting Adaptive Cruise Control to standby status Press the (CRUISE) switch. At this time, (Adaptive Cruise Control indicator) (white), your vehicle indicator and the following distance setting indicator are displayed on the EyeSight display area of the combination meter display.
  • Page 48 Adaptive Cruise Control - EyeSight operation is not temporarily stopped. (EyeSight temporary stop indi- cator: White) is turned off.  Page 104 - The road is not a steep slope. - The steering wheel has not been turned significantly in either direction. - The vehicle speed is between 0 mph (0 km/h) and approximately 90 mph (145 km/h).
  • Page 49 (Adaptive Cruise Control indicator) does not illuminate even when the (CRUISE) switch is pressed and this occurs frequently, there may be a malfunction in the system. Contact a SUBARU dealer and have the system inspected. When a vehicle in front is detected, a noti- fication sounds 1 short beep and the lead vehicle indicator will illuminate.
  • Page 50 Adaptive Cruise Control Operation of Adaptive Cruise Control • When no vehicle in front is detected The vehicle drives constantly and corre- spondingly to the set vehicle speed between 20 mph (30 km/h) and 90 mph (145 km/h). S01979 • When a vehicle in front is detected The vehicle follows the lead vehicle in front, and will maintain the chosen following dis- tance (there are four settings), up to the set...
  • Page 51 Adaptive Cruise Control CAUTION If the driver operates the brake pedal during automatic braking, the pedal may feel stiff; however, this is not a malfunction. By depressing the brake pedal fur- ther you can apply more braking force. When the brake pedal is released it will return to its original condition.
  • Page 52 Adaptive Cruise Control ■ Increasing the set vehicle speed ● Using the RES/SET switch • Push to the “RES/+” side briefly. Every time the switch is pushed, the set vehicle speed will increase to the next 5 mph (5 km/h) increment. •...
  • Page 53 Adaptive Cruise Control CAUTION • When the vehicle is following the lead vehicle, the actual vehicle speed is controlled according to the lead vehicle. Therefore, if the RES/SET switch is pressed to the “RES/+” side and set to a speed higher than the speed of the lead vehicle, the vehicle will not accelerate;...
  • Page 54 Adaptive Cruise Control ■ Decreasing the set vehicle speed ● Using the RES/SET switch • Push to the “SET/-” side briefly. Every time the switch is pushed, the set vehicle speed will decrease to the next 5 mph (5 km/h) decrement. •...
  • Page 55 Adaptive Cruise Control ■ Decelerating temporarily Depress the brake pedal to decelerate tempo- rarily. When the brake pedal is depressed, Adaptive Cruise Control will be canceled. (Adaptive Cruise Control indicator) changes from green to white while the set vehicle speed remains displayed on the EyeSight display area.
  • Page 56 Adaptive Cruise Control ■ Changing the following distance from the vehicle in front The following distance from the vehicle in front setting can be changed in 4 stages. : When the switch ( side) is pressed, the following distance will be longer. : When the switch ( side) is pressed, the following distance will be shorter.
  • Page 57 Adaptive Cruise Control ■ Canceling Adaptive Cruise Control ● Canceling by driver operation Any of the following operations will cancel Adaptive Cruise Control. • Depress the brake pedal. (Adaptive Cruise Control indicator) changes from green to white while the set vehicle speed remains displayed on the EyeSight display area.
  • Page 58 Adaptive Cruise Control ● Automatic cancellation by the system When the Adaptive Cruise Control system brings your vehicle to a complete stop, repeated short beeps will sound, and the Adaptive Cruise Control system will release control of your vehicle. CAUTION When the vehicle has stopped, the automatic braking function will be gradually released and the vehicle will start creeping.
  • Page 59 If the indicators remain illuminated after restarting the engine, Adaptive Cruise Control cannot be used. This will not interfere with ordinary driving. However, contact a SUBARU dealer and have the system inspected. ...
  • Page 60 Adaptive Cruise Control ■ Restoring the previously set vehicle speed The previously set vehicle speed is stored in memory. To restore that vehicle speed, press the RES/SET switch to the “RES/+” side. (Adaptive Cruise Control indicator) changes from white to green. Green S03395 S03172...
  • Page 61 Adaptive Cruise Control ■ Turning off Adaptive Cruise Control When Adaptive Cruise Control is not active, press the (CRUISE) switch. (Adaptive Cruise Control indicator) turns off on the EyeSight display area. S03393...
  • Page 62 Adaptive Cruise Control Other functions ■ “Obstacle Detected” warning The “Obstacle Detected” warning is activated while Adaptive Cruise Control is following a lead vehicle. This function warns the driver when it determines that the current level of deceleration by automatic braking control is insufficient. •...
  • Page 63 Adaptive Cruise Control CAUTION The automatic braking function is released gradually approximately 2 seconds after stopping and the vehicle starts creeping forward. Be sure to depress the brake pedal and stop the vehicle completely. NOTE Vehicles in front in the same traffic lane are detected by the stereo camera within a distance of approximately 360 ft (110 m) in the forward direction.

  • Page 64: Lane Keep Assist

    Lane Keep Assist The stereo camera detects lane markings (including Botts’ dots) of the lane and the sys- tem assists the steering operation by working Lane markings with the electric power steering to help keep your vehicle in its lane when driving on expressways, freeways and interstate high- ways.
  • Page 65 For details, refer to the vehicle Owner’s Manual. *2: If the brake system warning light does not turn off, immediately pull the vehicle over in a safe place and contact a SUBARU dealer to have the system inspected. For details, refer to the vehicle Owner’s Manual.
  • Page 66 Lane Keep Assist  Continued from previous page • Lane Keep Assist is designed for use on expressways, freeways, toll roads, interstate highways and similar limited access roads. It is not intended to be used in city traffic. In the following conditions, do not use Lane Keep Assist. Doing so may result in an accident.
  • Page 67 Lane Keep Assist • The stereo camera may have difficulty detecting the lane markings under the following conditions and the system may not operate properly. - At night or in a tunnel without the headlights on - Light is poor in the evening or early morning. - In bad weather (for example, rain or snow) - The road surface is wet and shining by reflected sunlight.
  • Page 68 - Immediately after the repair or replacement of the suspension or steering system - A winter tire or a tire other than a genuine SUBARU tire is used. - The vehicle is in a crosswind. - The road grade abruptly changes (uphill or downhill).
  • Page 69 Lane Keep Assist Lane Departure Prevention Function The system detects lane markings in order to help prevent departure from the lane. If you drive on expressways, freeways or interstate highways at speeds above approximately 37 mph (60 km/h) and the vehicle is about to depart from the lane, the system assists the steer- ing operation by turning it to the direction that will help prevent the lane departure.
  • Page 70 Lane Keep Assist Lane Departure Prevention Function goes into the standby status, and the lane indicator (white) illuminates when all of the following conditions are met. • The vehicle speed is between approximately 37 mph (60 km/h) and 90 mph (145 km/h). •...
  • Page 71 Lane Keep Assist ■ Canceling Lane Departure Prevention Function ● Canceling by driver operation Any of the following operations temporarily cancels Lane Departure Prevention Function. While temporarily canceling this function, (Lane Keep Assist indicator) on the EyeSight display area illuminates in white and the lane indicator turns to gray. •...
  • Page 72 Lane Keep Assist • The system does not detect steering operation by the driver for a certain period of time. - When the system detects no steering operation, interruption screen Keep Hands On appears on the combination meter dis- Steering Wheel play.

  • Page 73: Pre-Collision Throttle Management

    Pre-Collision Throttle Management Pre-Collision Throttle Management When an obstacle is detected in front of the vehicle, and the vehicle is stopped or traveling very slowly, if the system determines that the accelerator pedal has been depressed by more than the necessary amount (due to driver error), it greatly restricts engine output and ensures that vehicle forward movement is slower than normal in order to give the driver...
  • Page 74 Pre-Collision Throttle Management  Continued from previous page • Do not intentionally depress the accelerator pedal excessively when there are obstacles nearby. If the driver relies only on Pre-Collision Throttle Manage- ment to control acceleration, collisions may occur. • If your vehicle is trapped on a railroad crossing and you are trying to escape by driving through the crossing gate, the stereo camera may recognize the crossing gate as an obstacle and Pre-Collision Throttle Management system may activate.
  • Page 75 Pre-Collision Throttle Management • The rear portion nearest your vehicle is too small or too close (such as a trailer or oncoming vehicle). The system may not recognize the part of that vehicle which is closest to you. S02134 • There is a fence or wall, etc., with a uniform pattern (striped pattern, brick, etc.) or with no pattern in front.
  • Page 76 Pre-Collision Throttle Management CAUTION • In the following situations, turn off Pre-Collision Throttle Management. Other- wise Pre-Collision Throttle Management may activate unexpectedly.  Page 78 - The vehicle is being towed. - The vehicle is being loaded onto a carrier. - A chassis dynamometer, free-rollers or similar equipment is being used.
  • Page 77 Pre-Collision Throttle Management - Passing through water spray from road sprinklers or snow clearing sprin- klers on the road S02636 - In adverse weather, such as heavy snow or snowstorms - There is an obstacle on a curve or intersection. - A vehicle or an object is being narrowly passed.
  • Page 78 Pre-Collision Throttle Management Turning off Pre-Collision Throttle Management Press and hold the Pre-Collision Braking System OFF switch for approximately 2 seconds or longer to turn off Pre-Collision Throttle Management System. When 1 short beep sound emits, this function is turned off and the Pre-Collision Braking System OFF indicator light on the instrument panel illuminates.

  • Page 79: Lane Departure Warning

    Lane Departure Warning Lane Departure Warning When vehicle speed is approximately 30 mph (50 km/h) or more, this function warns the driver if the system detects that the vehicle is likely to depart the traffic lane. When Lane Departure Warning activates, an alert sounds 3 short beeps and an interruption screen will be displayed.
  • Page 80 Lane Departure Warning CAUTION In the following situations, Lane Departure Warning may not activate: • Vehicle speed is approximately 30 mph (50 km/h) or less. • The steering wheel is turned significantly to either side. • The vehicle is driving around a curve whose radius is 0.18 miles (300 m) or smaller.
  • Page 81 Lane Departure Warning Turning off Lane Departure Warning Press and hold the Lane Departure Warning OFF switch for approximately 2 seconds or longer to turn off Lane Departure Warning. When 1 short beep sound emits, this function is turned off and the Lane Departure Warning OFF indicator light on the instrument panel will illuminate.
  • Page 82 Lane Departure Warning ■ Lane Departure Warning OFF indicator light This indicator light illuminates when the igni- tion switch is turned to the ON position, and then approximately 7 seconds after the engine starts, it turns off or remains illumi- nated depending on the current status (ON or OFF).

  • Page 83: Lane Sway Warning

    Lane Sway Warning Lane Sway Warning This function detects swaying or drifting within a lane, and warns the driver. When Lane Sway Warning activates, an alert sounds 3 short beeps and an interruption screen will be displayed. This function activates when the vehicle speed exceeds approximately 37 mph (60 km/h) and deactivates when the vehicle speed falls below approximately 25 mph (40 km/h).
  • Page 84 Lane Sway Warning NOTE • Swaying detection is based on several minutes of prior driving data. Swaying will not be detected immediately after the vehicle starts to sway. In addition, the warning may continue for some time even after swaying stops. •...
  • Page 85 Lane Sway Warning Turning off Lane Sway Warning Press and hold the Lane Departure Warning OFF switch for approximately 2 seconds or longer to turn off Lane Sway Warning. When 1 short beep sound emits, this function is turned off and the Lane Departure Warning OFF indicator light on the instrument panel illu- minates.

  • Page 86: Lead Vehicle Start Alert

    Lead Vehicle Start Alert When the vehicle stopped in front starts to move, Lead Vehicle Start Alert notifies the driver by an interruption screen on the combination meter display and notification sound. When the vehicle in front remains stopped continuously (within a following distance of approxi- mately 32 ft (10 m) and the driver’s vehicle remains stopped for several seconds or longer), the system continues to detect the vehicle in front and this alarm activates if the vehicle in front advances approximately 10 ft (3 m) or more while the driver’s vehicle remains station-...
  • Page 87 Lead Vehicle Start Alert NOTE • The Lead Vehicle Start Alert setting can be turned on or off.  Page 106 • Under the following conditions, Lead Vehicle Start Alert may activate even when the vehicle in front has not started to move, or may not activate even after the vehicle in front has started to move: - A motorcycle or similar object cuts in between your vehicle and the stopped vehicle in front.

  • Page 88: Conventional Cruise Control

    Conventional Cruise Control Conventional Cruise Control is a driving support system intended to allow more comfortable driving on expressways, freeways and interstate highways. It can be used to travel at a con- stant speed by maintaining the vehicle speed set by the driver. Please remember that you should not exceed posted speed limits.
  • Page 89 Conventional Cruise Control NOTE • When the main cruise control is off and the (CRUISE) switch is pressed, Adaptive Cruise Control is activated. • When the main cruise control is on, switching between Adaptive Cruise Con- trol and Conventional Cruise Control is possible by pressing the (Following distance setting) switch*.
  • Page 90 Conventional Cruise Control How to use Conventional Cruise Control ■ Setting Conventional Cruise Control (1) Setting Adaptive Cruise Control to standby status Press the (CRUISE) switch. At this time, (Adaptive Cruise Control indicator) (white) and the following distance setting indicator are displayed on the EyeSight dis- play area of the combination meter display.
  • Page 91 Conventional Cruise Control (2) Switch to Conventional Cruise Control. Press and hold the (Following distance setting) switch for approximately 2 seconds or longer to switch from Adaptive Cruise Control to Conventional Cruise Con- trol. A notification sounds 1 short beep. At this time, the following distance setting indicator on the EyeSight display area of the combination meter display turns off and (Conventional Cruise Control indicator)
  • Page 92 Conventional Cruise Control (3) Control the accelerator pedal to reach the desired speed. (4) When the vehicle reaches the desired speed, press the RES/SET switch to the “RES/+” side or the “SET/-” side. The vehicle speed at the time when the switch is pressed will become the set vehicle speed, and constant speed driving will initiate.
  • Page 93 Conventional Cruise Control NOTE • On a downhill grade, automatic braking may operate in order to maintain the set vehicle speed. • When driving on a curve, the vehicle may not accelerate, or may decelerate, even if the set vehicle speed is higher than the current vehicle speed. •...
  • Page 94 Conventional Cruise Control ■ Decreasing the set vehicle speed ● Using the RES/SET switch • Push to the “SET/-” side briefly. Every time the switch is pushed, the set vehicle speed will decrease to the next 5 mph (5 km/h) decrement. •...
  • Page 95 Conventional Cruise Control ■ Decelerating temporarily Depress the brake pedal to decelerate tempo- rarily. When the brake pedal is depressed, Conventional Cruise Control will be canceled. While the set vehicle speed remains dis- played on the EyeSight display area, (Conventional Cruise Control indicator)
  • Page 96 Conventional Cruise Control ● Automatic cancellation by the system In the following cases, a notification sounds 1 short beep and 1 long beep and the cruise control function is automatically canceled. (Conventional Cruise Control indicator) changes from green to white. Also, the Con- ventional Cruise Control cancellation mes- sage is displayed on the screen.
  • Page 97 If this occurs, stop the vehicle in a safe location and then turn off the engine and restart it. If the indicators remain illuminated after restarting the engine, Conventional Cruise Control cannot be used. This will not inter- fere with ordinary driving. However, contact a SUBARU dealer and have the system inspected. ...
  • Page 98 Conventional Cruise Control ■ Restoring the previously set vehicle speed The previously set vehicle speed is stored in memory. To restore that vehicle speed, press the RES/SET switch to the “RES/+” side. (Conventional Cruise Control indicator) changes from white to green. You can restore the set vehicle speed when the previously set vehicle speed has been stored and the current vehicle speed is approximately 20 mph (30 km/h) or more.
  • Page 99 Conventional Cruise Control ■ Turning off Conventional Cruise Control When Conventional Cruise Control is not active, press the (CRUISE) switch. (Conventional Cruise Control indicator) turns off on the EyeSight display area. S03393...

  • Page 100: List Of Alert/Notification Sounds

    List of alert/notification sounds Alert/notification Status Reference page sound Single continuous Pre-Collision Braking System:  Page 35 beep Secondary Braking is active. Adaptive Cruise Control or Conventional Cruise  Pages 58 and 96 Control is canceled automatically. 1 short beep and 1 long beep ...
  • Page 101 List of alert/notification sounds Alert/notification Status Reference page sound Either of the following occurs while Adaptive Cruise Control is activated.  Page 49 - A vehicle in front is detected*. - A vehicle in front is no longer detected*. The cruise control mode (Adaptive Cruise Con- ...

  • Page 102: Eyesight Malfunction And Temporary Stop

    (EyeSight warning indicator: Yellow) and the CHECK ENGINE warning light/malfunction indicator light illuminate at the same time while driving, have your vehicle checked/repaired by a SUBARU dealer as soon as possible. EyeSight cannot be used if there is an abnormality with the engine, etc.
  • Page 103 EyeSight system has a mal- function. In this case, all EyeSight functions will be stopped. Normal driving will still be possible. However, contact a SUBARU dealer for an inspection. • If (EyeSight warning indicator: Yellow) illuminates or blinks, the Reverse Automatic Braking (RAB) system will not operate (models equipped with Reverse Automatic Braking (RAB)).
  • Page 104 If the system does not restart, even after the conditions have improved and a period of time has elapsed, contact a SUBARU dealer for an inspection. In low or high temperatures The system will restart once EyeSight the temperature is within the...
  • Page 105 3 times after the tions have improved and a engine was started. period of time has elapsed, • The engine has stopped. contact a SUBARU dealer • The electric power for an inspection. steering system is in the overheating prevention...

  • Page 106: Customizing Functions

    Customizing functions The following settings can be changed on the combination meter display. Item Setting Default setting Warning Volume Max/Mid/Min Lead Vehicle Acquisition Sound On/Off Lead Vehicle Moving Monitor Function On/Off Lv.4 (Dynamic)/ Lv.3 (Standard)/ Lv.3 EyeSight Cruise Control Acceleration Characteristics Lv.2 (Comfort)/ (Standard) Lv.1 (Eco)
  • Page 107 Customizing functions ■ How to customize Operations can be performed when the select Change settings screen Settings screen lever is in the “P” position and the ignition switch is in the ON position while the vehicle Settings is parked. However, Cruise Control Accelera- tion Characteristics and warning volume can be changed, even while you are driving.
  • Page 108 Customizing functions ● Cruise Control Acceleration Characteristics The Cruise Control Acceleration Characteristics of the Adaptive Cruise Control and Con- ventional Cruise Control system can be set to one of four levels. Lv.4 (Dynamic): Mode used when powerful acceleration is required. Lv.3 (Standard): Mode that focuses on quick response acceleration.

  • Page 109: Message Screen List

    Message screen list Message screen list If an EyeSight warning or malfunction is detected, a message will be displayed on the com- bination meter display. Depending on the message, an alert/notification will sound at the same time. Normal display Message display Normal display EyeSight Disabled...
  • Page 110 Message screen list ■ Message screen list (precautions and notices) Item Displayed screen mark Reference page Pre-Collision Braking  None Page 35 System The “Obstacle Obstacle  None Page 62 Detected” warning Detected S02999 Pre-Collision Throttle  None Page 73 Management Lane Departure Warn- Lane...
  • Page 111 Message screen list Item Displayed screen mark Reference page None  Page 58 203196 EyeSight system  None Page 71 automatic cancellation S03313  None Page 96 203198 ■ Message screen list (malfunction, temporary stop) Item Displayed screen mark Reference page EyeSight system mal- EyeSight Off ...

  • Page 112: Troubleshooting

    Troubleshooting Adaptive Cruise Control cannot be activated. Did you remember to press the (CRUISE) switch? If you have not pressed the (CRUISE) switch, (Adaptive Cruise Con- trol indicator) will not be shown. Is EyeSight operation temporarily stopped? When EyeSight is temporarily stopped, (EyeSight temporary stop indicator: White) is displayed on the combination meter display.
  • Page 113 Troubleshooting A vehicle (in front of your vehicle) is not detected, detection is delayed or detec- tion is lost quickly. Is the vehicle in front stopped, moving slowly relative to your vehicle or moving extremely slowly? Detection of stopped vehicles, vehicle moving slowly relative to your vehicle, and vehicles moving extremely slowly may be difficult.
  • Page 114 Troubleshooting Lead Vehicle Start Alert activates, even though there is no vehicle in front. Depending on surrounding objects, traffic environment and weather, Lead Vehicle Start Alert may issue a warning in response to objects other than a vehicle that appears in front of your vehicle. EyeSight does not restart after a temporary stop.
  • Page 115 Troubleshooting When the vehicle in front has turned off the roadway or the distance from the vehi- cle in front has increased, acceleration is sometimes slower or faster. Depending on the timing of when the detection of the vehicle in front is lost, EyeSight’s ability to react may be slower, causing the start of acceleration to feel delayed and braking time to feel longer than what seems to be normal operation.
  • Page 116 Troubleshooting Lane Keep Assist was unexpectedly canceled. Did you take your hands off the steering wheel? Did you just lightly put your hands on the steering wheel while driving? If the system does not detect the steering operation of the driver, it will temporarily cancel Lane Keep Assist.
