Summary of Contents for Nordmende DOUC425IX
- Page 1 Built-in Double Oven / User Manual DOUC425IX...
- Page 2 Thank you for choosing this product. This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference. Icon Type Meaning...
-
Page 3: Table Of Contents
CONTENTS 1.SAFETY INSTRUCTIONS ....................4 1.1 General Safety Warnings ....................4 1.2 Installation Warnings ......................6 1.3 During Use ........................7 1.4 During Cleaning and Maintenance .................8 2.INSTALLATION AND PREPARATION FOR USE ............10 2.1 Instructions for the Installer ..................10 2.2 Installation of the Oven ....................10 2.3 Electrical Connection and Safety.................. -
Page 4: Safety Instructions
1. SAFETY INSTRUCTIONS • Carefully read all instructions before using your appliance and keep them in a convenient place for reference when necessary. • This manual has been prepared for more than one model therefore your appliance may not have some of the features described within. - Page 5 the oven. • Handles may get hot after a short period during use. • Do not use harsh abrasive cleaners or scourers to clean the oven door glass and other surface. They can scratch the surfaces which may result in shattering of the door glass or damage to surfaces.
-
Page 6: Installation Warnings
heating a room. • Do not use the oven door handles to lift or move the appliance. • All possible measures have been taken to ensure your safety. Since the glass may break, care should be taken while cleaning to avoid scratching. Avoid hitting or knocking the glass with accessories. -
Page 7: During Use
• Any materials (i.e. cabinets) around the appliance must be able to withstand a minimum temperature of 100°C. • The appliance must not be installed behind a decorative door, in order to avoid overheating. 1.3 During Use • When you first use your oven you may notice a slight smell. -
Page 8: During Cleaning And Maintenance
• Do not place anything on the oven door when it is open. This could unbalance the oven or damage the door. • Do not hang towels, dishcloths or clothes from the appliance or its handles. 1.4 During Cleaning and Maintenance •... - Page 9 electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the retailer who you purchased this product from.
-
Page 10: Installation And Preparation For Use
2. INSTALLATION AND do not use it and contact an authorised service person or qualified technician PREPARATION FOR USE immediately. WARNING : This appliance must be • Make sure that there are no flammable installed by an authorised service or combustible materials in the close person or qualified technician, according to vicinity, such as curtains, oil, cloth etc. -
Page 11: Electrical Connection And Safety
Installation in a wall unit WARNING: THE APPLIANCE MUST After making the electrical connections, BE EARTHED. insert the oven into the cabinet by pushing it forward. Open the oven door and insert • Before connecting the appliance to the 2 screws in the holes located on the oven power supply, the voltage rating of the frame. - Page 12 the authorised service person or a qualified electrician. • The power cable (H05VV-F) must be long enough to be connected to the appliance, even if the appliance stands on the front of its cabinet. • Ensure all connections are adequately tightened.
-
Page 13: Product Features

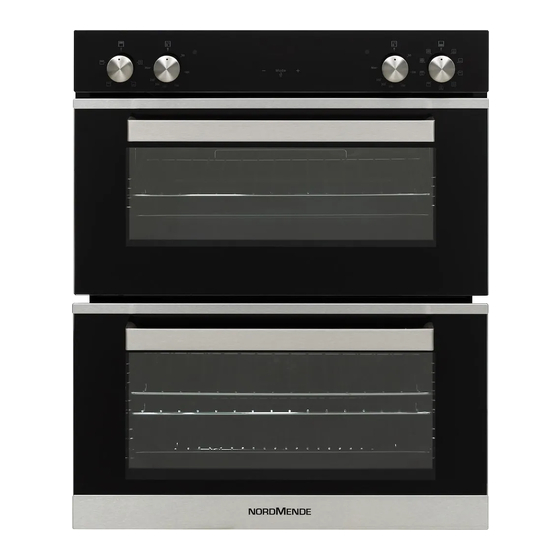

3. PRODUCT FEATURES Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below. List of Components 1. Control Panel 2. Top Oven Door Handle 3. Top Oven Door 4. Main Oven Door Handle 5. -
Page 14: Use Of Product
4. USE OF PRODUCT heating elements will start operating. The static cooking function emits heat, ensuring food is cooked evenly. This is ideal for 4.1 Oven Controls making pastries, cakes, baked pasta, Oven function control knob lasagne and pizza. Preheating the oven for 10 minutes is recommended and it is best Turn the knob to the corresponding symbol to use only one shelf at a time in this... -
Page 15: Use Of The Digital Touch Timer
Upper Heating food on all racks will cook evenly. It is recommended that you preheat the oven for Function: Switch on about 10 minutes. the UPPER function using the top oven function control knob. 3D Function: The The oven thermostat oven’s thermostat and and warning lights will warning lights will switch... - Page 16 press and hold the “MODE” button for 2 seconds. The desired operation can then be Function Description carried out. Audible warning time adjustment Auto cooking The audible warning time can be set to any time between “00:00” and “23:59” hours. Manual cooking The audible warning time is for warning purposes only.
- Page 17 When the timer reaches zero, the oven 3. Select the desired will switch off and an audible warning will sound. The symbol “A” will flash. Turn cooking time period both control knobs to the “0” position and using the “+” and “-” press any key on the timer to stop the keys.
-
Page 18: Accessories
• The accessories may deform with heat. 7. The current time Once they have cooled down, they will will reappear on recover their original appearance and the screen, and the performance. symbols “A”, and will remain illuminated. • Trays and wire grids can be positioned on any level from 1 to 4. -
Page 19: Cleaning And Maintenance
within a deep tray. It is recommended to use this accessory for grilling steaks, meatballs and similar food. WARNING Place the grid to any corresponding rack in the oven cavity correctly and push it to the end. The Deep Tray The deep tray is best used for cooking stews. - Page 20 • The inside of enamelled ovens are best cleaned while the oven is warm. • Wipe the oven with a soft cloth soaked in soapy water after each use. Then, wipe the oven over again with a wet cloth and dry it. •...
-
Page 21: Maintenance
by pulling it towards you. 3. Place the glass under the location bracket (x) in the direction of C. Removal of the Wire Shelf To remove the wire rack, pull the wire rack as shown in the figure. After releasing it from the clips (a), lift it up. -
Page 22: Troubleshooting&Transport
illumination. 6. TROUBLESHOOTING&TRANSPORT 6.1 Troubleshooting If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician. Problem Possible Cause Solution Check whether there is power supplied. Oven does not switch Power is switched off. -
Page 23: Technical Specifications
7. TECHNICAL SPECIFICATIONS 7.1 Energy Fiche Brand Model DOUC425IX Type of Oven ELECTRIC Mass 43,0 Energy Efficiency Index - conventional 93,9 Energy Efficiency Index - fan forced Energy Class Energy consumption (electricity) - conventional kWh/cycle 0,67 Energy consumption (electricity) - fan forced... - Page 24 52202020...
