Summary of Contents for Nordmende SOC315IX

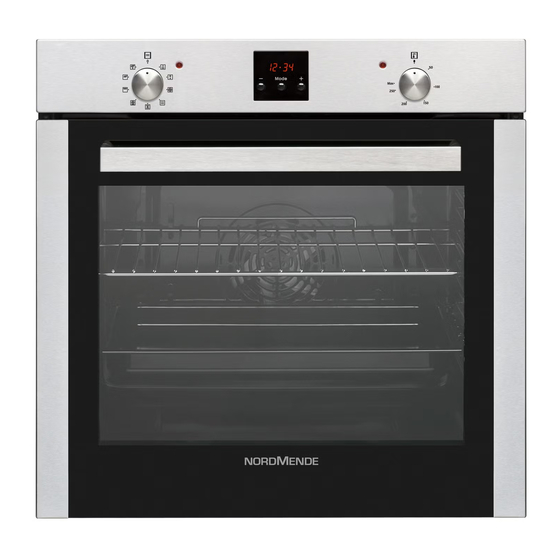

- Page 1 Built-in Oven / User Manual SOC315IX SOC315BL...
- Page 2 Thank you for choosing this product. This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference. Icon Type Meaning...
-
Page 3: Table Of Contents
CONTENTS 1.SAFETY INSTRUCTIONS ....................4 1.1 General Safety Warnings ....................4 1.2 Installation Warnings ......................6 1.3 During Use ........................7 1.4 During Cleaning and Maintenance .................8 2.INSTALLATION AND PREPARATION FOR USE ............10 2.1 Instructions for the Installer ..................10 2.2 Installation of the Oven ....................10 2.3 Electrical Connection and Safety.................. -
Page 4: Safety Instructions
1. SAFETY INSTRUCTIONS • Carefully read all instructions before using your appliance and keep them in a convenient place for reference when necessary. • This manual has been prepared for more than one model therefore your appliance may not have some of the features described within. - Page 5 the oven. • Handles may get hot after a short period during use. • Do not use harsh abrasive cleaners or scourers to clean the oven door glass and other surface. They can scratch the surfaces which may result in shattering of the door glass or damage to surfaces.
-
Page 6: Installation Warnings
heating a room. • Do not use the oven door handles to lift or move the appliance. • All possible measures have been taken to ensure your safety. Since the glass may break, care should be taken while cleaning to avoid scratching. Avoid hitting or knocking the glass with accessories. -
Page 7: During Use
• Any materials (i.e. cabinets) around the appliance must be able to withstand a minimum temperature of 100°C. 1.3 During Use • When you first use your oven you may notice a slight smell. This is perfectly normal and is caused by the insulation materials on the heater elements. -
Page 8: During Cleaning And Maintenance
• Do not place anything on the oven door when it is open. This could unbalance the oven or damage the door. • Do not place heavy or flammable items (e.g. nylon, plastic bag, paper, cloth, etc.) into the drawer. This includes cookware with plastic accessories (e.g. - Page 9 Disposal of your old machine This symbol on the product or on its packaging indicates that this product should not be treated as household waste. Instead it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
-
Page 10: Installation And Preparation For Use
2. INSTALLATION AND do not use it and contact an authorised service person or qualified technician PREPARATION FOR USE immediately. WARNING : This appliance must be • Make sure that there are no flammable installed by an authorised service or combustible materials in the close person or qualified technician, according to vicinity, such as curtains, oil, cloth etc. -
Page 11: Electrical Connection And Safety
Installation in a wall unit After making the electrical connections, appliance’s power rating (also indicated insert the oven into the cabinet by pushing on the identification plate). it forward. Open the oven door and insert • During installation, please ensure 2 screws in the holes located on the oven that isolated cables are used. - Page 12 • Fix the supply cable in the cable clamp and then close the cover. • The terminal box connection is placed on the terminal box. Blue Brown Yellow+Green EN - 12...
-
Page 13: Product Features
3. PRODUCT FEATURES Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below. List of Components 1. Control Panel 2. Oven Door Handle 3. Oven Door Control Panel 4. Timer 5. -
Page 14: Use Of Product
4. USE OF PRODUCT heating elements will start operating. The static cooking function emits heat, ensuring even cooking of food. This is ideal for 4.1 Oven Controls making pastries, cakes, baked pasta, Oven function control knob lasagne and pizza. Preheating the oven for 10 minutes is recommended and it is best Turn the knob to the corresponding symbol to use only one shelf at a time in this... -
Page 15: Use Of The Digital Timer
Faster Grilling Function Description Function: The oven’s thermostat and Auto cooking warning lights will switch on, and the grill and upper heating Manual cooking elements will start operating. This function is used for faster Cooking time grilling and for grilling food with a larger surface area, such as meat. - Page 16 the temperature using the control knobs. 3. After a few seconds, the dot will 2. Press “MODE” until stop flashing and will you see “dur” and remain illuminated. symbol on the display screen. The symbol “A” will flash. Audible warning time adjustment 3.
-
Page 17: Accessories
6. Select the desired finishing time using the 4. The current time “+” and “-” keys. will reappear on the screen, the symbols “A”, will remain illuminated. 7. Add the cooking period to the current When the timer reaches zero, the oven time of day. -
Page 18: Cleaning And Maintenance
The Grill Pan and Handle Set The Water Collector The grill pan set is best used for grilling In some cases of cooking, condensation steaks and similar foods. may appear on the inner glass of the oven door. This is not a product malfunction. WARNING: The grill pan has a detachable handle. - Page 19 of your appliance. The excess grease can be removed with a soft cloth or sponge soaked in hot water, • Should any liquids overflow, clean them and the cleaning cycle can be carried out as immediately to avoid parts becoming described above.
-
Page 20: Maintenance
1. Push the glass towards and under the fully closed position, and remove the door location bracket (y), in the direction of B. by pulling it towards you. 3. Place the glass under the location bracket (x) in the direction of C. Removal of the Wire Shelf To remove the wire rack, pull the wire rack as shown in the figure. -
Page 21: Troubleshooting&Transport
6. TROUBLESHOOTING&TRANSPORT 6.1 Troubleshooting If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician. Problem Possible Cause Solution Check whether there is power supplied. Oven does not switch Power is switched off. -
Page 22: Technical Specifications
7. TECHNICAL SPECIFICATIONS 7.1 Energy Fiche Brand SOC315IX Model SOC315BL Type of Oven ELECTRIC Mass 32,0(+/-2) Energy Efficiency Index - conventional 112,8 Energy Efficiency Index - fan forced 106,0 Energy Class Energy consumption (electricity) - conventional kWh/cycle 0,99 Energy consumption (electricity) - fan forced... - Page 23 52202020...
