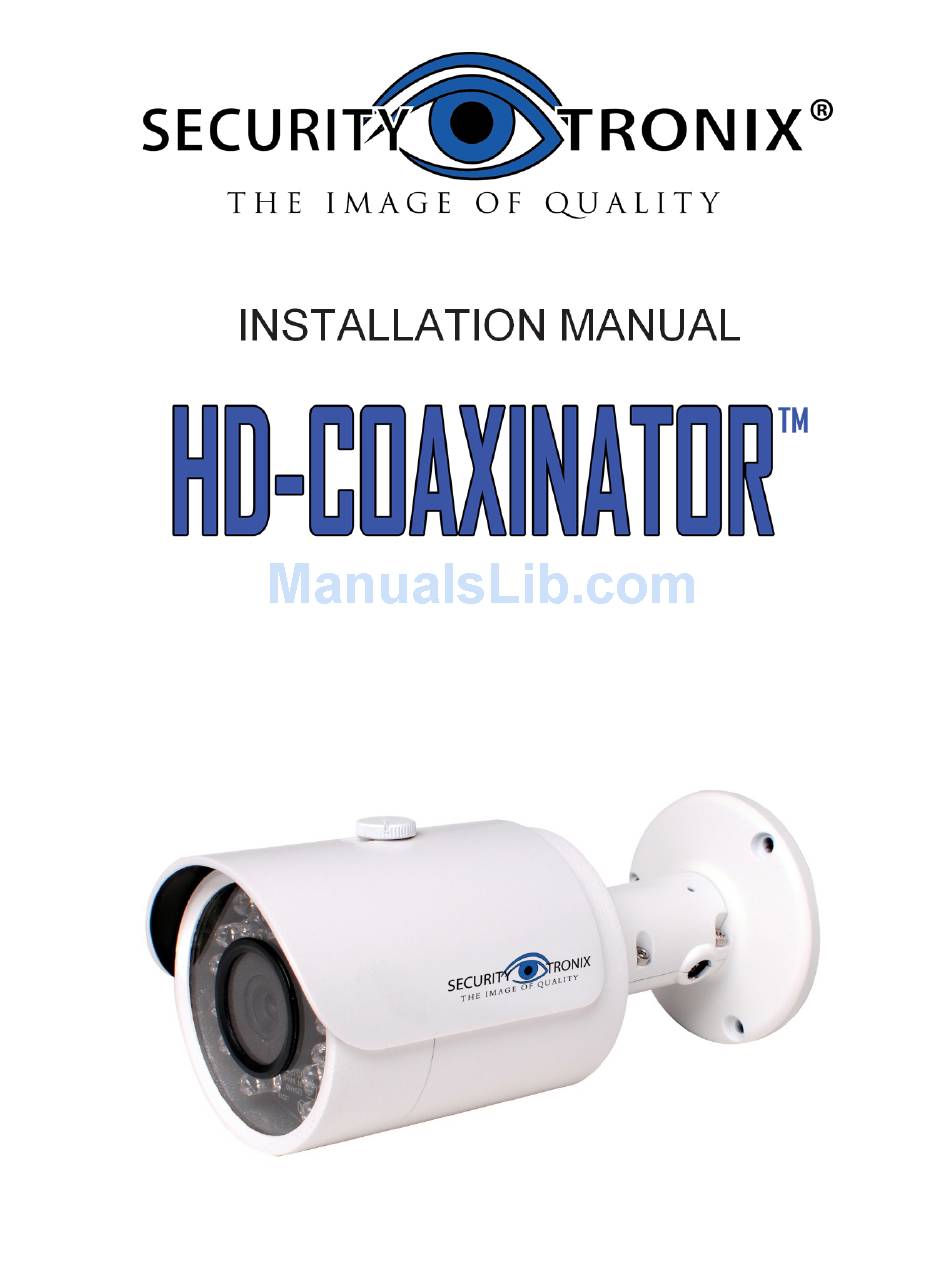

- Page 1 ST-HD-BT3.6-1MP IR Color HD-CVI Camera V1.0 12/29/14...
-
Page 2: Package Contents

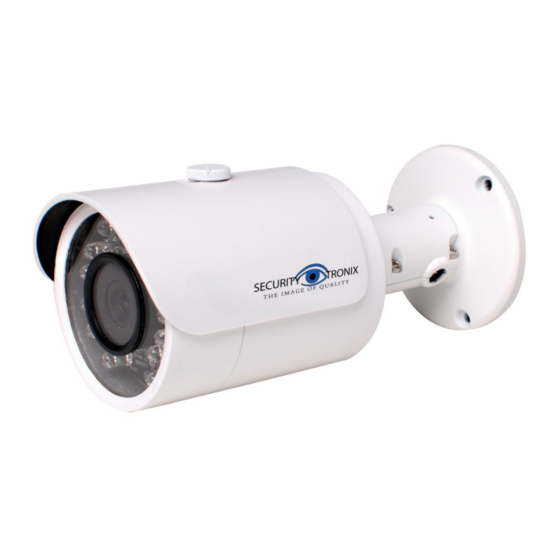

ST-PS12VDC1A. PRODUCT DESCRIPTION The ST-HD-BT3.6-1MP is a high-definition camera designed around a 1/3” Color 1 megapixel CMOS, 24 IR LEDs providing infrared capability up to 65 feet, and a 3.6mm lens. The ability to send HD video over coaxial cable makes the ST-HD-BT3.6-1MP a cost effective high-definition surveillance solution for any budget. -
Page 3: Installation And Operation
INSTALLATION AND OPERATION 1. UNPACKING and HANDLING Each unit is shipped assembled and factory tested. Ensure that all accessories are removed from the container before discarding packing material 2. MECHANICAL INSPECTION Inspect the front and rear of the equipment for shipping damage. Make sure the equipment is clean, and no connectors are broken, damaged, or loose. - Page 4 TROUBLESHOOTING a. No picture after applying power – (i) check all plugs and cables are securely connected to the proper connectors; (ii) ensure your power supply is providing the correct voltage and current. b. The picture has ripples – (i) check to see if the power supply is experiencing AC ripple, if so a filter may be required;...
