Operation
HVLP EDGE Gun
For the application of architectural paints and coatings. For professional use only.
Model 257827, 24Y630
The HVLP Edge gun is not intended to be used on an external compressor.
Maximum Fluid Working Pressure: 50 psi (0.35 MPa, 3.5 bar)
Maximum Air Working Pressure: 10 psi (0.07 MPa, 0.7 bar)
Important Safety Instructions
Read all warnings and instructions in this manual and related manuals.
Be familiar with the controls and the proper usage of the equipment.
Save these instructions.
ti13819b
313754E
EN
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Graco HVLP EDGE 24Y630
Summary of Contents for Graco HVLP EDGE 24Y630

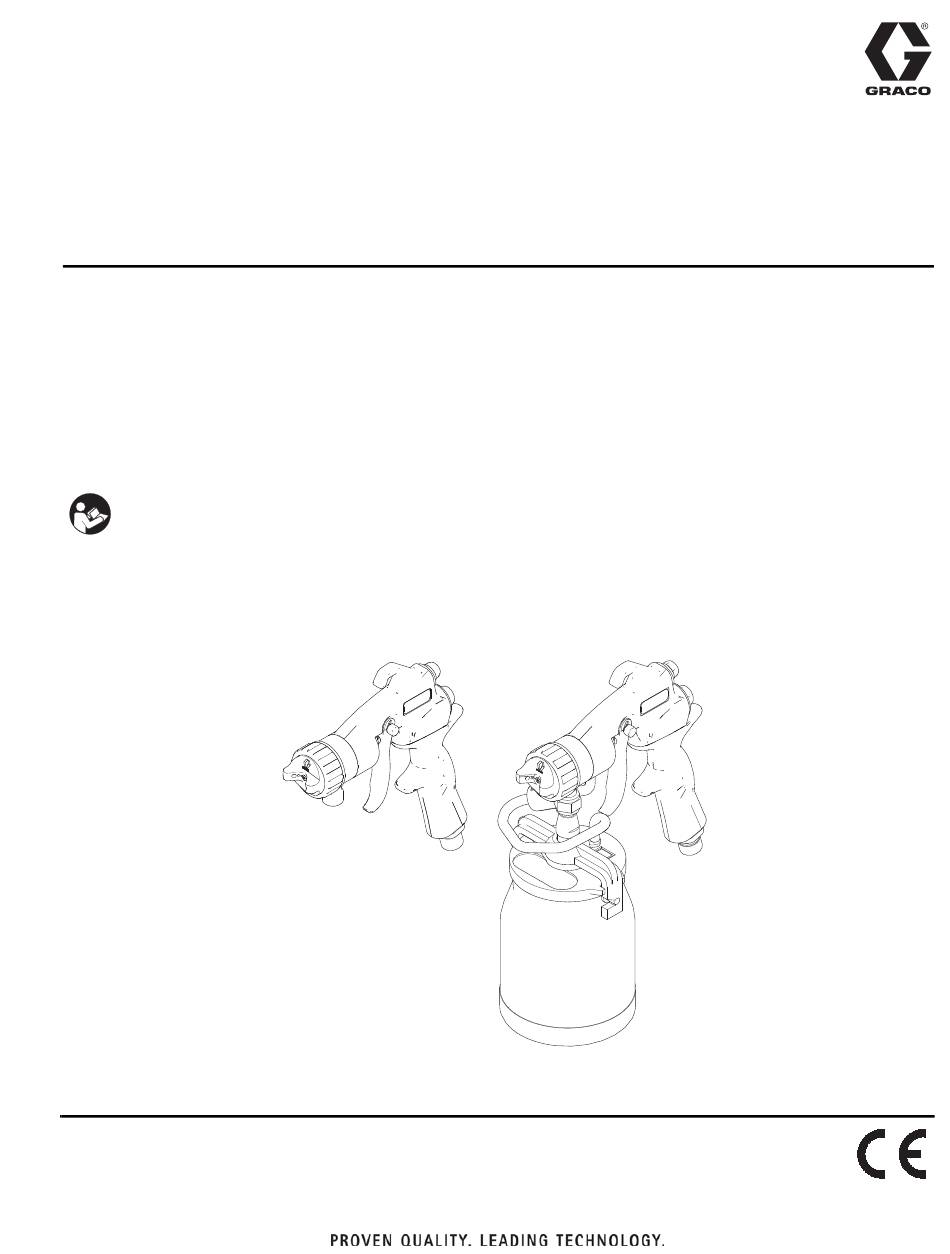

- Page 1 Operation 313754E HVLP EDGE Gun For the application of architectural paints and coatings. For professional use only. Model 257827, 24Y630 The HVLP Edge gun is not intended to be used on an external compressor. Maximum Fluid Working Pressure: 50 psi (0.35 MPa, 3.5 bar) Maximum Air Working Pressure: 10 psi (0.07 MPa, 0.7 bar) Important Safety Instructions Read all warnings and instructions in this manual and related manuals.
-
Page 2: Table Of Contents
Notes ........13 Graco Standard Warranty ....14... - Page 3 Warnings Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama- tion point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these symbols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of this manual where applicable..
- Page 4 Warnings WARNING PRESSURIZED ALUMINUM PARTS HAZARD Use of fluids that are incompatible with aluminum in pressurized equipment can cause serious chemical reaction and equipment rupture. Failure to follow this warning can result in death, serious injury, or prop- erty damage. •...
-
Page 5: Component Identification
Component Identification Component Identification ti13820a Pressure Relief Procedure Component Siphon Cup Follow the Pressure Relief Procedure whenever you see this symbol. Check Valve Air Cap Air Nozzle Fluid Needle Trigger Slide This equipment stays pressurized until pressure is Air Inlet manually relieved. - Page 6 Component Identification Setup Make sure sprayer is turned off and unplugged from power source. Refer to your sprayer instruction manual for sprayer set up. ti12795a Connect Gun to Siphon Cup Optional Trigger Stop Adjustment (257086) 1. Attach air hose from sprayer to Flow and pattern size is determined by the trigger stop.
-
Page 7: Cleaning Spray Gun
Component Identification Cleaning Spray Gun 9. Assemble gun. Wipe gun with solvent or water dampened rag. 1. Relieve the pressure, page 5. ti13850a 1. Remove siphon cup. Empty spray Check Valve Troubleshooting material from siphon cup. Recommended if fluid is in the check valve. Poppet Valve Quick Clear 1. -
Page 8: Needle Replacement
Needle Replacement Needle Replacement Removal 1. Relieve pressure. 2. Remove air cap (1). 3. Push trigger slide (4) over to NEEDLE REMOVAL position (D) shown on page 2. 4. Remove fluid nozzle (2). 5. Pull needle (3) out. Installation 1. Insert needle (3). 2. -
Page 9: Troubleshooting
Troubleshooting Troubleshooting 1. Follow Pressure Relief Procedure, page 5, before checking or repairing gun. 2. Check all possible problems and causes before dis- assembling gun. Problem Cause Solution Orange peel finish - Paint Pain droplets too large • Maintain proper spraying distance, page 6. surface not smooth •... - Page 10 Troubleshooting Problem Cause Solution No or slow fluid flow, intermit- Wrong size fluid set being used Select proper fluid set for fluid being sprayed, tent spray, or fluttering spray page 8 Gun fluid nozzle blocked by dried Clean or replace fluid nozzle paint or damaged Cup or pressure pot cover not tight Tighten cover or replace gasket...
-
Page 11: Parts
Parts Parts ti13822b Ref. Part Description Qty. Ref. Part Description Qty. 277950 HANDLE, gun 256858 BODY, gun 196464 COUPLER, male 188493 PACKING, u-cup, gun 256957 CHECK VALVE, complete, includes 257108 HOUSING, nozzle 29a, 29b*, 29c, 29d 192348 NUT, head FITTING, adapter 256960 KIT, includes 8a, 8b, 8c, 8d 29b*... -
Page 12: Technical Data
Technical Data Technical Data HVLP EDGE Gun Metric Maximum fluid working pressure 50 psi 0.35 MPa, 3.5 bar Maximum inlet fluid pressure 10 psi 0.07 MPa, 0.7 bar Noise (dBa) Sound power* Less than 65.0 Sound pressure Less than 65.0 Inlet Sizes Air inlet size Quick-disconnect... -
Page 13: Notes
Notes Notes 313754E... -
Page 14: Graco Standard Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
